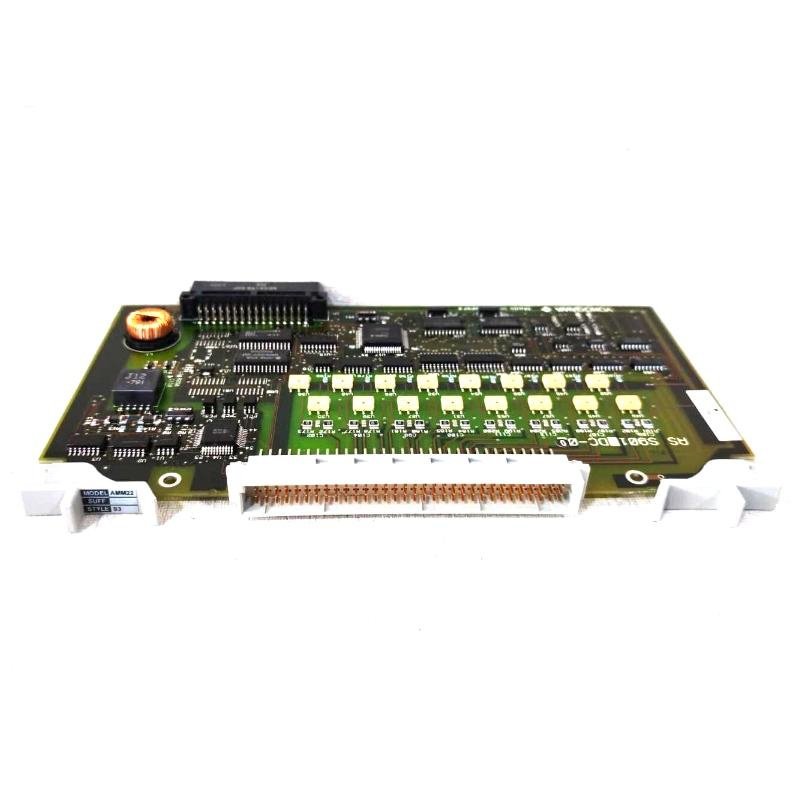

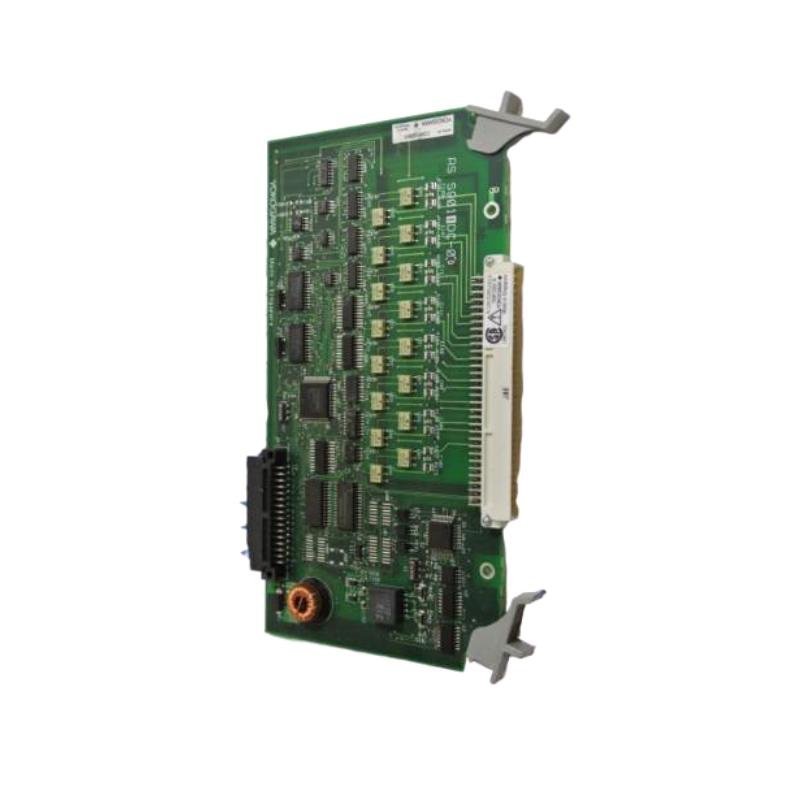

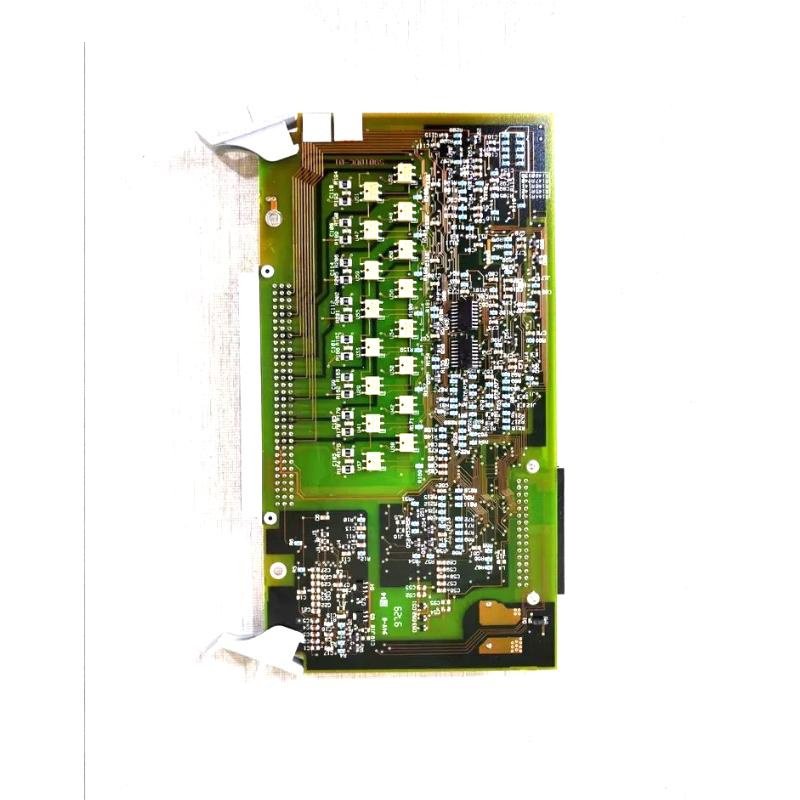

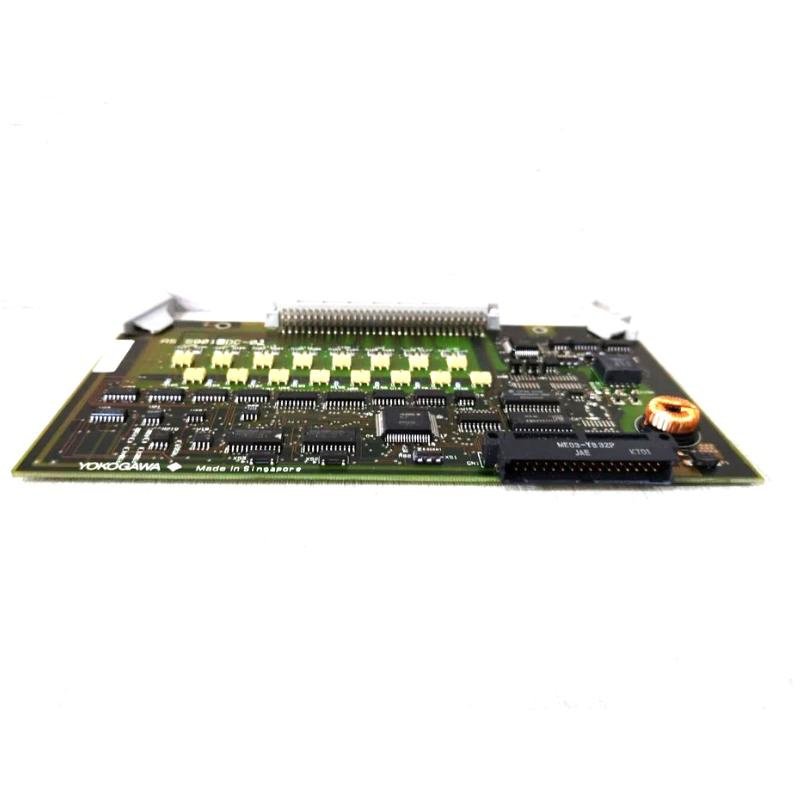

Yokogawa AMM22-S3 Multiplexer Module

The Yokogawa AMM22-S3 Multiplexer Module is a versatile and high-density analog input module designed for integration with Yokogawa’s CENTUM VP and Stardom control systems. It supports the acquisition of multiple analog signals, including voltage and current inputs, for efficient and reliable monitoring of process variables. The module is optimized for large-scale automation environments where precise signal processing, high channel count, and system scalability are essential.

Key Features

• Multi-Signal Support–Handles both voltage and current input signals for versatile data acquisition

• High Channel Density–Accommodates 16 input channels in a compact form factor

• High Accuracy–Provides 16-bit resolution for precise analog-to-digital conversion

• System Integration–Seamless compatibility with Yokogawa CENTUM VP and Stardom platforms

• Hot Swappable–Allows safe module replacement without system downtime

• Self-Diagnostic Capabilities–Monitors module health and input signal integrity

• Input Isolation–Ensures noise immunity and protects system electronics

Technical Specifications

Dimensions and Weight

Electrical Characteristics

Environmental Characteristics

System Compatibility

Industry Applications

• Oil & Gas–Multivariable analog signal acquisition for production monitoring

• Chemical Processing–Integration of analog sensors in process control loops

• Power Generation–Monitoring temperature, pressure, and flow sensor outputs

• Water and Wastewater–Accurate analog input collection for process regulation

• Pharmaceutical–Supports strict process control with high-resolution input data

The Yokogawa AMM22-S3 Multiplexer Module combines high-density analog input capability with precise measurement and system-level diagnostics, making it a core component for demanding process automation and monitoring environments.
