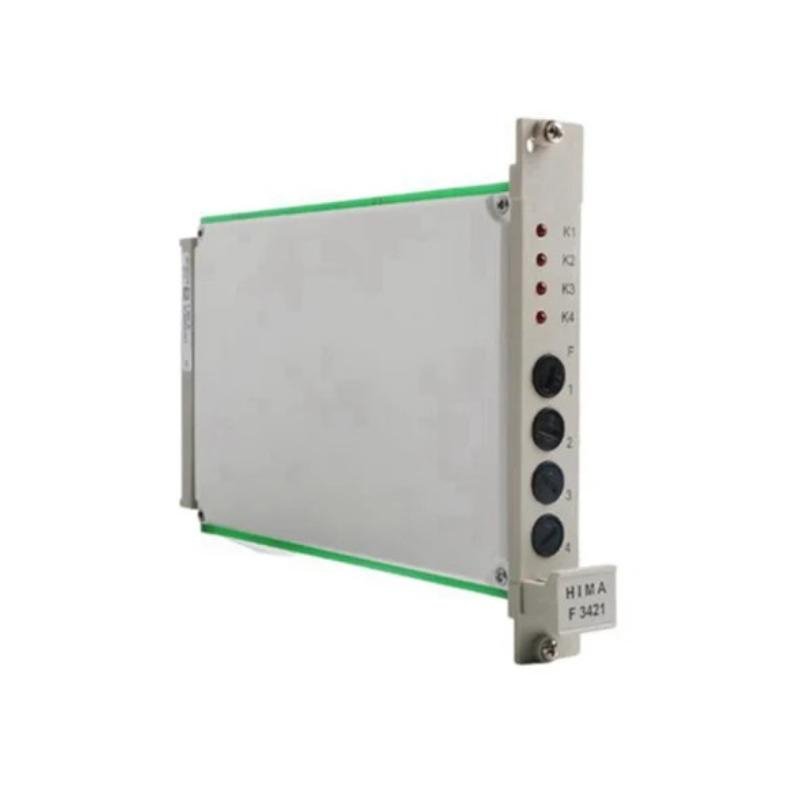

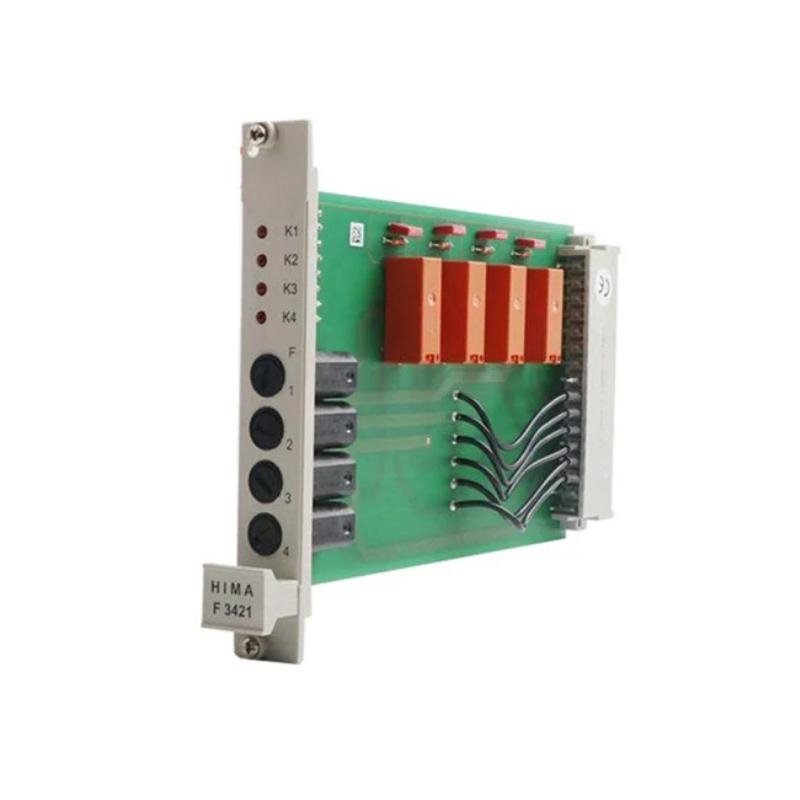

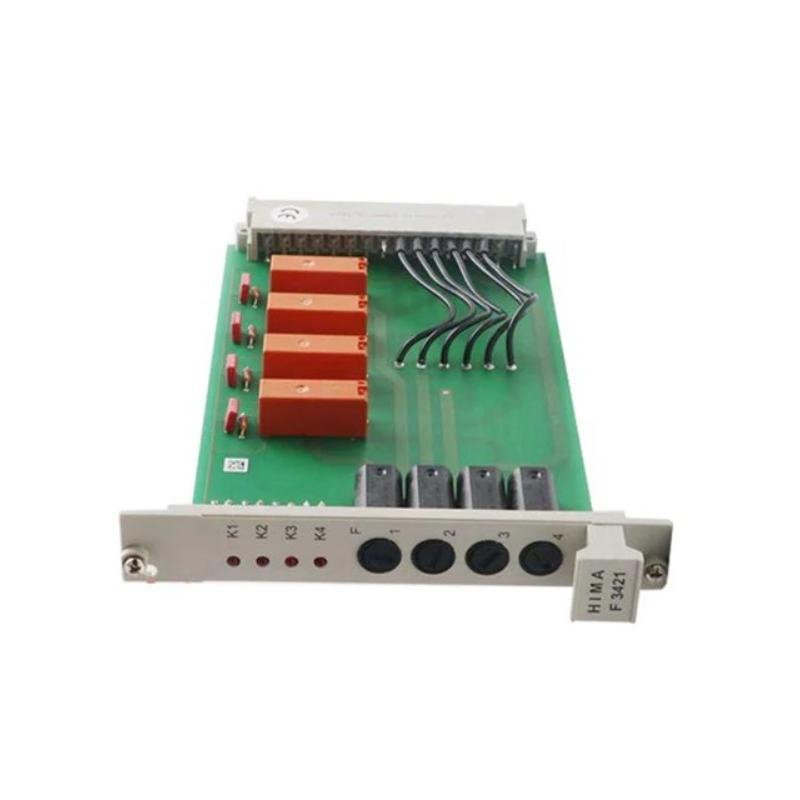

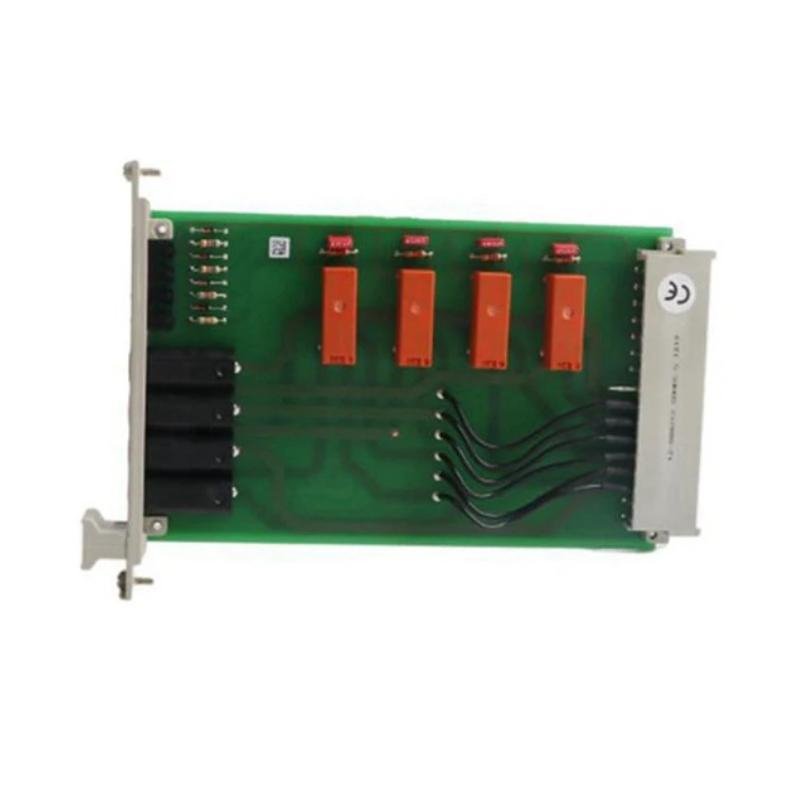

Hima F3421 Relay Amplifier Module
Manufacturer: HIMA
Product Number: F3421
Category: Relay Amplifier Module
System Compatibility: HIMA safety-related systems
Function: Provides high-reliability signal amplification for safety-critical industrial applications
Product Description
The HIMA F3421 Relay Amplifier Module is a critical component used in safety-related applications within industrial automation systems. Engineered by HIMA, a global leader in safety automation, this module provides high-reliability signal amplification and galvanic isolation between field devices and control systems. It plays a vital role in processing and strengthening signals for accurate and safe system operation, especially in environments requiring high-integrity safety controls.
The F3421 is optimized for use in HIMA’s HIQuad and HIMax safety systems, making it an ideal solution for applications in the oil & gas, chemical, power generation, and transportation industries.
Key Features
-
Reliable Relay Amplification: Amplifies input signals with high fidelity for consistent control responses
-
Galvanic Isolation: Electrically isolates input and output for improved system safety and integrity
-
DIN Rail Mounting: Easy integration into existing cabinets and control panels
-
LED Indicators: Visual feedback for power and signal status
-
Safety System Integration: Seamless compatibility with HIMA safety platforms
-
Rugged Industrial Design: Operates reliably in harsh industrial environments
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 20 x 188 x 128mm |
| Weight | 0.18 kg |
Module Information
| Item | Specification |
|---|---|
| Model Number | F3421 |
| Module Type | Relay Amplifier Module |
| Mounting | DIN Rail |
| Channels | 1 Relay Output Channel |
Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Input Voltage Range | 20–30 V DC |
| Output Type | Relay Contact |
| Contact Rating | Max. 2 A at 30 V DC / 250 V AC |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +85°C |
| Humidity | 10% to 95% RH, non-condensing |
| Protection Class | IP20 |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | HIMA HIMax, HIQuad Safety Systems |
| Diagnostic Capability | Via System Monitoring |
| Compliance Standards | IEC 61508, SIL 3, EN 50156 |
Industry Applications
-
Oil & Gas: Used in ESD (Emergency Shutdown) and F&G (Fire and Gas) safety systems
-
Chemical Processing: Ensures safe handling of hazardous processes and materials
-
Power Generation: Provides relay-based output control for turbine and generator protection
-
Transportation: Enhances fail-safe control in railway signaling and safety automation
-
Pharmaceuticals: Supports GMP-compliant safety and control applications
The HIMA F3421 Relay Amplifier Module is designed to deliver reliable signal amplification and safe control output in demanding industrial applications. Its integration with HIMA safety systems and compliance with international safety standards make it a trusted choice for critical infrastructure protection.
