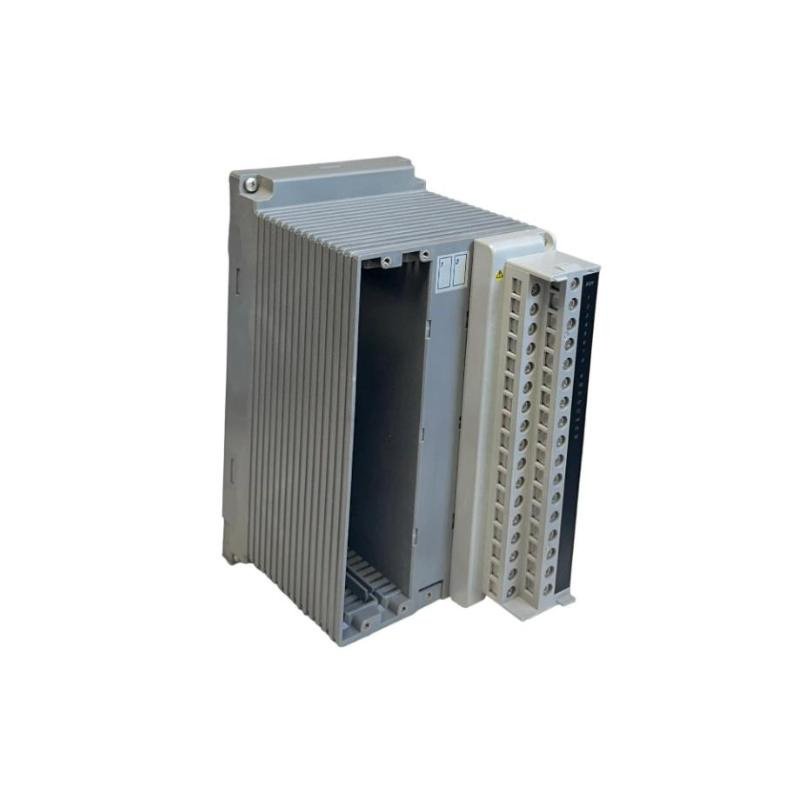

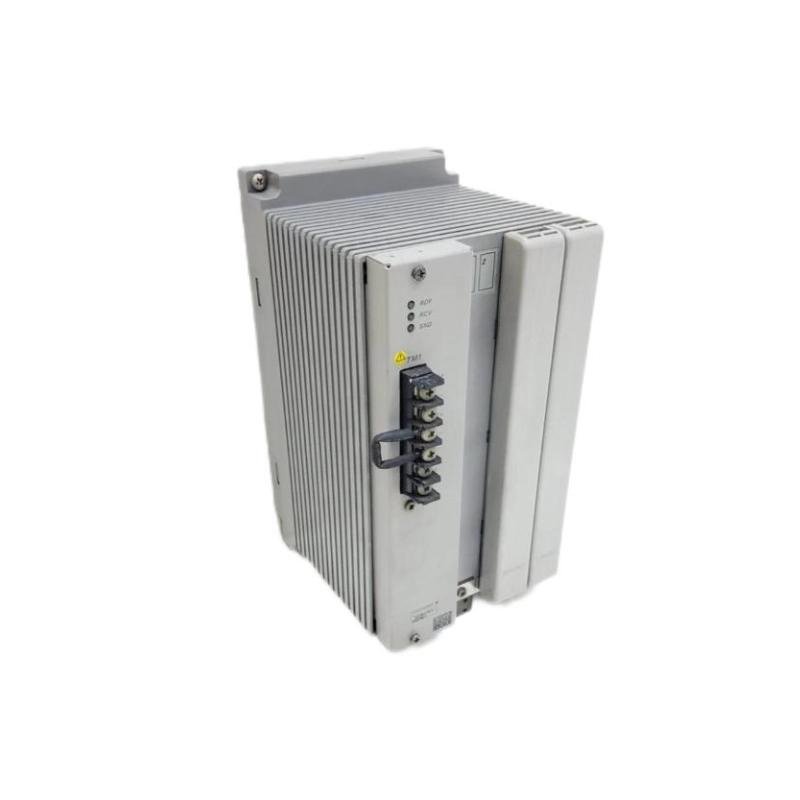

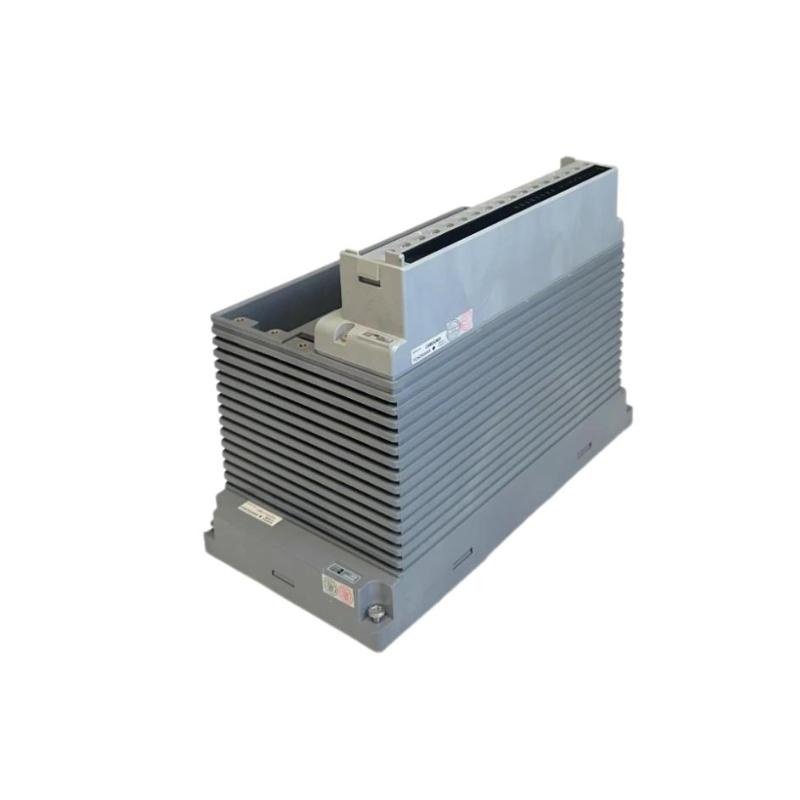

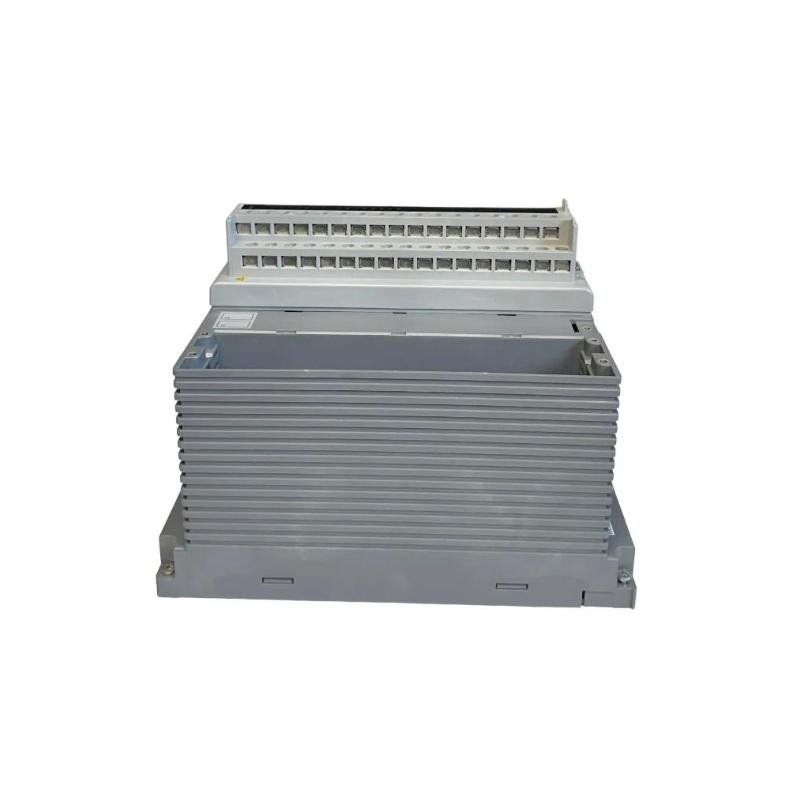

Yokogawa AMN12T-S2 Analog I/O Module High Speed Rack
Manufacturer: Yokogawa
Product Number: AMN12T-S2
Category: Analog I/O Module High-Speed Rack (CENTUM CS, CS 3000 DCS)
System Compatibility: Yokogawa CENTUM CS and CS 3000 DCS
Function: Precision-engineered mounting rack for high-speed analog I/O modules
Product Description
The Yokogawa AMN12T-S2 Analog I/O Module High-Speed Rack is a precision-engineered mounting rack designed to accommodate high-speed analog I/O modules used in Yokogawa’s CENTUM CS and CENTUM CS 3000 Distributed Control Systems (DCS). With its ability to support rapid signal transmission and reliable electrical interfacing, the AMN12T-S2 ensures high-speed data acquisition and control in demanding process environments. This rack enables seamless integration of high-performance modules, providing a robust infrastructure for time-critical applications.
Key Features
-
High-Speed Signal Support–Designed for high-speed analog I/O modules, ensuring low-latency data transmission
-
Increased System Throughput–Enhances system responsiveness in applications requiring fast signal processing
-
Modular and Scalable–Supports multiple I/O modules for flexible system expansion
-
Industrial Durability–Built to withstand harsh operating environments with superior reliability
-
Backplane Connectivity–Provides stable and efficient communication between I/O modules and the control processor
-
Optimized for Yokogawa DCS–Fully compatible with CENTUM CS and CS 3000 series systems
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 125 x 130 x 248 mm |
| Weight | 2 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Module Slots | Up to 8 high-speed analog I/O modules |
| Bus Type | High-speed internal backplane |
| Power Distribution | Via backplane from system power supply |
| Grounding | Integrated common grounding path |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration Resistance | 10–60 Hz, 0.2 mm amplitude |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Modules | Yokogawa high-speed analog I/O modules (e.g., AMM42T) |
| Supported Systems | CENTUM CS / CS 3000 Distributed Control Systems |
Industry Applications
-
High-Speed Manufacturing Lines–Supports rapid analog signal updates for time-critical control loops
-
Power Generation–Ideal for real-time monitoring and control of turbines and boilers
-
Petrochemical Plants–Enables high-speed analog data collection in complex and dynamic operations
-
Semiconductor Production–Meets the stringent speed and accuracy demands of advanced process control
-
Research Facilities–Facilitates fast and reliable signal acquisition in precision instrumentation systems
The Yokogawa AMN12T-S2 Analog I/O Module High-Speed Rack is a vital platform for fast-response process control applications. Its high-speed capabilities, industrial-grade construction, and seamless integration with Yokogawa systems make it the ideal choice for supporting mission-critical analog I/O operations in modern control environments.
