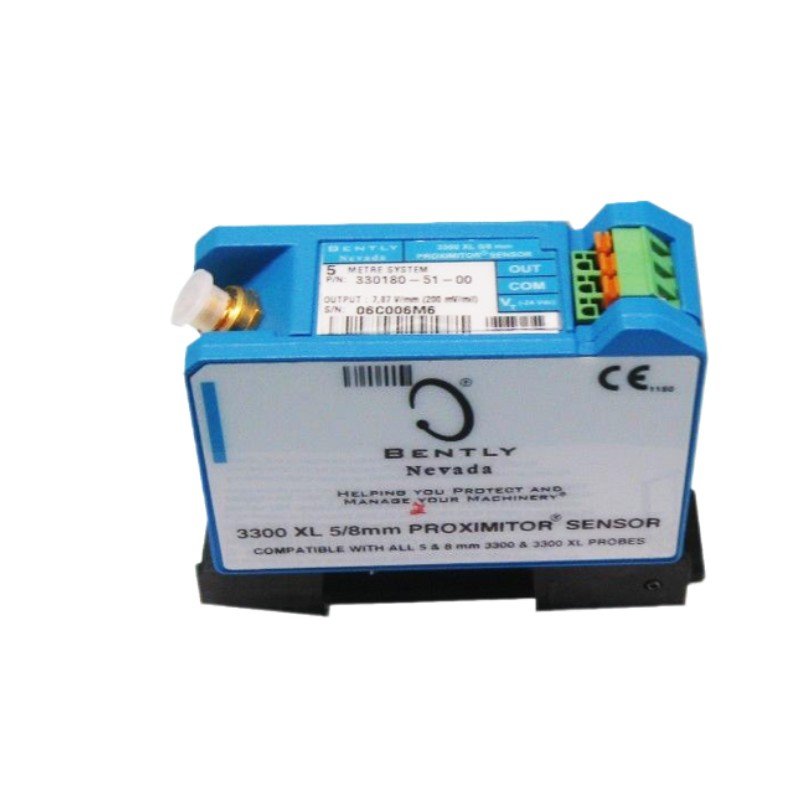

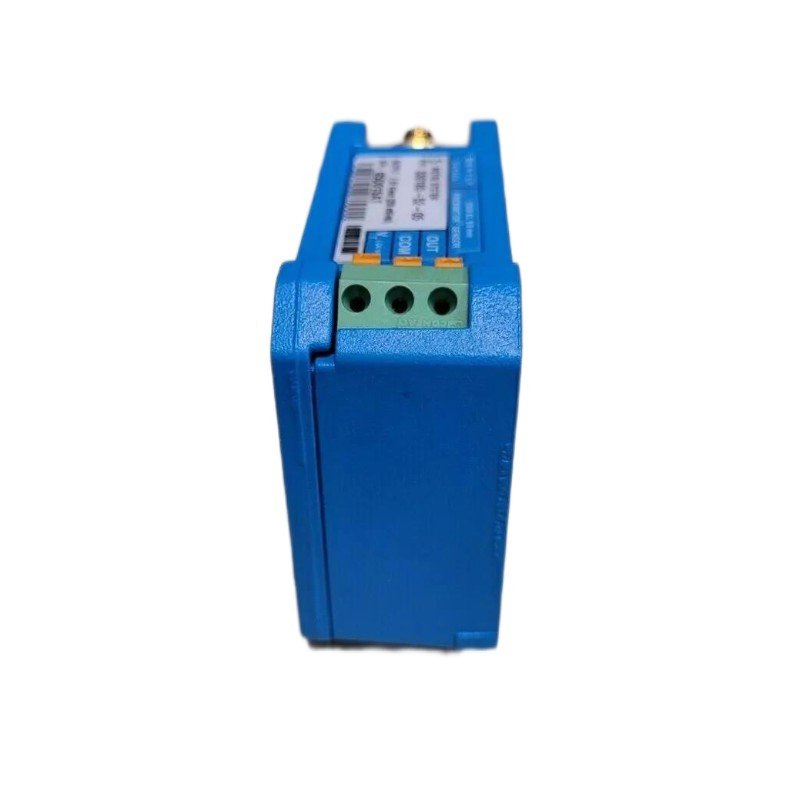

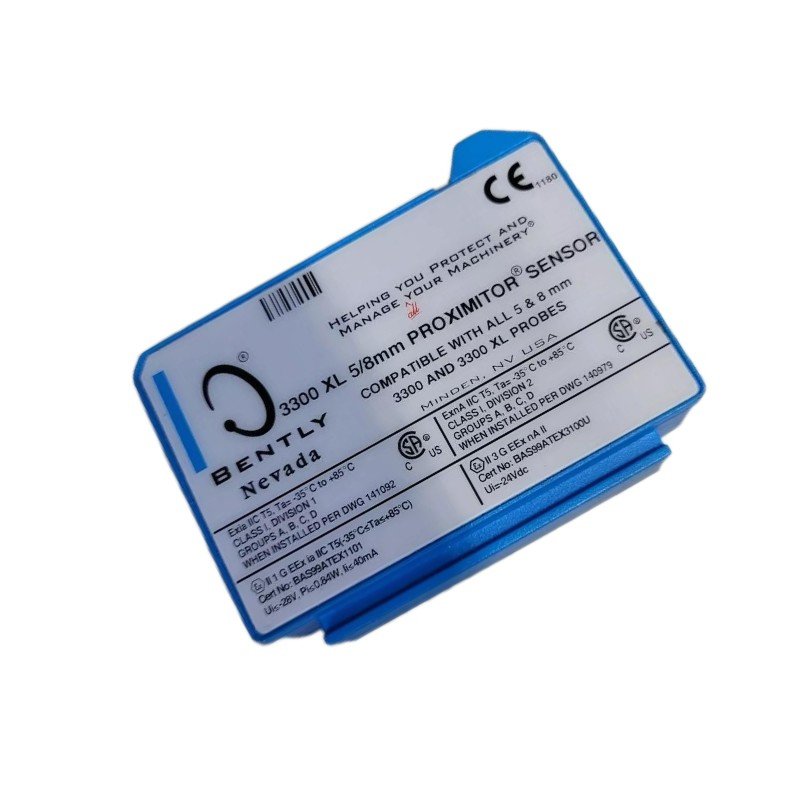

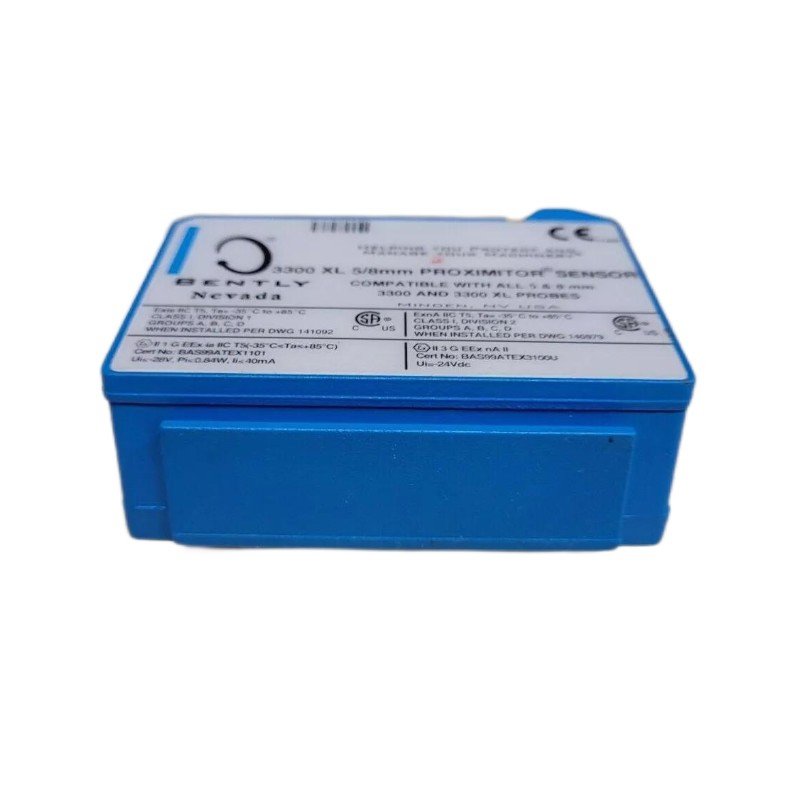

Bently Nevada 330180-51-CN 3300 XL 8mm Proximitor Sensor
Manufacturer: Bently Nevada
Product Number: 330180-51-CN
Category: 3300 XL 8mm Proximitor Sensor
Sensing Range: 8 mm
Technology: Eddy current
Application: Measuring position and vibration of rotating machinery
Product Description
The Bently Nevada 330180-51-CN is an 8mm proximitor sensor from the 3300 XL series by GE Bently Nevada, utilizing eddy current technology to measure the position and vibration of rotating machinery. It is a non-contact sensor widely used for real-time monitoring of critical equipment such as turbines, compressors, pumps, and motors. Designed for integration with Bently Nevada’s 3300 XL monitoring systems, this sensor provides high accuracy and durability, making it ideal for predictive maintenance and process optimization in industrial settings.
The 330180-51-CN proximitor sensor is engineered to operate reliably under harsh environmental conditions, offering precise displacement detection in high-speed and high-precision machinery, contributing to enhanced operational efficiency and reduced downtime.
Key Features
-
Non-contact Eddy Current Measurement: Ensures wear-free measurement of shaft displacement, promoting longevity and reducing maintenance.
-
High Precision: Provides micron-level resolution, suitable for high-speed, high-precision machinery.
-
Environmental Resistance: Operates effectively in extreme conditions such as high temperatures, vibration, and electromagnetic interference.
-
Seamless System Integration: Fully integrates with Bently Nevada 3300 XL Proximitor monitoring systems for comprehensive asset health monitoring.
-
Durable Construction: Made with stainless steel housing and an IP67 rating, providing excellent protection against harsh industrial environments.
-
Easy Installation: Threaded body design with lock nuts offers flexible and secure installation in tight spaces.
Technical Specifications
Dimensions and Weight
| Item | Value |
|---|---|
| Dimensions | Total Length：5.0 meters |
| Weight | 0.7kg |
General Information
| Item | Specification |
|---|---|
| Model | 330180-51-CN |
| Manufacturer | Bently Nevada (GE) |
| Series | 3300 XL 8mm |
| Mounting Type | Threaded (3/8-24 UNF typical) |
| Operating Temperature | -35°C to +120°C |
| Storage Temperature | -50°C to +120°C |
| Protection Rating | IP67 |
| Housing Material | 304 Stainless Steel |
Performance Parameters
| Item | Specification |
|---|---|
| Measurement Principle | Eddy current non-contact displacement |
| Measurement Range | 0.25 mm to 2.00 mm (typical) |
| Linearity Error | ±1% of full scale |
| Sensitivity | 7.87 mV/μm (standard) |
| Frequency Response | 0 to 10 kHz |
| Resolution | ≤ 1 μm |
| Recommended Gap | 1.0 mm to 2.0 mm |
Electrical Specifications
| Item | Specification |
|---|---|
| Power Supply | Supplied via 3300 XL Proximitor module |
| Signal Output | Analog voltage output |
| Connector Type | BNC or TNC (depending on configuration) |
Industry Applications
The Bently Nevada 330180-51-CN Proximitor Sensor is widely utilized in various industries for real-time monitoring of critical rotating equipment. Some of the key applications include:
-
Power Generation: Monitors shaft displacement and vibration in steam turbines, ensuring operational efficiency and safety.
-
Oil & Gas: Enables predictive maintenance by continuously monitoring the condition of compressors, pumps, and other critical equipment.
-
Metallurgy & Steel Plants: Used in high-temperature environments to monitor rotating machinery, improving safety and uptime.
-
Wind Energy & Renewables: Protects wind turbine shafts and gearboxes by providing continuous monitoring, improving performance and extending lifespan.
-
Precision Manufacturing: Ensures high-precision feedback control in manufacturing machinery, optimizing performance and reducing downtime.
The Bently Nevada 330180-51-CN proximity sensor is an essential component in predictive maintenance systems, providing exceptional accuracy, durability, and seamless integration for critical machinery monitoring.
