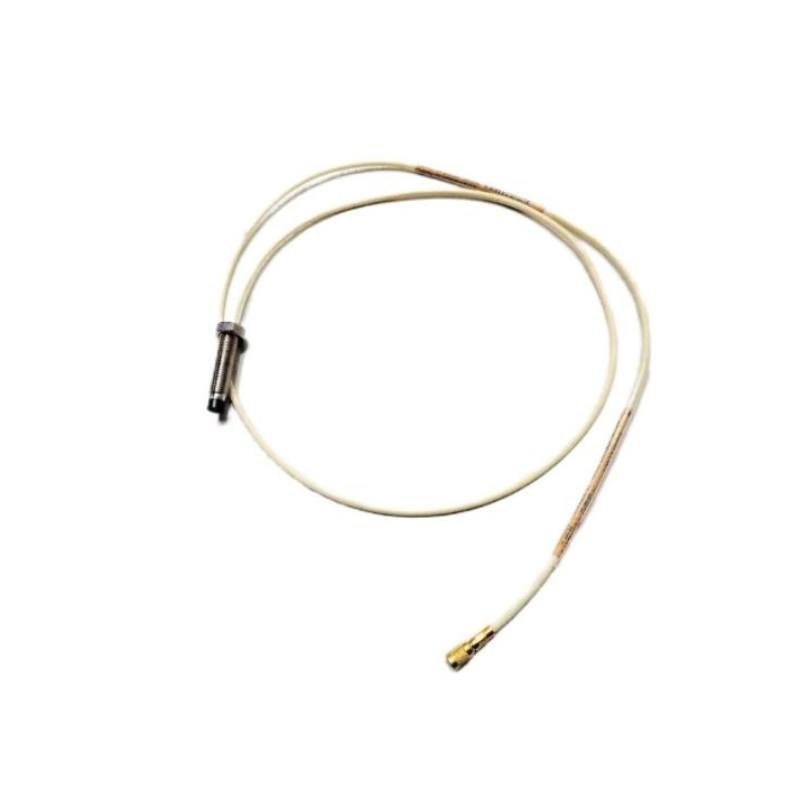

Bently Nevada 21504-000-016-10-02 7200 8 mm Standard Mount Probe
Manufacturer: Bently Nevada
Product Number: 21504-000-016-10-02
Category: 7200 Series 8 mm Standard Mount Probe
Probe Diameter: 8 mm
System Compatibility: Bently Nevada 7200 Series vibration and position monitoring systems
Application: Non-contact measurement of shaft position and vibration in rotating machinery
Product Description
The Bently Nevada 21504-000-016-10-02 is a high-performance 8 mm proximity probe that is part of the 7200 Series vibration and position monitoring systems. Designed for non-contact measurements, this probe is essential for assessing shaft position, vibration amplitude, and displacement in critical rotating machinery. With a 16-foot integral cable, this model is engineered to deliver precision in demanding industrial environments such as power generation, petrochemical, and oil & gas sectors.
Key Features
-
Eddy current sensing for accurate, non-contact vibration and position monitoring
-
8 mm probe tip for standard mount installations
-
Pre-calibrated with matched components to ensure accuracy and linearity
-
Compatible with 7200 Series Proximitor® sensors and extension cables
-
Rugged stainless steel construction for durability in harsh environments
-
Integral 16-foot (4.87 m) cable for streamlined installation
-
High EMI/RFI immunity and reliable signal integrity in noisy industrial settings
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Diameter | Total Length: 1.0 meter |
| Weight | 0.09 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| System Compatibility | Bently Nevada 7200 Series Proximitor® Systems |
| Sensitivity | 200 mV/mil (7.87 mV/μm) |
| Linear Range | 0.25–2.0 mm (10–80 mils) |
| Cable Length | 16 feet (4.87 meters), integral |
| Output Impedance | < 1 Ω |
| Frequency Response | 0 to 10 kHz |
| Interchangeability | ±5% with matched extension cable and Proximitor sensor |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -35°C to +120°C |
| Storage Temperature | -40°C to +125°C |
| Humidity | 95% RH, non-condensing |
| Ingress Protection | IP65 (sealed properly) |
| Vibration Resistance | 20 g, 10–2000 Hz |
System Configuration Notes
-
Requires a matched Proximitor® sensor and optionally an extension cable to complete the transducer system.
-
All components (probe, cable, Proximitor) must be calibrated as a matched set to ensure optimal system performance.
Industry Applications
-
Steam and Gas Turbines — Real-time shaft vibration and position monitoring
-
Centrifugal and Reciprocating Compressors — Condition-based maintenance
-
Industrial Pumps and Motors — Early detection of misalignment and imbalance
-
Refineries and Chemical Plants — Equipment protection and diagnostics
-
Power Generation Facilities — Monitoring of critical assets to prevent unplanned outages
The Bently Nevada 21504-000-016-10-02 probe is a proven solution in high-reliability environments where machinery protection and performance diagnostics are mission-critical.
