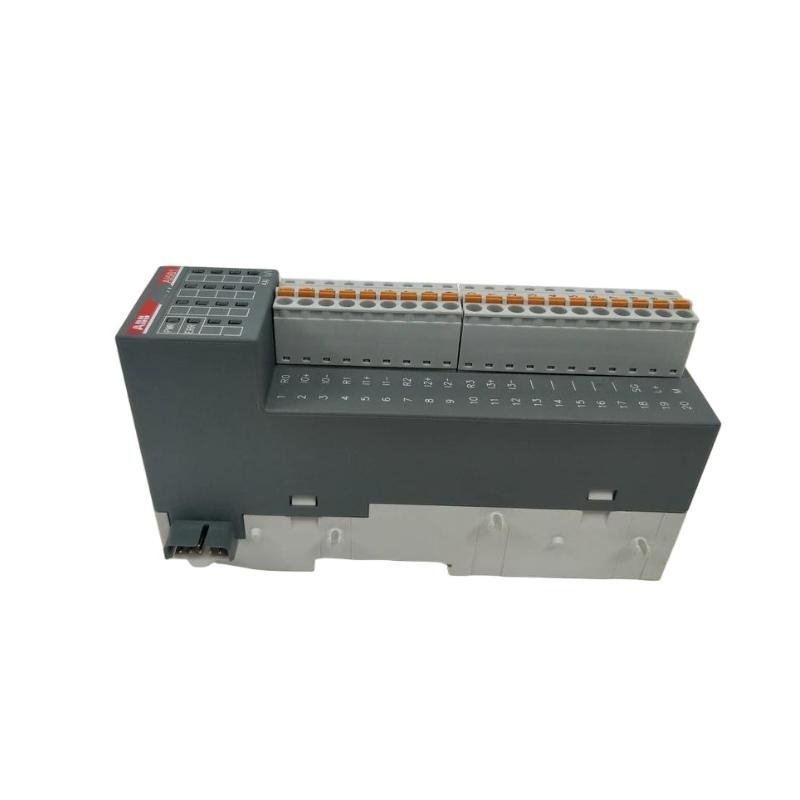

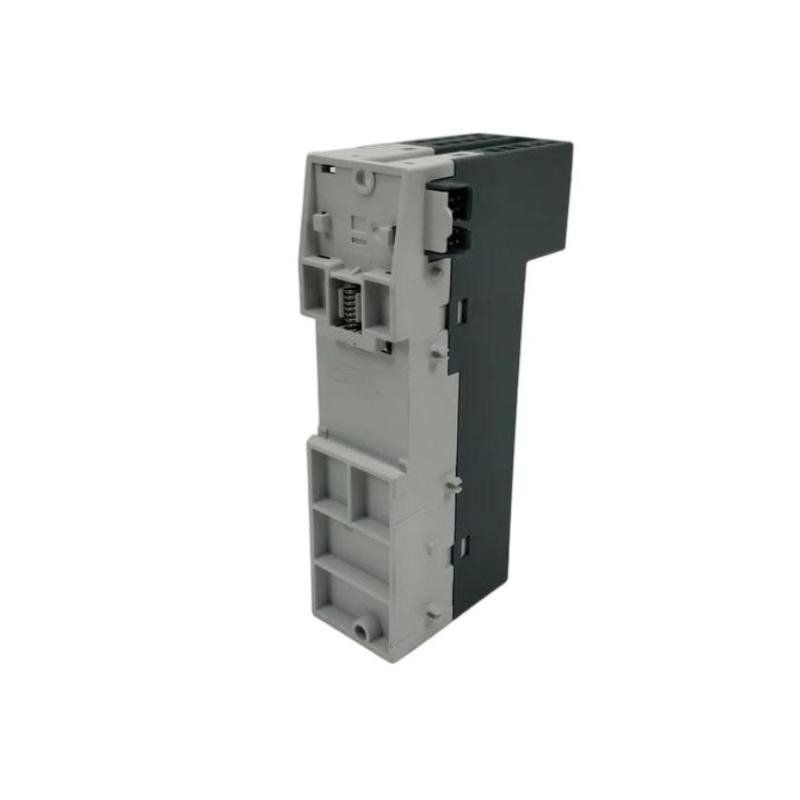

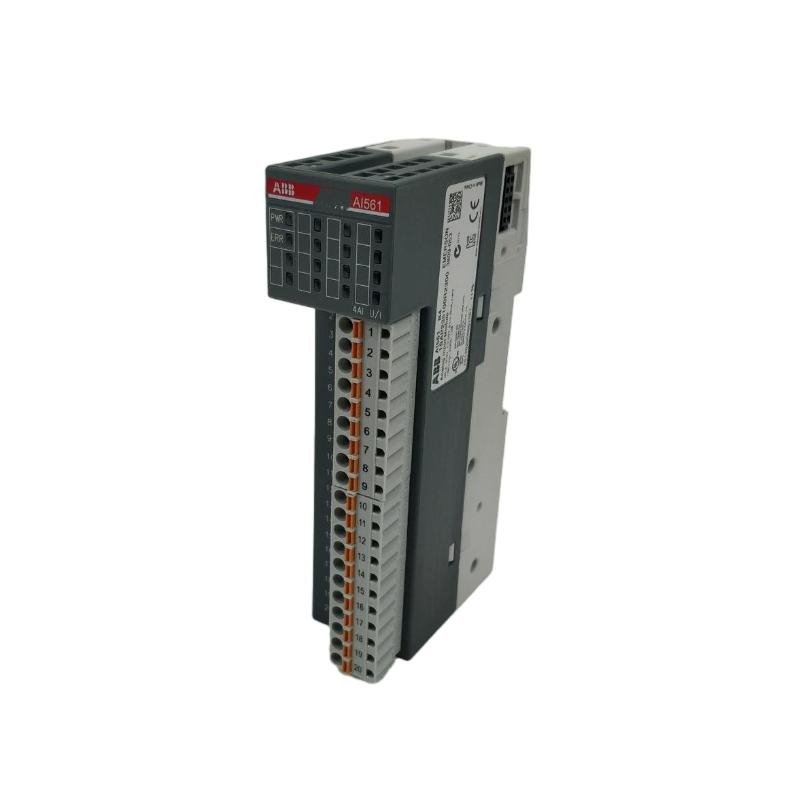

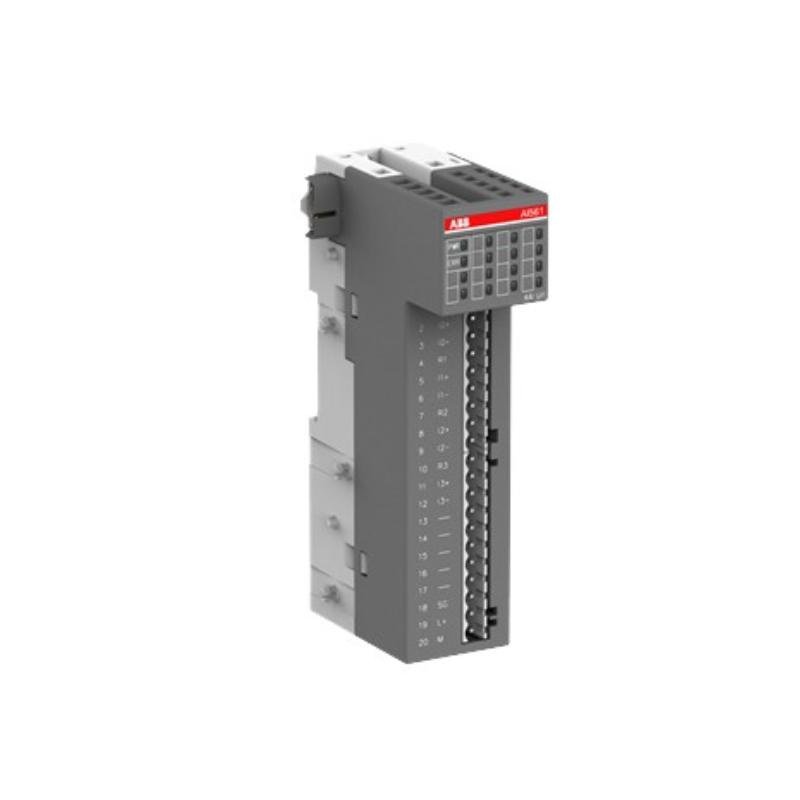

ABB AI561 1TNE968902R1101 Analog Input Modules
Manufacturer: ABB
Product Number: AI561 (1TNE968902R1101)
Category: Analog Input Module (AC500 series)
Number of Channels: 4
Input Signal Types: 4-20 mA, 0-10 V, RTD, thermocouple
Resolution: 16-bit
System Compatibility: ABB AC500 PLC systems
Product Description
The ABB AI561 1TNE968902R1101 is a high-performance analog input module designed to interface with a variety of analog sensors and transmitters in industrial automation systems. Part of ABB’s AC500 series, this module provides reliable and accurate acquisition of current and voltage signals from field instruments such as pressure transmitters, flow meters, temperature sensors, and level indicators. The AI561 supports both single-ended and differential inputs, enabling flexible integration across diverse industrial applications. With its compact design and robust performance, the AI561 module is ideal for process control, data acquisition, and monitoring systems in sectors including energy, manufacturing, and utilities.
Key Features
-
Multi-Channel Analog Input–Offers 8 analog input channels for connection to standard current and voltage signals.
-
High Accuracy and Resolution–Ensures precise measurement and conversion of analog signals for critical process control.
-
Flexible Input Ranges–Supports multiple input signal types including 0–10 V, ±10 V, 0–20 mA, and 4–20 mA.
-
Galvanic Isolation–Provides input-to-bus and channel-to-channel isolation to improve signal integrity and system protection.
-
Diagnostic Capabilities–Integrated diagnostic functions for open circuit detection and fault monitoring.
-
Seamless Integration–Designed for easy integration with ABB AC500 PLC systems and engineering tools.
-
DIN Rail Mounting–Space-efficient and easy to install in control cabinets.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 135 x 74 x 34 mm |
| Weight | 0.21 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Number of Channels | 8 analog input channels |
| Input Signal Types | 0–10 V, ±10 V, 0–20 mA, 4–20 mA |
| Input Impedance | >100 kΩ for voltage / <250 Ω for current |
| Resolution | 12 bits |
| Accuracy | ±0.5% of full scale |
| Isolation | Galvanic isolation: 500 V channel-to-bus and channel-to-channel |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Vibration Resistance | 5 g (continuous), 15 g (shock) |
| Enclosure Rating | IP20 |
System Compatibility
| Item | Specification |
|---|---|
| Platform | Compatible with ABB AC500 PLC systems |
Industry Applications
-
Power Generation–Collects analog signals from field sensors for monitoring turbines, generators, and auxiliary systems.
-
Chemical and Petrochemical–Gathers data from flow meters, pressure transmitters, and analyzers in critical process loops.
-
Water and Wastewater–Monitors level, pressure, and flow in pumping and treatment facilities.
-
Manufacturing–Used in automated systems for real-time measurement and control of production parameters.
-
Food and Beverage–Ensures process consistency and compliance through accurate analog input monitoring.
The ABB AI561 1TNE968902R1101 Analog Input Module offers high-precision signal acquisition and system integration flexibility, making it an essential component in any modern industrial control architecture that requires dependable analog input processing.
