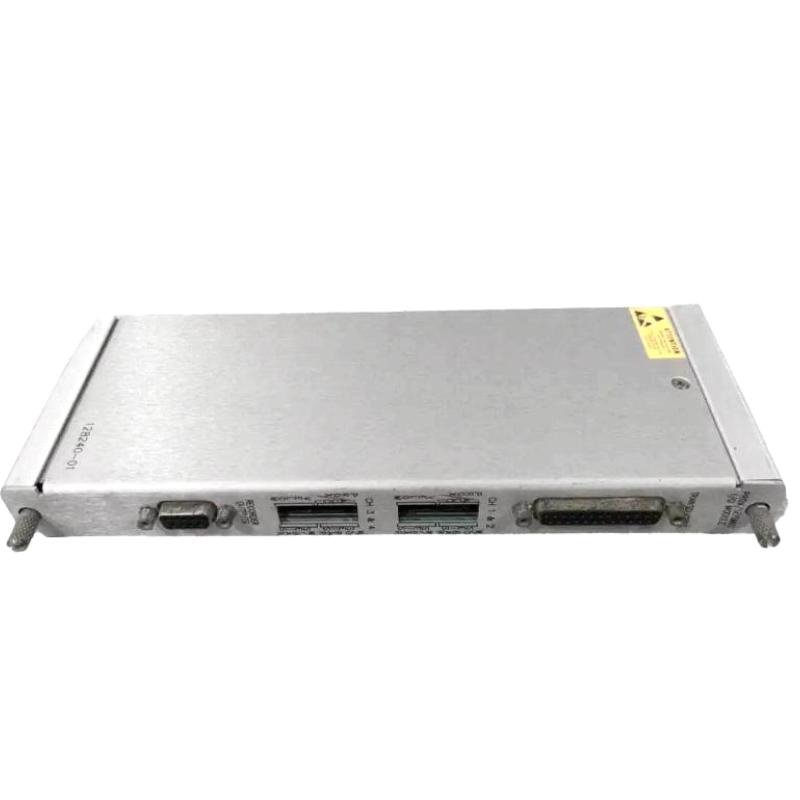

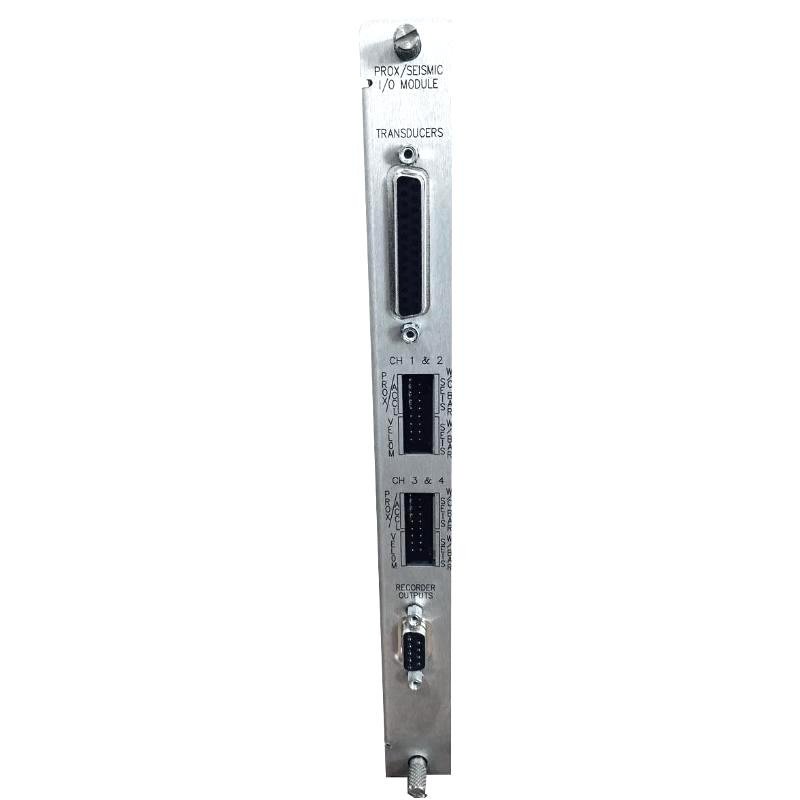

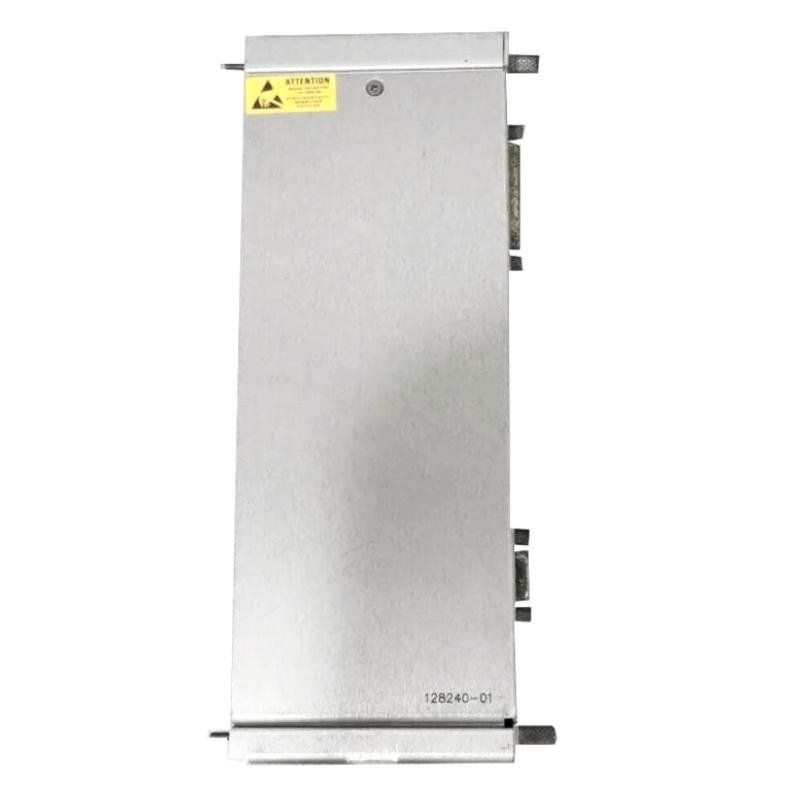

Bently Nevada 3500/42 128240-01 Proximitor/Seismic Monitor
Manufacturer: Bently Nevada
Product Number: 3500/42 (128240-01)
Category: Four-channel Proximitor/Seismic Monitor (3500 System)
Number of Channels: 4
Input Types: Proximity probes, seismic sensors
System Compatibility: Bently Nevada 3500 system
Product Description
The Bently Nevada 3500/42 128240-01 is a high-performance Proximitor/Seismic Monitor module designed for machinery protection and condition monitoring within the 3500 system. It provides four independent channels that can accept input from proximity probes, velocity transducers, or accelerometers. The module delivers continuous monitoring of vibration, position, and seismic parameters to detect abnormal machine behavior at an early stage, ensuring safe and reliable operation of rotating and reciprocating equipment.
Main Features
-
Four independent channels for Proximitor or seismic inputs
-
Configurable for radial vibration, axial position, or acceleration measurements
-
Buffered transducer outputs available for advanced diagnostics
-
Programmable alarm setpoints with Alert and Danger levels
-
Direct interface with 3500 rack and system software
-
Redundant power compatibility for reliable operation
-
Meets API 670 requirements for machinery protection
-
LED indicators for module status and alarms
-
Hot-swappable design for ease of maintenance
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 241.3 × 24.4 × 163.1 mm |
| Weight | 0.46 kg |
General Information
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 3500/42 128240-01 |
| Product Type | Proximitor/Seismic Monitor Module |
| Mounting | 3500 rack slot, hot-swappable |
| Operating Temp | -30°C to +65°C |
| Storage Temp | -40°C to +85°C |
Electrical Characteristics
| Item | Specification |
|---|---|
| Channels | 4 |
| Input Types | Proximity probes, accelerometers, velocity sensors |
| Input Range | ±200 mV (depending on transducer type) |
| Signal Outputs | 4–20 mA proportional to measured value |
| Resolution | 12-bit |
| Alarm Levels | 2 per channel (Alert and Danger) |
| Power Supply | From 3500 rack backplane (redundant support) |
Environmental Specifications
| Item | Specification |
|---|---|
| Humidity Range | 0–95% RH (non-condensing) |
| Vibration | 5–2000 Hz, 0.7 g |
| Shock Resistance | 30 g, 11 ms |
| Protection Class | Designed for industrial environments |
Industry Applications
The Bently Nevada 3500/42 128240-01 is widely used across industries that require continuous machinery protection and vibration monitoring, including:
-
Oil & Gas: Turbomachinery, compressors, and pumps in refineries and pipelines
-
Power Generation: Steam and gas turbines, generators, and auxiliary equipment
-
Petrochemical & Chemical Plants: Critical rotating and reciprocating machinery
-
Metals & Mining: Crushers, mills, and heavy-duty rotating machines
-
Pulp & Paper: Monitoring paper machine rolls and drive equipment
-
Marine & Offshore: Diesel engines, compressors, and propulsion systems
