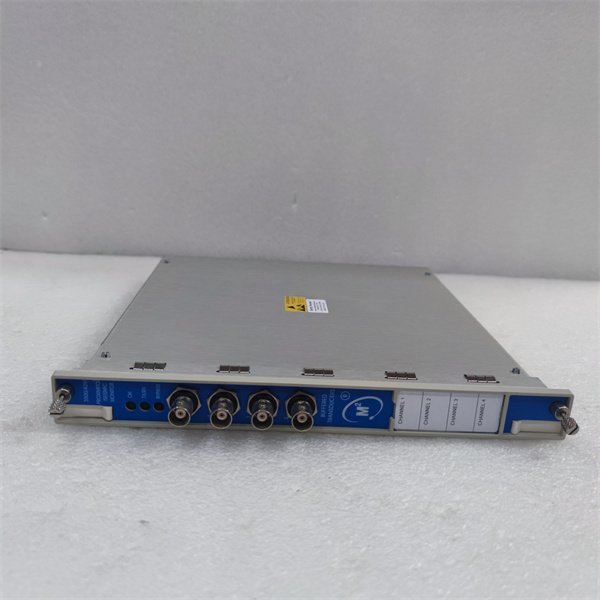

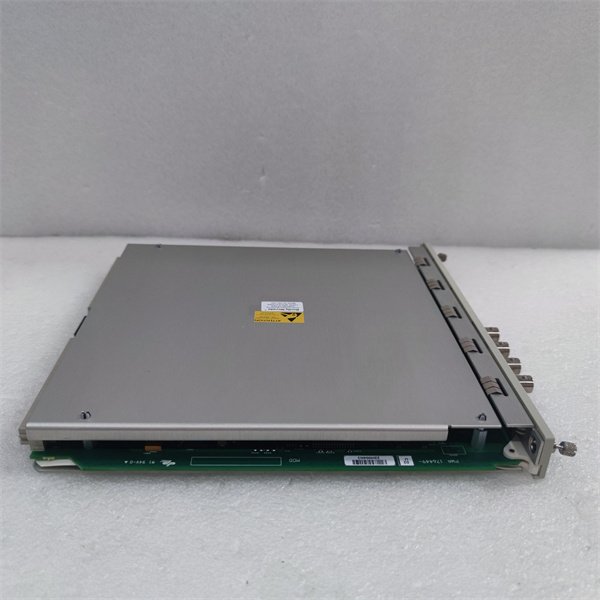

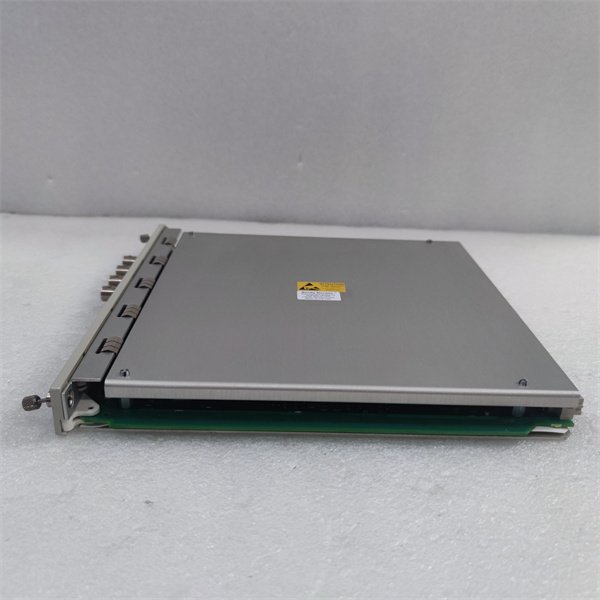

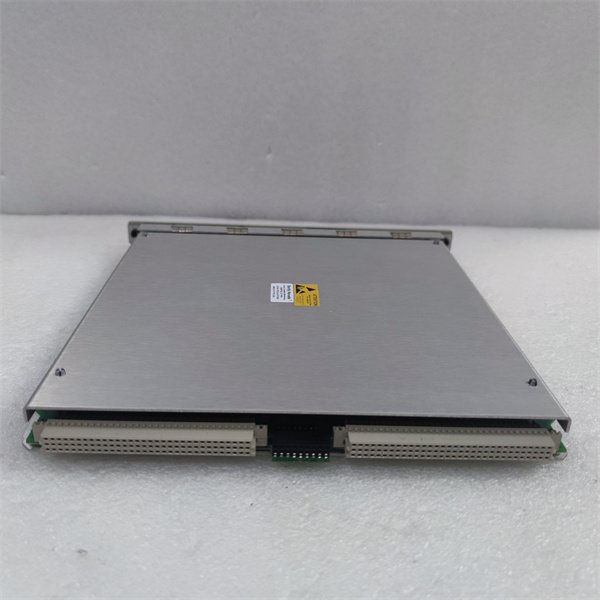

Bently Nevada 3500/42M Proximitor/Seismic Monitor
Manufacturer: Bently Nevada
Product Number: 3500/42M
Category: Proximitor/Seismic Monitor
Number of Channels: 4
Series: 3500 Series Monitoring System
Application: Real-time vibration and position monitoring in critical rotating machinery
Sensor Support: Proximity and seismic transducers
Product Description
The Bently Nevada 3500/42M is a four-channel Proximitor/Seismic Monitor designed for real-time vibration and position monitoring in critical rotating machinery. As part of the 3500 Series Monitoring System, it integrates proximity and seismic transducers to provide accurate measurements for machinery health assessment. With configurable alarm setpoints and dual-channel redundancy options, the 3500/42M ensures reliable protection against equipment failures in industries like power generation, oil & gas, and manufacturing. Its compact design and epoxy-sealed front panel make it suitable for harsh environments, while intuitive LED indicators enable quick status checks.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 3500/42M |
| Function | Four-channel vibration/position monitor |
| Input Types | Proximity (eddy current) and seismic sensors |
| Output Signal | 4–20 mA analog, relay contacts (SPDT) |
| Power Supply | 24 VDC ±10% (via 3500 Rack) |
| Operating Temperature | -40°C to +85°C |
| Humidity Range | 0–95% non-condensing |
| Alarm Setpoints | Configurable for static values (alert/danger) |
| Mounting Slot | Slots 3–6 in 3500 Rack |
| Weight | 1.1 kg |
Advantages and Features
- Multi-Function Monitoring: Simultaneously tracks radial vibration, thrust position, eccentricity, and acceleration for comprehensive diagnostics.
- User-Programmable Alarms: Customizable thresholds for alert/danger levels via 3500 Rack Configuration Software.
- Dual-Channel Redundancy: Optional redundant setup (e.g., 3500/42M-01-00) for mission-critical systems.
- Rugged Design: Epoxy-sealed construction withstands EMI, shock, and extreme temperatures.
- Ease of Integration: Front-panel LEDs and modular design simplify installation and maintenance.
Application Areas and Use Cases
Industry Applications:
- Power Generation: Steam turbines, generators.
- Oil & Gas: Compressors, pumps in offshore platforms.
- Manufacturing: High-speed rotating machinery.
Case Study: A European steel plant reduced vibration-related downtime by 40% using the 3500/42M to monitor rolling mill bearings. Early detection of misalignment via real-time vibration analysis prevented costly repairs.
Competitor Comparison
- Higher Channel Density: Four-channel capacity vs. typical two-channel competitors.
- Wider Temperature Range: Operates at -40°C to +85°C, surpassing modules limited to 0–70°C.
- Flexible Redundancy: Optional dual-channel redundancy without full TMR complexity.
Selection Recommendations
- Channel Requirements: Opt for 3500/42M-01-00 for dual-channel redundancy or 3500/42M-02-00 for four-channel operation.
- Environment: Choose models with fiber-optic connectivity for EMI-prone environments.
- Budget: Non-redundant configurations balance cost and reliability for non-critical applications.
Precautions
- Installation: Ensure proper grounding and avoid electrostatic discharge during handling.
- Sensor Calibration: Regularly verify transducer alignment and signal integrity.
- Software Configuration: Use 3500 Rack Configuration Software to set alarm thresholds and enable redundant channels.
