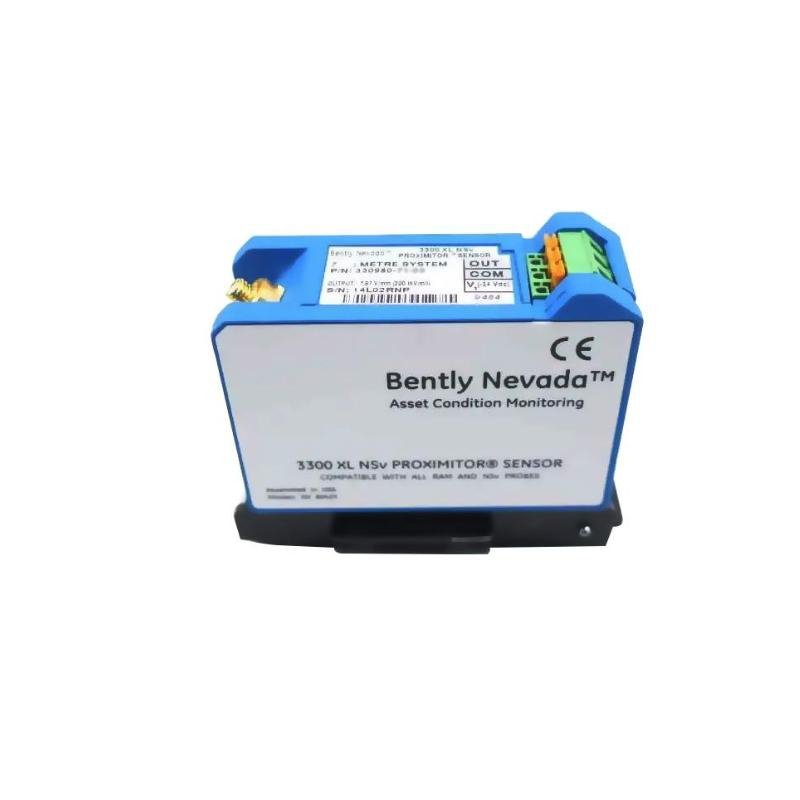

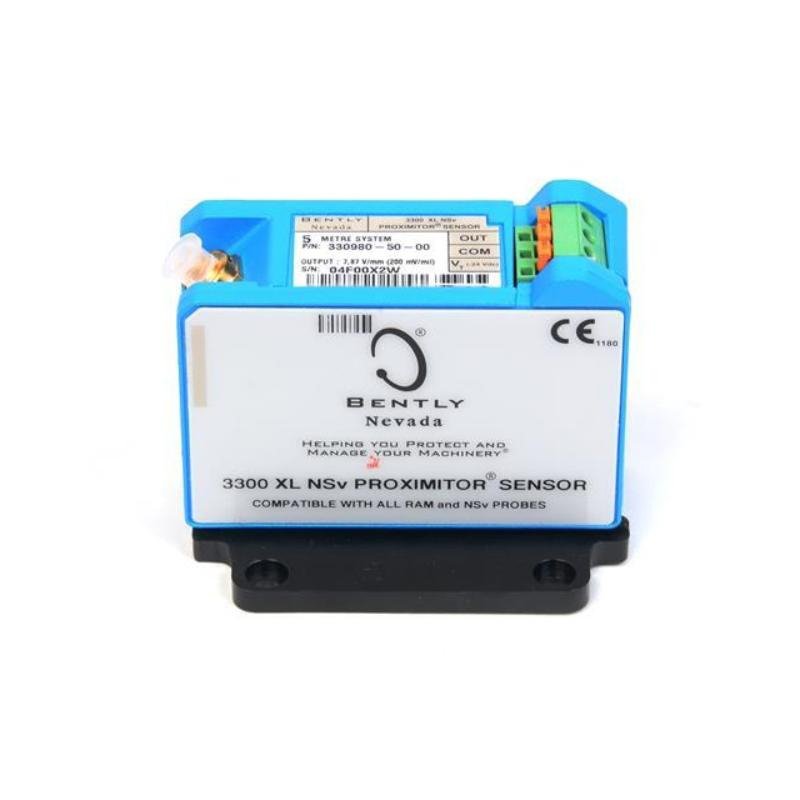

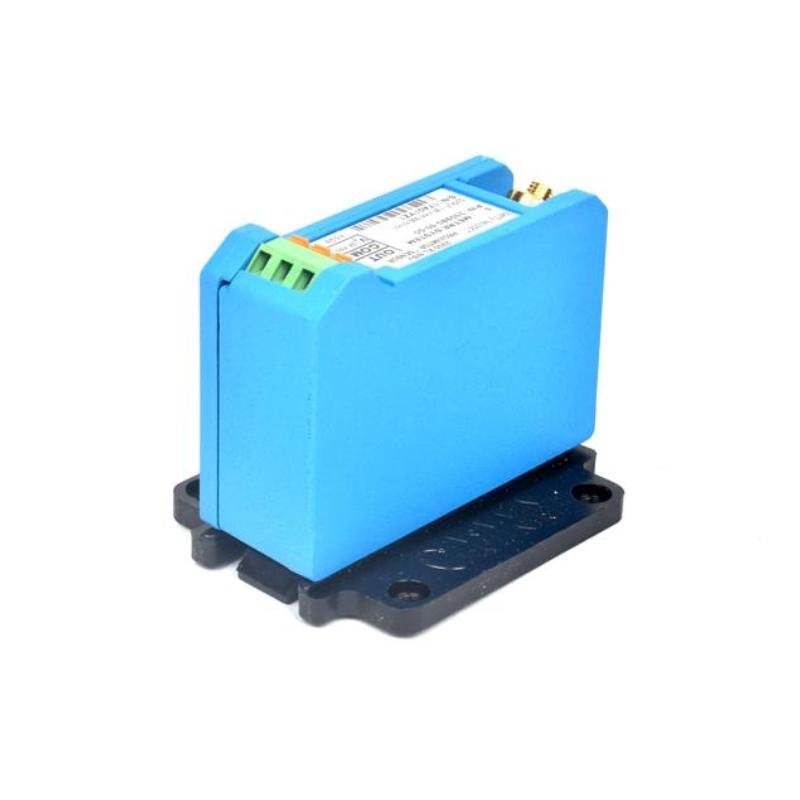

Bently Nevada 330980-50-00 proximity Transducer System
Manufacturer: Bently Nevada
Product Number: 330980-50-00
Category: 3300 XL NSv Proximity Transducer System
System Compatibility: 3300 XL series monitoring systems
Technology: Non-contact vibration and shaft position measurement
Application: High-precision monitoring for rotating machinery
Product Description
The Bently Nevada 330980-50-00 belongs to the 3300 XL NSv (Narrow Side View) Proximity Transducer System, engineered for high-precision, non-contact measurement of vibration and shaft position in rotating machinery.
This system is specifically designed for equipment with limited installation space, such as small compressors, pumps, gearboxes, and turbochargers, where the standard 3300 XL 8 mm or 11 mm probes cannot fit due to reduced side or rear clearance.
The “50” suffix identifies a system length of 5.0 meters (16.4 feet), while the “00” suffix designates the standard configuration with no special agency approvals. The 3300 XL NSv system ensures excellent linearity, reliability, and stability across a wide range of operating conditions.
Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| Model Number | 330980-50-00 | |
| Series | 3300 XL NSv Proximity Transducer System | |
| System Length | 5.0 m (16.4 ft) | |
| Mounting Configuration | Panel mount | |
| Approval Option | Standard (no special approvals) | |
| Output Scale Factor | 7.87 V/mm (200 mV/mil) | |
| Linear Range | Approximately 1.5 mm (60 mils) | |
| Frequency Response | 0–10 kHz (–3 dB) | |
| Power Supply Voltage | –17.5 V to –26 V DC | |
| Recommended Target Size | Flat target ≥ 13 mm (0.5 in) diameter | |
| Probe Tip Diameter | 8 mm | |
| Probe Body Length | 50 mm (typical) | |
| Probe Operating Temperature | –34 °C to +177 °C (–30 °F to +350 °F) | |
| Housing Dimensions (Proximitor Module) | 71 × 31 × 89 mm (H × W × D) | |
| Weight (Proximitor Module) | Approximately 0.26 kg | |
| Shipping Weight (Full System) | Approximately 2.0 kg | |
| Mounting Environment | Industrial installations, compact spaces |
