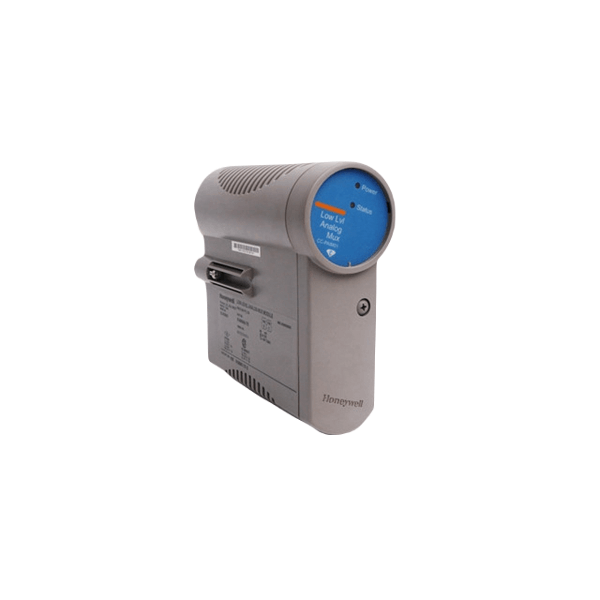

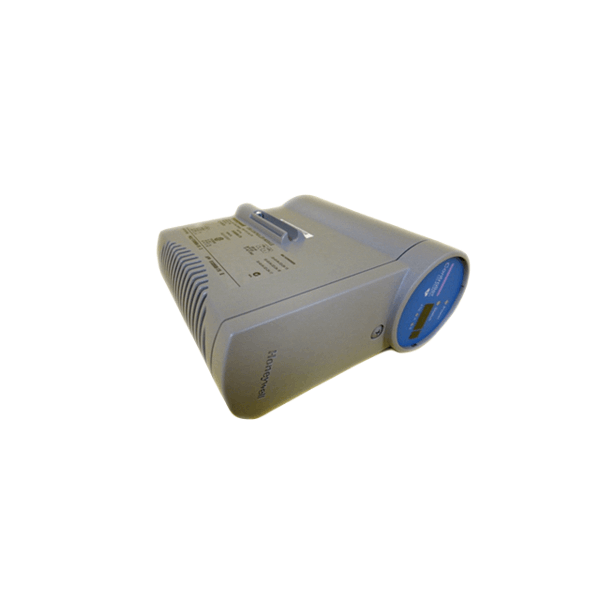

The Honeywell CC-PAIM01, a low-level analog input module (IOM), can accommodate up to 64 channels of temperature inputs. It utilizes the Honeywell PMIO LLMUX FTA, which facilitates RTD and thermocouple (TC) inputs. The module collects temperature data from all points at a 1-second rate. Users can apply the CC-PAIM01 in various industrial applications, including:

• Process control
• HVAC
• Building automation
• Medical equipment
• Food and beverage processing

Features

• Supports up to 64 channels of temperature inputs
• Supports RTD and TC inputs
• 1 second PV scanning with OTD protection
• Configurable OTD protection
• Temperature points can be added in 16 point increments
• Remote cold junction capability

Technical Specifications

• Input range: -50 to 1500 degrees Celsius (-58 to 3022 degrees Fahrenheit)
• Accuracy: ±0.5 degrees Celsius (±1 degrees Fahrenheit)
• Resolution: 0.1 degrees Celsius (0.2 degrees Fahrenheit)
• Voltage: 24 VDC
• Current: 10 mA
• Dimensions: 96 x 96 x 25 mm (3.8 x 3.8 x 1 inch)
• Weight: 0.2 kg (0.44 lb)
