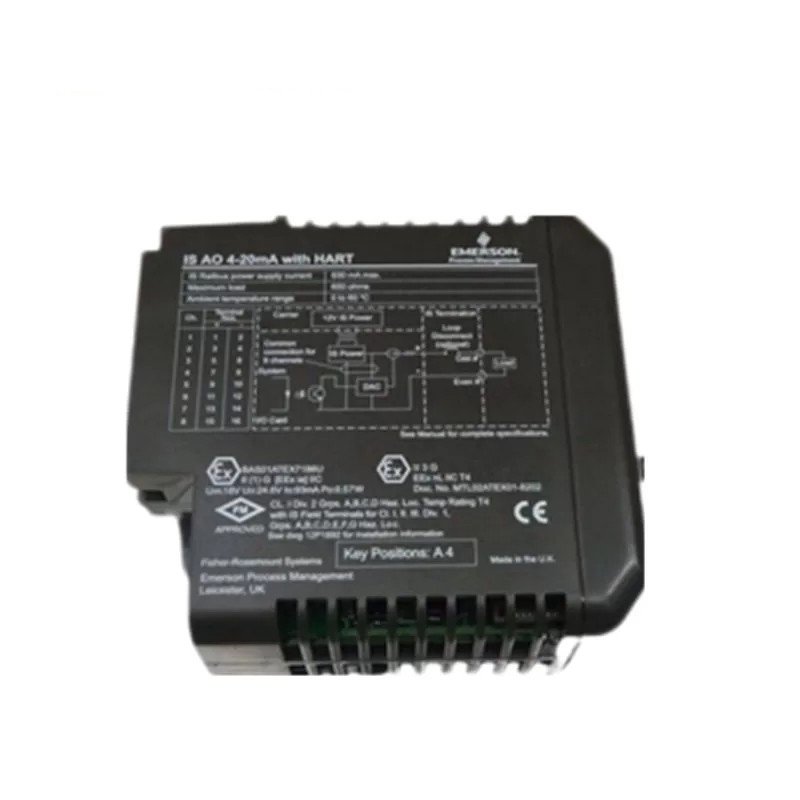

Emerson KJ3102X1-BE1 Analog Output Module

The Emerson KJ3102X1-BE1 is an analog output module designed for Emerson’s DeltaV DCS. It features 8 channels for 4-20mA HART analog output, enabling precise control and monitoring.

Key Features

• 8-channel analog output: Provides multiple channels for versatile control and monitoring.
• 4-20mA HART: Uses a standard industry signal for wide compatibility with field devices.
• DeltaV compatible: Integrates seamlessly into the DeltaV DCS platform.
• High accuracy and reliability: Ensures precise measurements and control.
• Compact design: Saves space in the control panel.

Technical Specifications

• Number of channels: 8
• Signal type: 4-20mA HART
• Accuracy: Typically within 0.1% of full scale
• Resolution: High resolution for fine-grained control
• Power supply: Provided by the DeltaV system
• Environmental conditions: Includes operating temperature range and humidity (details in the datasheet)
• Certifications: Complies with relevant industry standards (e.g., CE, UL)

Applications

The KJ3102X1-BE1 module is widely used in:

• Process control: Manages flow, pressure, temperature, and other variables.
• SCADA systems: Interfaces with supervisory control and data acquisition systems.
• Automation systems: Implements automated control strategies.
