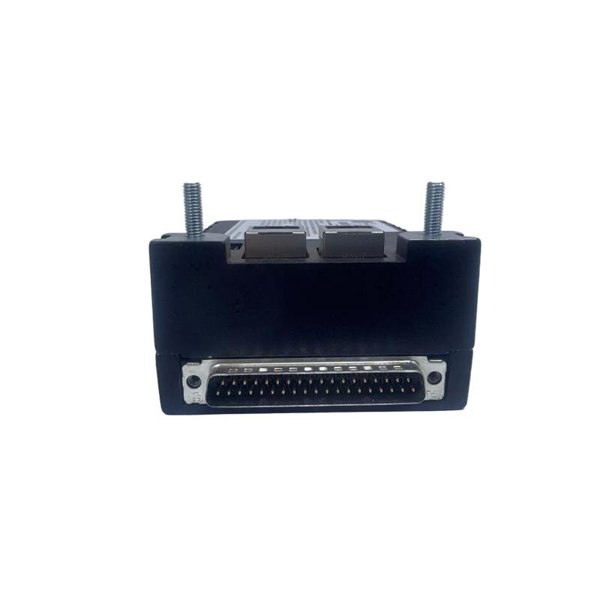

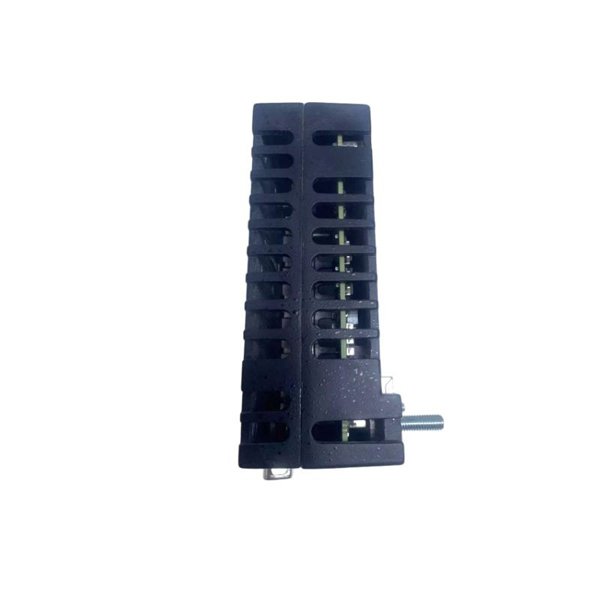

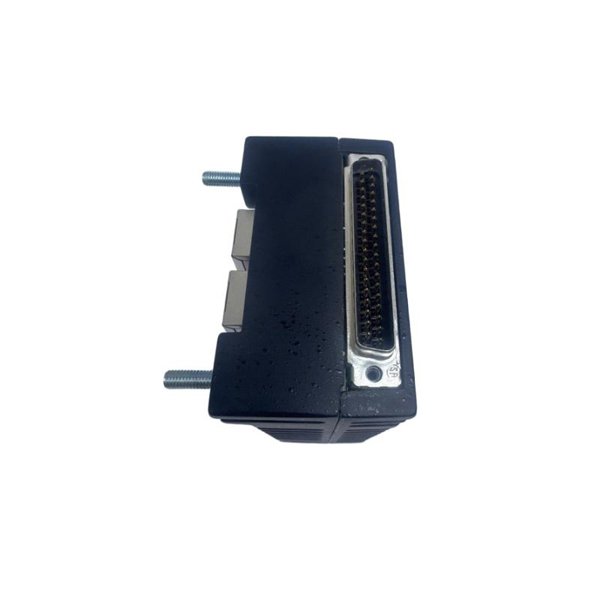

The GE IS220PDOAH1BC is a discrete output module used in industrial automation and control systems. Part of the GE Mark VIe control system, this module provides a flexible solution for controlling discrete devices in a wide range of industrial applications. It is designed to operate with high reliability and precision, ensuring smooth system performance in demanding environments such as power plants, manufacturing, and process control.

The IS220PDOAH1BC module is built to handle discrete outputs, providing an essential interface between the control system and field devices. Its compact design and robust construction make it ideal for use in systems where space and durability are crucial. This module can control multiple devices simultaneously, making it an essential component of automation systems that require high levels of integration and flexibility.

Technical Specifications

The GE IS220PDOAH1BC Discrete Output Module comes with the following specifications:

Product Applications

The GE IS220PDOAH1BC discrete output module is used in various industrial applications, including:

• Process Automation: This module is perfect for controlling devices such as valves, motors, and solenoids in a process control environment. It ensures that the discrete devices receive accurate control signals based on the system’s needs.

• Manufacturing Systems: It is used in automated manufacturing environments to control a variety of machines and systems, helping to improve efficiency and consistency.

• Power Plants: The module is frequently employed in power generation systems to manage critical equipment like pumps, actuators, and other field devices, ensuring continuous and reliable operation.

• Oil and Gas: In the oil and gas industry, the IS220PDOAH1BC helps control valves, pumps, and other devices that need precise and reliable control, even in challenging environments.

• Water Treatment: It is also used in water treatment facilities to control pumps, flow meters, and other key equipment that require discrete output signals.

• Building Automation: The module plays a role in building automation systems by controlling HVAC systems, lights, and security systems.

Product Advantages

• High Reliability: The IS220PDOAH1BC is designed to offer high reliability in demanding industrial applications, minimizing downtime and maximizing system uptime.

• Compact Design: Its compact form factor ensures that it can be easily integrated into control panels, even in space-constrained environments.

• Easy Installation: This module is designed for quick and straightforward installation, reducing setup time and increasing operational efficiency.

• Isolated Outputs: The IS220PDOAH1BC features isolated outputs, which protect the control system from electrical surges or noise in the field devices, enhancing system stability.

• Versatile Applications: With the ability to control various types of devices, this module is highly versatile, making it suitable for a wide range of industries and applications.

• Durable Construction: The module is built to withstand harsh conditions, including temperature extremes and electrical noise, making it ideal for industrial environments.

• Cost-Effective: By providing efficient control for multiple devices, the IS220PDOAH1BC helps reduce operational costs while ensuring reliable system performance.

FAQ

1. What is the primary function of the GE IS220PDOAH1BC Discrete Output Module?

The primary function of the IS220PDOAH1BC is to provide discrete output control for field devices such as motors, valves, and actuators in industrial automation systems.

2. How many outputs does the IS220PDOAH1BC module provide?

The module offers 8 isolated discrete outputs.

3. What is the maximum output per channel on this module?

Each output channel supports a maximum of 1A at 24V DC.

4. What is the operating temperature range for the IS220PDOAH1BC?

The operating temperature range is from -20°C to +60°C.

5. Can the IS220PDOAH1BC module be used in power plants?

Yes, the IS220PDOAH1BC is well-suited for use in power plants to control equipment like pumps and actuators.

6. What types of field devices can the IS220PDOAH1BC control?

The module can control a variety of field devices, including valves, motors, solenoids, and other equipment that require discrete output control.

7. Is the IS220PDOAH1BC compatible with other GE automation systems?

Yes, it is designed to integrate seamlessly into the GE Mark VIe control system and other GE automation solutions.

8. Does the IS220PDOAH1BC offer isolated outputs?

Yes, the module features isolated outputs, which help protect the control system from electrical surges or noise in the field devices.

9. How easy is it to install the IS220PDOAH1BC module?

The IS220PDOAH1BC is designed for easy installation, allowing for quick integration into existing systems with minimal setup time.

10. Where can I get more information or support for the IS220PDOAH1BC?

For more information or technical support, please contact us.
