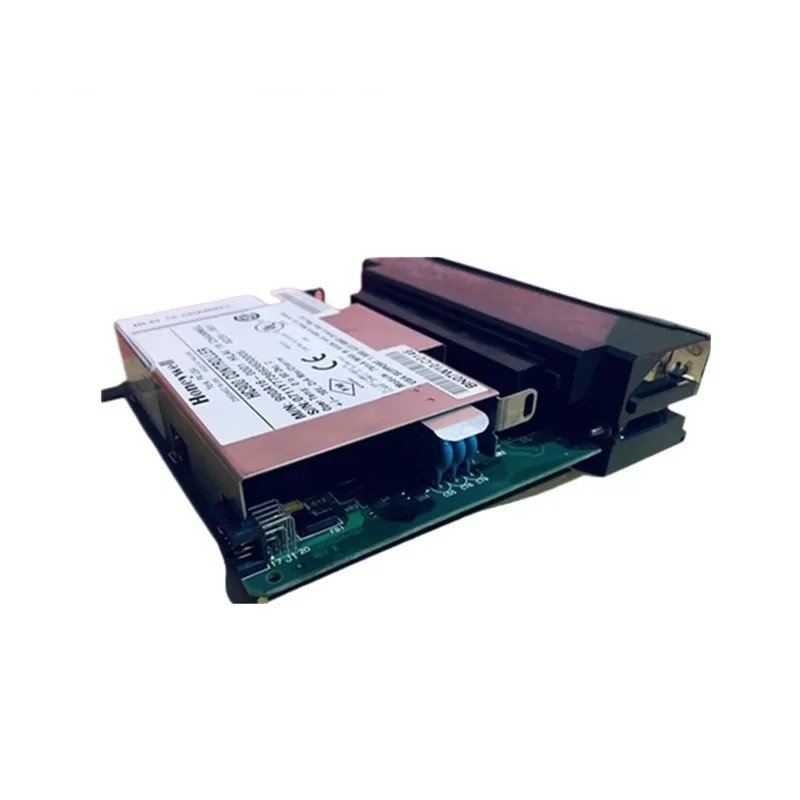

The Honeywell 900C53-0244-00 is an I/O scanner designed for remote racks. It interfaces between the central control system and field devices, enabling analog and digital input acquisition and output control.

Key Features

I/O Capabilities:

• 8 analog inputs
• No electrical isolation between analog inputs
• A/D converter resolution
• Maximum input voltage: -30V to +30V (when all channels are configured as inputs and UP5 terminal is not connected)

Communication:

• 10BASE-T Ethernet

Power:

• 600 mA maximum at 5 VDC

Physical Characteristics:

• Compact and rugged design suitable for industrial environments

Technical Specifications

• Part Number: 900C53-0244-00
• Manufacturer: Honeywell
• Application: I/O scanner for remote rack
• Input: 8 analog inputs, no electrical isolation
• Communication: 10BASE-T Ethernet
• Power: 600 mA max at 5 VDC

Applications

The Honeywell 900C53-0244-00 is used in industrial automation systems for:

• Data Acquisition: Collecting analog measurements from sensors and transducers
• Process Control: Controlling actuators and other output devices based on input data
• Monitoring: Monitoring system status and detecting faults
