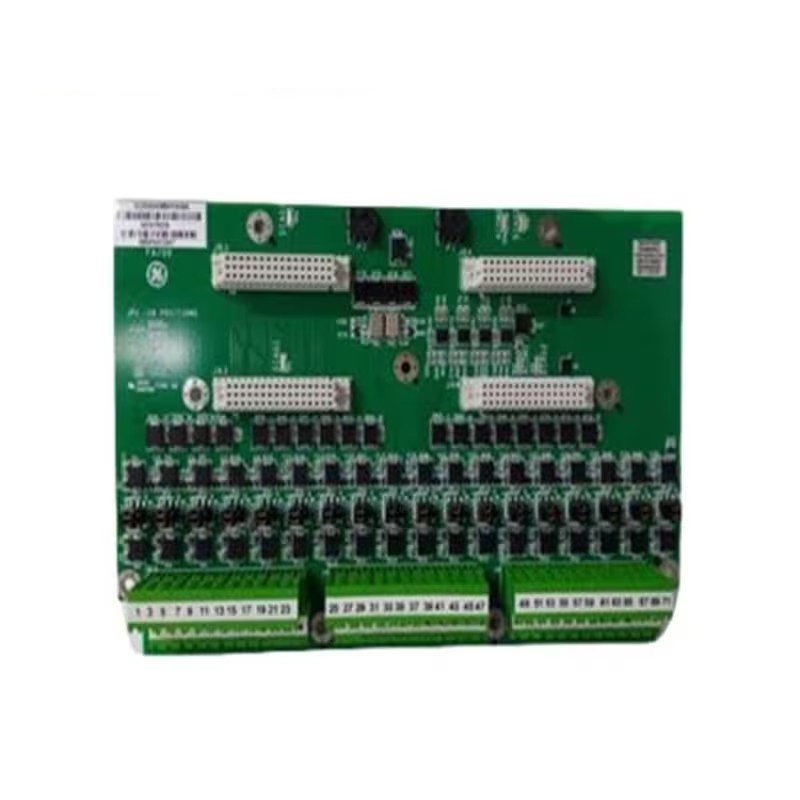

The IS200STTCH2ACA Thermocouple Terminal Board is an essential component for GE Speedtronic Mark V turbine control systems. This board ensures accurate temperature monitoring by providing reliable connections for up to 24 thermocouples. It supports a range of thermocouple types and is designed to function within both simplex and redundant system configurations, making it versatile for industrial applications.

Technical Specifications

• Mounting: DIN rail-mounted for easy installation
• Thermocouple Inputs: Accommodates up to 24 thermocouple connections
• Thermocouple Types: Compatible with types E, J, K, S, T
• System Configurations: Supports simplex, dual, and triple modular redundant (TMR) systems
• Connection Type: Barrier-type blocks for secure thermocouple connections
• I/O Communication: 37-position DC connector for communication with I/O processor
• Environmental: Suitable for harsh industrial environments
• Application: Ideal for gas turbines, steam turbines, and rotating machinery in power generation and industrial systems
