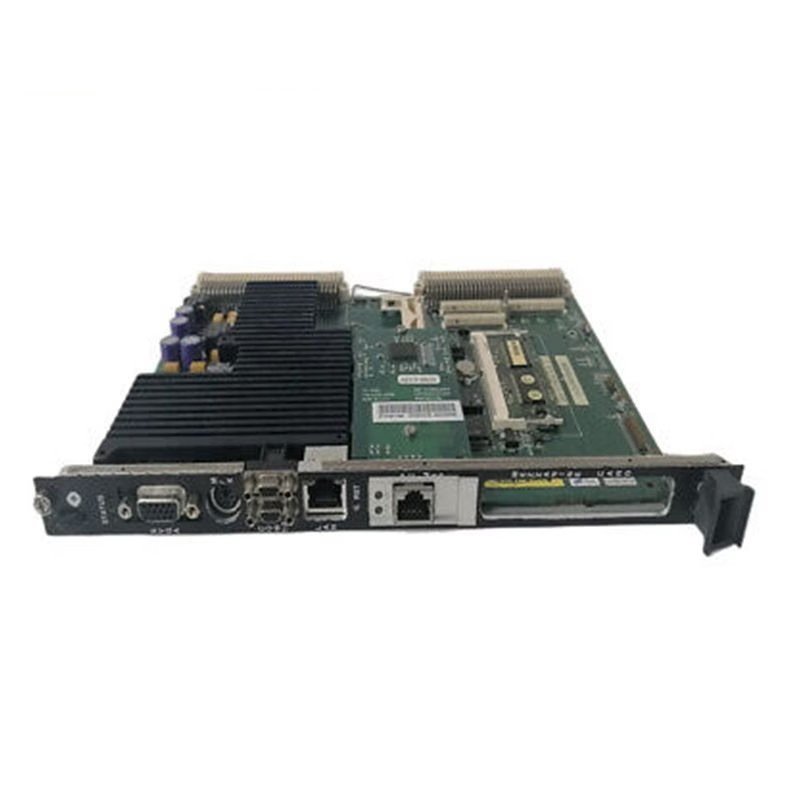

GE Fanuc IS215UCVEH2A VME Controller Card

The GE Fanuc IS215UCVEH2A is a VME Controller Card specifically designed for GE’s Speedtronic Mark VI control systems. It is integral to industrial automation, often deployed in turbine control for power generation systems and other heavy industrial applications. This card provides robust control capabilities and is compatible with the VMEbus architecture, offering flexibility and scalability in complex industrial environments.

Technical Specifications

• VMEbus Interface:
  • Fully compliant with the VMEbus standard for industrial and embedded system compatibility.
• Processor:
  • Intel Celeron (300 MHz): Offers efficient processing power for control tasks.
• Memory:
  • 32 MB DRAM: Provides operational memory for system tasks.
  • Flash Memory: Either 16 MB or 128 MB for program storage.
• Communication Ports:
  • Ethernet Port: 1x 10BaseT/100BaseTX RJ-45 Ethernet port for network connectivity.
  • Serial Ports: COM1 and COM2 for serial communication.
• Input/Output:
  • Keyboard/Mouse Port: Allows connection to input devices for manual control.
• Operating System:
  • QNX: A real-time operating system known for its reliability and deterministic performance.
• Status Indicators:
  • Equipped with 3 LEDs to indicate system status and health.
• Board Type:
  • Single Slot: Fits into a standard VME rack.
• Environmental and Electrical:
  • Power Supply: Typically 24 VDC for industrial control environments.
  • Operating Temperature: Designed for operation in industrial environments, typically ranging from 0°C to 70°C.
