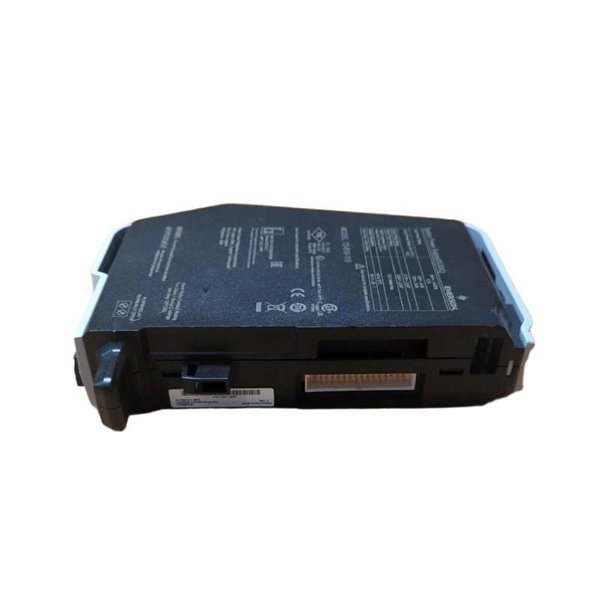

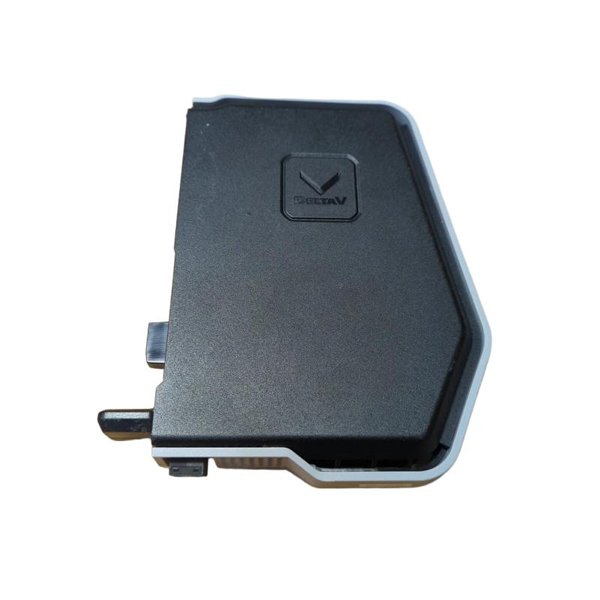

The Emerson SE4032S1T2B1 Discrete Output Card is a crucial component in automation systems, designed to provide reliable output control for a wide range of industrial applications. This card allows operators to control various devices such as actuators, relays, and other control systems, based on the commands received from a central controller. With robust performance, compatibility with Emerson’s controllers, and reliable communication, this card is essential for managing discrete outputs in industrial automation.

Product Specifications

Product Applications

The Emerson SE4032S1T2B1 Discrete Output Card is designed for use in a wide array of industrial automation environments:

• Control of Actuators: Enables precise control of actuators and valves, allowing for efficient process control in manufacturing systems.

• Relay Control: Suitable for controlling relays that activate different industrial machines and systems based on discrete signals.

• Process Automation: Provides discrete outputs to control devices like solenoids, motors, and sensors in various automated processes.

• Factory Automation: Plays a vital role in factory automation by offering reliable control of a wide range of machinery, helping streamline production.

• Energy Systems: Manages outputs for energy metering and distribution systems, enabling efficient energy management.

• Safety and Alarm Systems: Can be integrated into safety systems, controlling alarm devices and ensuring proper response during system failures.

Product Advantages

• High Output Density: With 32 discrete output channels, the card offers high-density output control in a compact design.

• Sourcing Output: The card supports sourcing outputs, which provide high reliability in controlling external devices like actuators, sensors, and alarms.

• Durability and Reliability: Designed to operate in demanding environments, with a wide temperature range of -20°C to +70°C and an IP20 rating for protection against dust and direct contact.

• Easy Integration: The card’s DIN rail mounting makes installation straightforward, enabling quick integration into existing systems.

• High Current Capability: Each output channel supports up to 500 mA, providing ample power for controlling high-demand devices.

• Energy-Efficient: The card operates on a 24V DC power supply, ensuring low energy consumption while maintaining high output performance.

FAQ

Q1: How do I install the SE4032S1T2B1 Discrete Output Card?

The card can be mounted on a DIN rail. Connect the appropriate output devices to the terminals on the card and provide the card with a 24V DC power supply to ensure proper functionality.

Q2: What is the output type of this card?

The card supports sourcing output, which means it provides power to external devices like relays and actuators.

Q3: How many output channels are available on the SE4032S1T2B1?

The card provides 32 discrete output channels, making it suitable for controlling multiple devices simultaneously.

Q4: What is the maximum output current per channel?

Each output channel can handle up to 500 mA, making it capable of driving high-power devices without the need for external amplifiers.

Q5: Is this card suitable for use in harsh environments?

Yes, the card operates within a temperature range of -20°C to +70°C and is rated IP20 for protection against dust and foreign objects, making it suitable for many industrial applications.

Q6: Can the SE4032S1T2B1 Discrete Output Card be used with Emerson controllers?

Yes, this card is fully compatible with Emerson controllers and integrates seamlessly into Emerson-based automation systems.

Q7: What is the power supply requirement for the card?

The card operates on a 24V DC power supply, which is standard for many industrial control systems.

Q8: What types of devices can be controlled with this output card?

The card can control devices such as actuators, solenoids, valves, motors, sensors, and alarms in industrial automation processes.

Q9: How do I troubleshoot issues with the discrete output card?

Check the wiring connections to ensure they are secure and configured for the appropriate output signal type (0-10V or 4-20mA). Refer to the user manual for additional troubleshooting steps or contact our customer service for further assistance.

Q10: Is there any configuration required to use the card?

Typically, the card is plug-and-play with Emerson controllers, but it may require configuration in your system software depending on the specific automation needs and control program.
