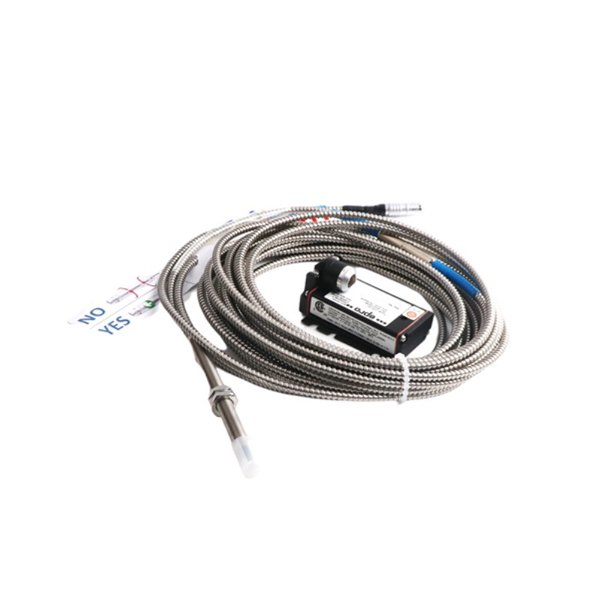

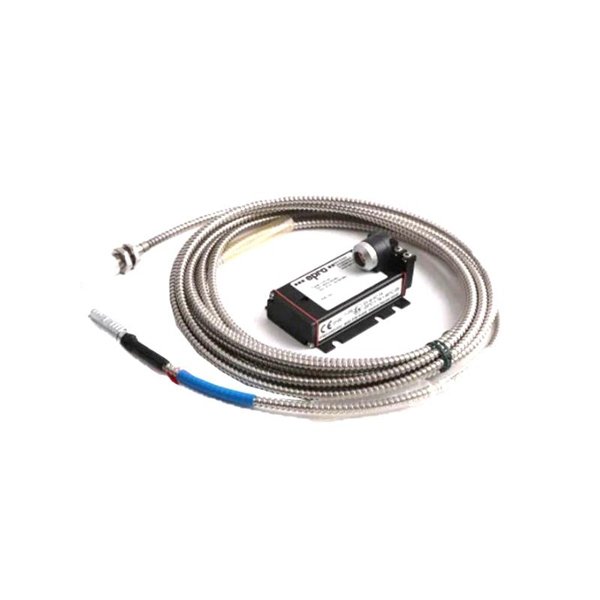

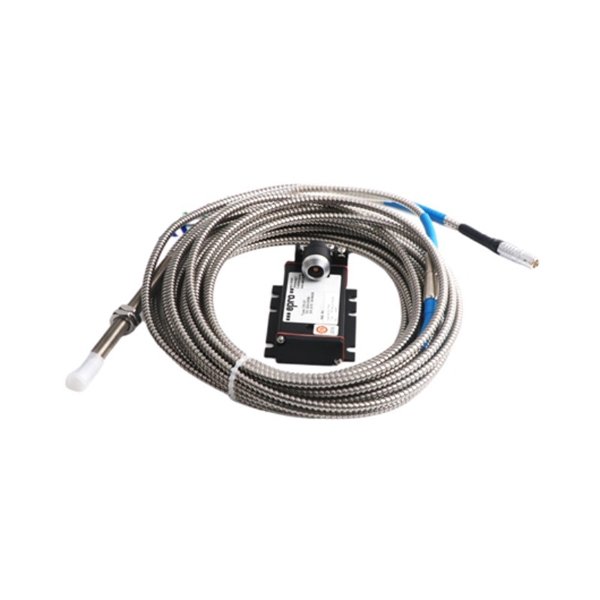

The Epro PR6424/114-000 is a 16mm eddy current sensor designed to offer precise, non-contact measurement for a variety of industrial applications. It works based on the eddy current principle, where it measures the displacement, position, and vibration of conductive targets without the need for physical contact. This technology provides a high level of accuracy and durability, making it ideal for use in machinery monitoring, testing, and calibration.

With a 16mm probe diameter, the PR6424/114-000 is compact, making it suitable for confined spaces while still maintaining excellent performance. The sensor is ideal for high-speed dynamic applications as well as static measurements, ensuring versatility in various industries such as automotive, aerospace, and energy.

Technical Specifications

Product Applications

The Epro PR6424/114-000 16mm eddy current sensor is suitable for a broad range of applications:

• Vibration Monitoring: Used for monitoring vibration levels in machinery, helping to detect issues early in rotating equipment like turbines and motors.

• Position Sensing: Provides accurate and reliable position feedback in automated systems and robotic applications.

• Proximity Measurement: Measures the distance between the sensor and a target, ideal for proximity sensing in manufacturing processes.

• Dimensional Measurement: Perfect for measuring small dimensions with high precision in industrial and lab environments.

• Automated Calibration: Helps with the calibration of other equipment, offering precise measurement in test systems.

• Dynamic Measurements: Designed for high-speed dynamic measurements where real-time data is critical.

Product Advantages

• Non-Contact Measurement: By using eddy current technology, this sensor eliminates physical contact with the target, reducing wear and tear on both the sensor and the target.

• Compact Design: With a 16mm diameter, it is ideal for applications where space is limited or where a larger sensor would be too cumbersome.

• High Accuracy: The sensor boasts a ±0.5% full scale accuracy, ensuring precise measurements, even in demanding applications.

• Wide Temperature Range: The -20°C to +80°C operating range makes the sensor highly versatile, capable of operating in various industrial conditions.

• Real-Time Feedback: The sensor provides less than 1ms response time, enabling real-time measurements.

• Versatile Output Options: It supports both 0-10V and 4-20mA analog outputs, making it easy to integrate into a variety of systems.

• Robust Construction: Built to withstand harsh industrial environments, ensuring reliable and durable performance over time.

FAQ

1. What is the maximum measurement range of the Epro PR6424/114-000 sensor?

The maximum measurement range of the sensor is up to 10 mm, which is sufficient for most displacement and position measurement applications.

2. How does the Epro PR6424/114-000 sensor output data?

The sensor outputs an analog signal that can be either 0-10V or 4-20mA, depending on the model.

3. Is the Epro PR6424/114-000 suitable for high-speed applications?

Yes, it is ideal for high-speed dynamic applications, with a response time of less than 1ms.

4. What materials are compatible with the Epro PR6424/114-000 sensor?

The sensor is designed to work with conductive metals as target materials, such as steel, aluminum, and copper.

5. Can the Epro PR6424/114-000 sensor be used in harsh environmental conditions?

Yes, the sensor operates in a temperature range of -20°C to +80°C, making it suitable for a wide variety of industrial environments.

6. How accurate is the Epro PR6424/114-000 sensor?

The sensor offers ±0.5% accuracy of the full scale, ensuring precise and reliable readings.

7. Can this sensor be used for vibration monitoring?

Yes, the Epro PR6424/114-000 is ideal for vibration monitoring in rotating machinery such as motors, turbines, and compressors.

8. What is the power supply requirement for the sensor?

The sensor requires a 15V to 24V DC power supply for operation.

9. What types of applications are best suited for the Epro PR6424/114-000?

The sensor is well-suited for vibration monitoring, position sensing, proximity measurement, and dimensional measurement in industrial applications.

10. Is the sensor easy to integrate into existing systems?

Yes, the sensor provides both 0-10V and 4-20mA outputs, making it easy to integrate into a wide range of systems and applications.
