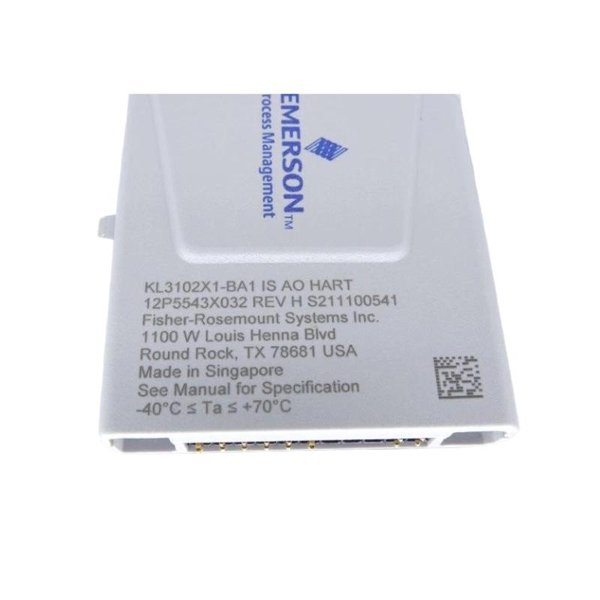

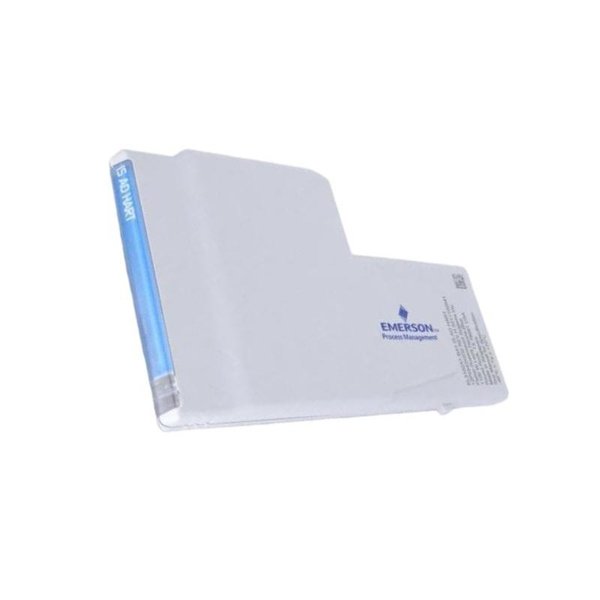

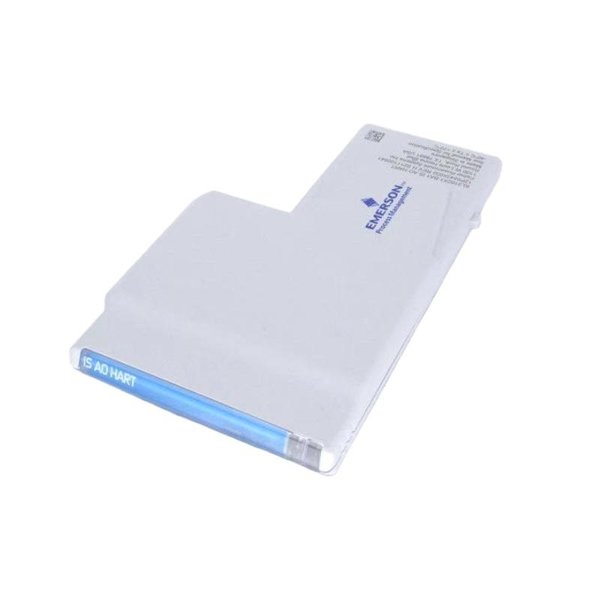

The Emerson SE4308T01 KL3102X1-BA1 analog output module is designed to offer precise and reliable analog output in industrial automation systems. With its robust build and flexible configuration, it is an essential component for systems that require the conversion of digital signals into accurate analog outputs. Whether it’s for controlling industrial devices like actuators, valves, or motor controllers, this module ensures seamless communication in automated processes. It integrates easily into existing Emerson modular systems, providing excellent performance across a wide range of applications.

Product Specifications

Product Applications

The Emerson SE4308T01 KL3102X1-BA1 analog output module is ideal for a wide range of industrial applications that require precise and reliable analog output control. Some of the key use cases include:

1. Industrial Process Control

   It is commonly used in process control systems, where precise analog signals are required to adjust parameters such as pressure, temperature, and flow rate.

2. Automation Systems

   In automated environments, it interfaces with PLCs (Programmable Logic Controllers) and SCADA systems to control actuators, valves, and motors through analog outputs.

3. Energy Systems

   The module can be used to control power systems, including regulating power supplies and voltage outputs for renewable energy applications or industrial grids.

4. Measurement Systems

   It is suitable for use in measurement systems where precise analog outputs are needed for controlling and adjusting monitoring devices or sensors.

5. Building Automation

   In HVAC systems, lighting control, and environmental monitoring, it provides analog output for various control devices and systems that require real-time data conversion.

Product Advantages

• High Accuracy and Resolution

  With a 16-bit resolution, the SE4308T01 provides high precision, making it suitable for applications where accuracy is critical.

• Wide Output Range

  Offering output ranges of 0-10V and 4-20mA, it supports a variety of industrial applications, providing flexibility in system design and operation.

• EtherCAT Communication

  The module utilizes the EtherCAT communication protocol, ensuring fast, efficient, and real-time data exchange, which is essential for high-speed industrial systems.

• Energy-Efficient

  With a low power consumption of just 200 mA, this module minimizes energy usage, making it a more sustainable and cost-effective solution.

• Robust and Durable Design

  The module is built to withstand demanding industrial environments, offering reliable performance even in extreme conditions.

• Easy Installation

  Its DIN rail mountable design allows for simple and secure installation in control panels or racks, reducing setup time and effort.

FAQ

1. What is the resolution of the Emerson SE4308T01 KL3102X1-BA1 module?

   The Emerson SE4308T01 KL3102X1-BA1 analog output module has a resolution of 16-bit, ensuring high precision for your analog signal outputs.

2. What output ranges does the SE4308T01 module support?

   This module supports two output ranges: 0-10V and 4-20mA, providing flexibility for a variety of industrial applications.

3. What communication protocol does the SE4308T01 module use?

   The SE4308T01 KL3102X1-BA1 module uses the EtherCAT communication protocol, which ensures fast and efficient real-time data exchange.

4. How many channels does the Emerson SE4308T01 have?

   The module features 8 analog output channels, allowing it to control multiple devices simultaneously.

5. What is the power consumption of the SE4308T01?

   The SE4308T01 module has a power consumption of 200 mA, making it an energy-efficient solution for industrial control systems.

6. Can the SE4308T01 module be integrated into existing Emerson systems?

   Yes, the SE4308T01 is designed to be compatible with Emerson’s other modular components, providing easy integration into existing setups.

7. What is the weight of the Emerson SE4308T01 module?

   The module weighs 0.2 kg, making it lightweight and easy to handle during installation.

8. Can the output signal be configured for different devices?

   Yes, the output signal can be configured to either 4-20mA or 0-10V, allowing it to be used with a wide range of devices requiring analog input.

9. What is the typical application for this module in industrial environments?

   This module is ideal for industrial process control, automation systems, energy systems, measurement systems, and building automation.

10. Is the Emerson SE4308T01 CE certified?

    Yes, the Emerson SE4308T01 KL3102X1-BA1 module is CE certified, ensuring compliance with European safety and environmental standards.
