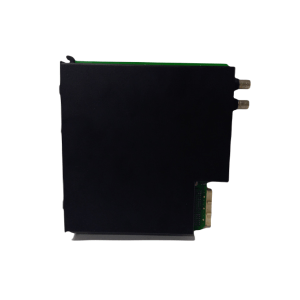

The GE Fanuc A02B-0222-B501 is a Control Basic Unit designed for use in Fanuc 16-MC control systems. It is integral to the operation of CNC (Computer Numerical Control) machinery, ensuring accurate processing of control instructions and the coordination of machine movements. This unit handles crucial tasks such as communication between various components, executing control programs, and managing input/output signals to and from operator controls, feedback devices, motors, and actuators. The A02B-0222-B501 is commonly found in CNC machine tools like milling machines, lathes, and grinders.

Technical Specifications

• Manufacturer: GE Fanuc (now part of FANUC Corporation)
• Part Number: A02B-0222-B501
• Product Type: 16-MC Control Basic Unit
• Platform Compatibility: Fanuc Series 16, 18, and 21 CNC systems
• Operating Voltage: 24 VDC
• Dimensions: 11.2 cm x 5.5 cm x 15 cm (4.4 in x 2.2 in x 5.9 in)
• Weight: 0.5 kg (1 lbs 0.0 oz)
• Processing Unit: Central CPU for executing control programs
• Memory: Stores control programs, parameters, and operational data
• Communication: Facilitates interaction between the CNC system and machine components
• Input/Output: Manages input from operator controls and feedback, and outputs to drive motors and actuators
