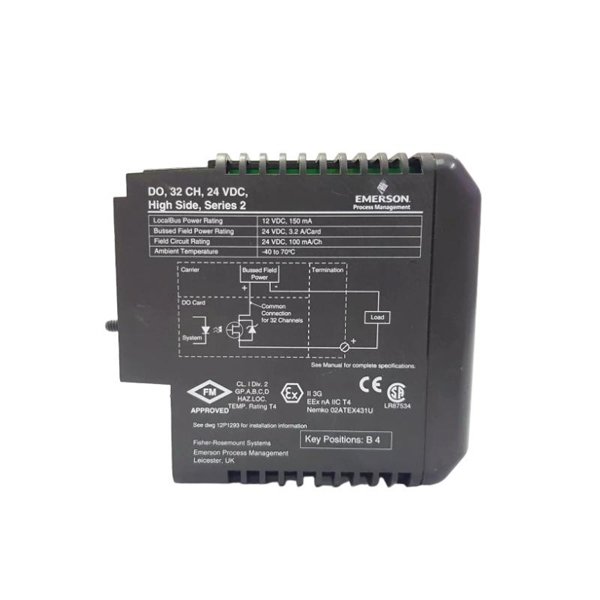

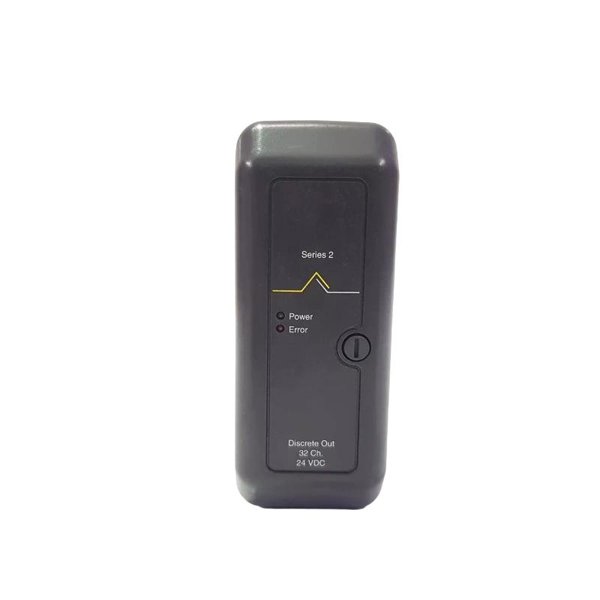

The Emerson VE4002S1T2B5 KJ4001X1-CB1 + KJ3204X1-BA1 Output Module with Terminal Blocks is a high-performance output solution designed for DeltaV distributed control systems. This module provides reliable output interfacing for process automation, combining modular design, robust terminal blocks, and precision signal handling.

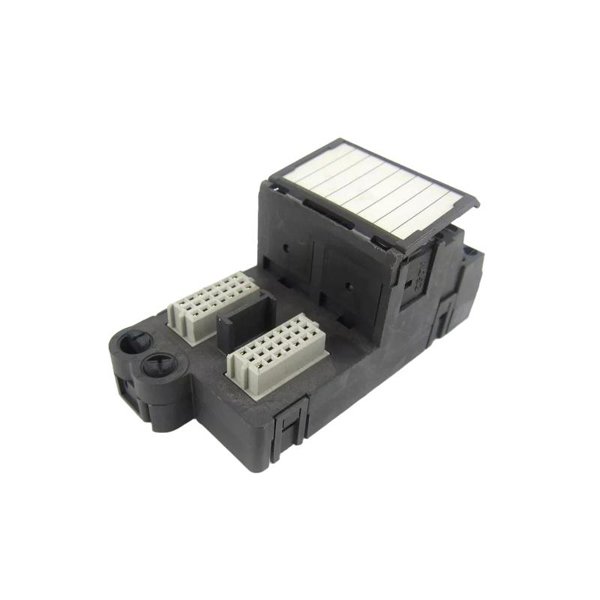

The KJ4001X1-CB1 serves as the base controller interface, while the KJ3204X1-BA1 functions as the dedicated output module, together offering an integrated system for safe and efficient process control. The module supports digital and analog output configurations, ensuring flexible adaptation to diverse industrial requirements.

Its terminal block design allows for simplified field wiring, secure connections, and ease of maintenance, while the module architecture supports redundancy and system scalability. This makes it highly suitable for mission-critical industries that require continuous operation and robust fault tolerance.

Product Specifications

Applications

The VE4002S1T2B5 output module is widely deployed across industries that rely on precise process automation and control:

• Petrochemical and Refining: For managing pump outputs, valve actuators, and compressor systems.

• Power Generation: Controls turbine governor systems, exciters, and plant auxiliary equipment.

• Water Treatment Plants: Handles motor starters, dosing systems, and valve networks.

• Pharmaceutical Manufacturing: Provides precision output control for batch and continuous production.

• Food & Beverage Industry: Controls automated packaging, filling, and conveyor operations.

• Oil & Gas Facilities: Ensures reliable control outputs for offshore and onshore systems.

Advantages

• Integrated Redundant Architecture: Ensures uninterrupted operation even during component failures.

• Flexible Output Handling: Supports both digital and analog outputs within the same system.

• Simplified Maintenance: Terminal block design allows quick wiring and field servicing.

• High Reliability: Rugged industrial design ensures stability in harsh environments.

• Scalability: Easily expandable within the DeltaV architecture for large-scale applications.

• Diagnostic Capability: Built-in monitoring for fast detection of wiring or channel issues.

• Certifications: CE, UL, and CSA approvals ensure compliance with international standards.

• Secure Connections: Click-in terminal blocks reduce wiring errors and improve installation efficiency.

FAQ

1. What communication bus does the VE4002S1T2B5 use?

   It communicates via the DeltaV backplane bus.

2. Can the module support both digital and analog outputs?

   Yes, it is designed to handle both types of output signals.

3. How many output channels are available per module?

   Typically 4–8 channels, depending on configuration.

4. Does the module support redundancy?

   Yes, it supports redundant configurations for high availability.

5. What diagnostic features are available?

   It includes channel diagnostics, wiring integrity monitoring, and fault detection.

6. Can the terminal blocks be replaced separately?

   Yes, terminal blocks are replaceable without removing the entire module.

7. What is the typical operating voltage range?

   It operates at a nominal +24 VDC supply.

8. How does the module integrate into DeltaV systems?

   It mounts into DeltaV I/O carriers and communicates via the backplane.

9. What environmental conditions can it tolerate?

   It operates from 0°C to +60°C and stores safely at -40°C to +85°C.

10. Is this module certified for industrial compliance?

    Yes, it meets CE, UL, and CSA certification standards.
