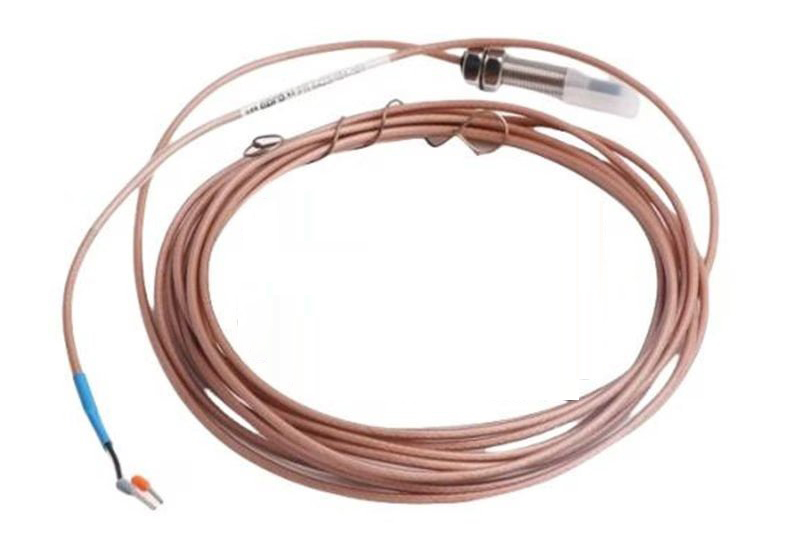

Epro CON031+PR6423/000-101 Eddy Current Sensor
Product Number: CON031 + PR6423/000-101
Category: Eddy Current Sensor System
Sensor Type: Non-contact eddy current displacement sensor (PR6423)
Converter: CON031 signal converter
Probe Length: Standard front mount (specified by -000)
Cable Length: 10.1 meters (specified by -101)
System Compatibility: MMS 3000/6000 monitoring systems
Application: Shaft vibration, axial position, radial position measurement
Product Description
The EPRO CON031 and PR6423/000-101 combine an Eddy Current Signal Converter and an Eddy Current Displacement Sensor. This system measures radial and axial shaft displacement, position, eccentricity, and vibration in critical turbomachinery like turbines, compressors, and pumps.
CON031 (Signal Converter) Specifications
Frequency Range: 0 to 20,000 Hz.
Rise Time: <15 μs.
Operating Temperature: -30°C to +100°C (-22°F to +212°F).
Power Supply: -23V to -32V DC.
Output Voltage Range: -4V to -20V or -2V to -18V.
Protection Class: IP20.
Certifications: ATEX, IECEx, CSA for hazardous areas.
PR6423/000-101 (Displacement Sensor) Specifications
Measurement Range: ±2 mm (static).
Sensitivity: 8 V/mm (203.2 mV/mil).
Nominal Air Gap: 0.5 mm (20 mils).
Frequency Response: Up to 20,000 Hz.
Operating Temperature: -35°C to +180°C (-31°F to +356°F).
Material: Stainless steel housing with PEEK sensor tip.
Protection Class: IP66.
Certifications: ATEX, IECEx, CSA for hazardous areas.
