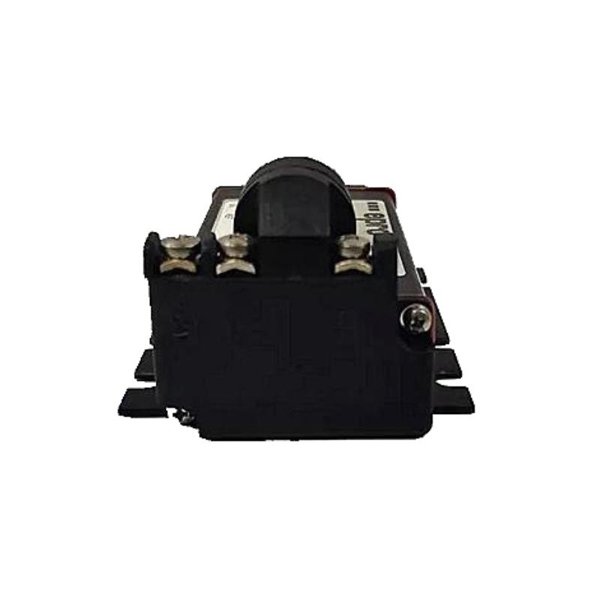

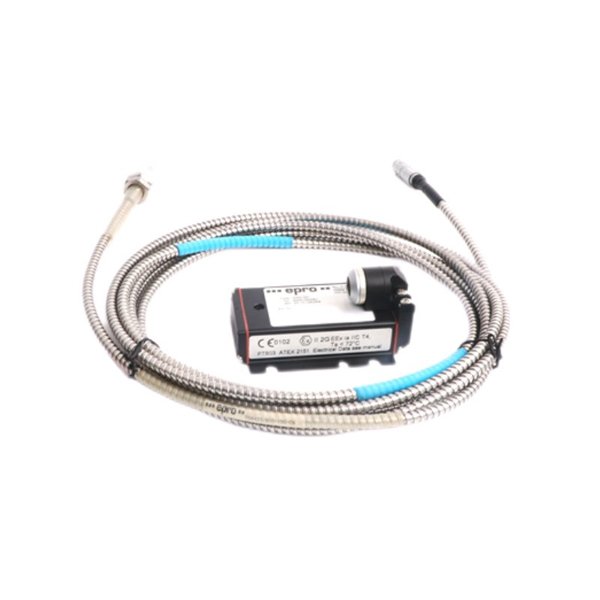

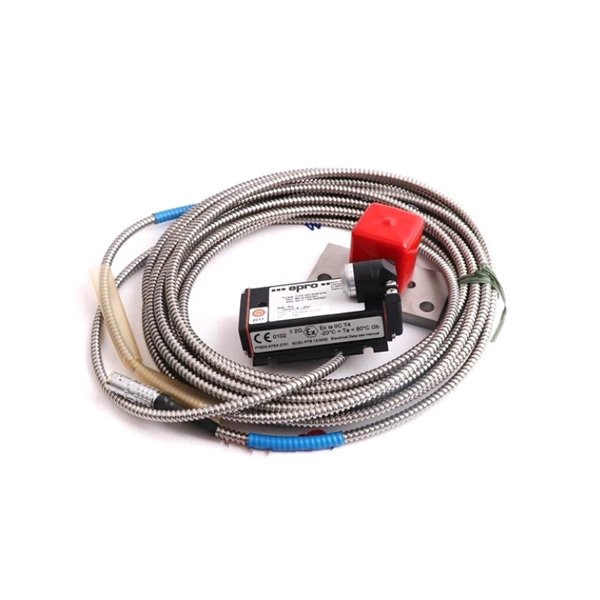

The Epro PR6424/102-121 is a 16mm Eddy Current Sensor, designed to provide highly accurate displacement, position, and vibration measurements in demanding industrial environments. This sensor is part of Epro’s PR6424 series, known for its precision and reliability. The PR6424/102-121 sensor uses eddy current technology to measure the distance between the sensor and a metallic target, offering a non-contact, wear-free solution for position sensing applications.

The Epro PR6424/102-121 sensor is designed to deliver high resolution and fast response times, making it ideal for use in applications where precise measurements are critical. Its robust construction ensures long-term performance even in harsh industrial environments, making it an ideal choice for monitoring moving parts, rotating equipment, and other critical components in machinery.

Product Specifications

Product Applications

The Epro PR6424/102-121 16mm Eddy Current Sensor is used across various industries for precise non-contact displacement and position sensing. Some of its key applications include:

1. Rotating Machinery Monitoring

   In industries like oil & gas, mining, and power generation, the sensor is widely used to monitor the position and vibration of rotating machinery such as motors, turbines, generators, and pumps.

2. Automotive Industry

   In automotive manufacturing, the sensor helps with the precise measurement of engine parts, valve positioning, and assembly lines, ensuring accurate production quality control.

3. Aerospace

   The sensor is used in aerospace applications to monitor the position of parts within aircraft engines, landing gear systems, and fuel control systems. The non-contact nature of the sensor makes it ideal for use in these high-stakes applications.

4. Vibration Monitoring in Industrial Equipment

   In industrial facilities, the sensor plays a key role in monitoring the vibration of equipment to predict maintenance needs and detect early signs of wear and tear, enabling predictive maintenance strategies.

5. Precision Manufacturing

   The sensor is integral to precision manufacturing applications, where small displacements and precise position measurements are necessary for quality control in the production of components such as bearings, shafts, and gears.

6. Robotics and Automation

   In robotics, the sensor is used for the accurate position sensing of moving parts, grippers, and other robotic components, ensuring precise motion control in automation systems.

Product Advantages

• Non-contact Measurement

  The Epro PR6424/102-121 sensor provides a non-contact solution for position sensing, eliminating the need for mechanical parts that wear over time. This results in higher durability and lower maintenance.

• High Accuracy and Precision

  With an accuracy of ±0.1% of full scale, this sensor delivers precise and reliable readings, making it ideal for demanding applications where high accuracy is crucial.

• Fast Response Time

  The sensor’s fast response time of less than 1 ms ensures quick feedback in real-time control systems, making it suitable for dynamic applications such as vibration monitoring and speed measurement.

• Wide Temperature Range

  The temperature range of -20°C to +70°C makes this sensor suitable for a wide variety of environmental conditions, from extreme cold to high heat, ensuring versatility and reliability in diverse industrial applications.

• Robust and Durable

  The IP67 rating ensures that the sensor can operate reliably in harsh environments where exposure to dust, moisture, and other contaminants is common. This makes the sensor perfect for harsh industrial environments like factories, mines, and offshore platforms.

• Easy Integration

  The Epro PR6424/102-121 sensor features simple mounting options, including threaded and flange mounting, allowing easy integration into existing systems and equipment. It can be used with a wide range of industrial control systems due to its analog output.

FAQ

1. What type of sensing technology does the Epro PR6424/102-121 use?

   The sensor uses eddy current technology to measure displacement and position.

2. What is the diameter of the sensing head?

   The sensing head has a diameter of 16 mm.

3. What is the typical measuring range of this sensor?

   The sensor typically has a measuring range of 0-10 mm.

4. What kind of output signal does this sensor provide?

   The sensor provides an analog output, either in voltage or current form.

5. What is the supply voltage required for this sensor?

   The nominal supply voltage is 24 V DC.

6. What is the accuracy of the sensor?

   The accuracy of the sensor is ±0.1% of full scale.

7. What is the response time of the Epro PR6424/102-121 sensor?

   The sensor has a response time of less than 1 ms.

8. What is the temperature range the sensor can operate in?

   The sensor operates in a temperature range of -20°C to +70°C.

9. What is the environmental protection rating of the sensor?

   The sensor has an IP67 rating, making it dust-tight and water-resistant.

10. What are the mounting options for this sensor?

    The sensor can be mounted using threaded or flange mounting options.
