Manufacturer:Emerson
Product Number:KL4501X1-BD1
Product Type:CHARM Address Plug
Origin:USA
Dimensions:107 x 41 x 105 mm
Weight:0.05kg
Views:45
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

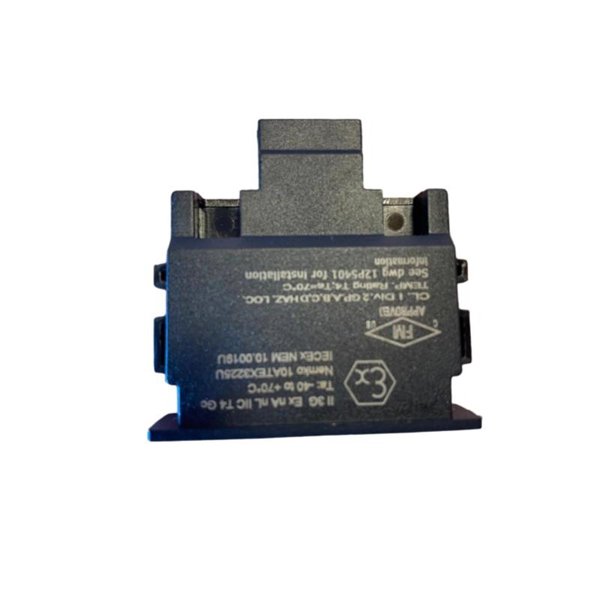

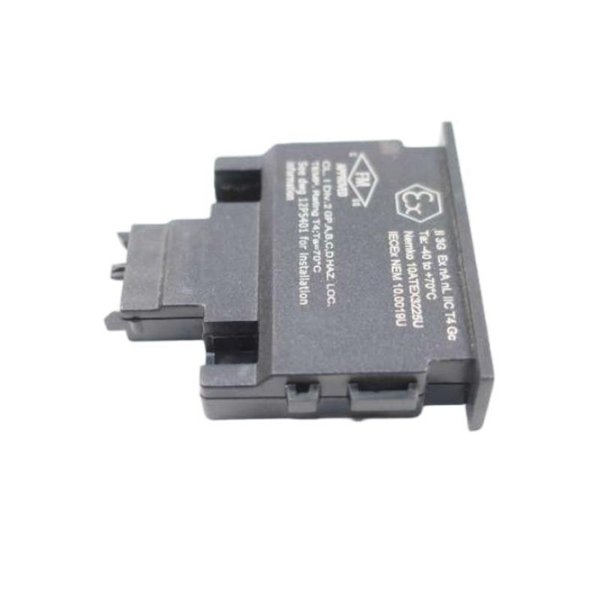

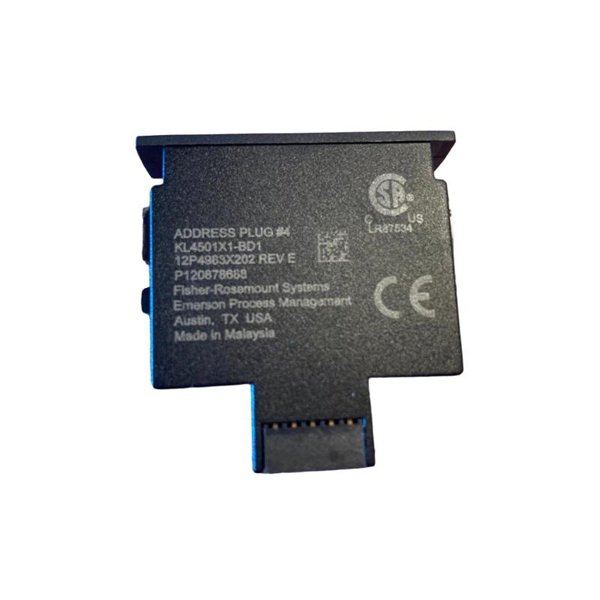

The Emerson KL4501X1-BD1 CHARM Address Plug is an essential component in the Emerson CHARM I/O system. This small yet powerful plug is designed to enable and facilitate the addressing of individual CHARM modules within a distributed control system. The address plug ensures that each module within the CHARM system is uniquely identified, enabling the system to properly recognize and communicate with each device connected to it. Its compact design and easy installation make it a highly versatile and efficient solution for systems requiring modular, distributed I/O connections.
The KL4501X1-BD1 plug is particularly useful in environments that require precise control, seamless integration, and flexibility, such as process automation, industrial control systems, and more. By enabling easy address assignment, it simplifies the setup and management of larger distributed I/O networks.
The following table outlines the key technical specifications of the Emerson KL4501X1-BD1 CHARM Address Plug:
| Specification | Details |
|---|---|
| Model | KL4501X1-BD1 |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.05 kg |
| Operating Voltage | 24V DC ±10% |
| Power Consumption | 1 W |
| Mounting Type | Direct connection to CHARM modules |
| Addressing Range | 1 to 32 (depends on system configuration) |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Communication Protocol | CHARM (Compatible with Emerson systems) |
| Enclosure | IP20 (Protected from solid objects larger than 12 mm) |
The Emerson KL4501X1-BD1 CHARM Address Plug is used in a variety of industrial and automation applications where modular I/O systems are implemented. Some of the key applications include:
Process Control Systems: Helps in the efficient addressing of CHARM modules within process control environments to ensure seamless system operation.
Industrial Automation: Provides a reliable solution for addressing I/O modules in industrial control systems where flexibility and scalability are crucial.
Energy Management Systems: Facilitates the proper addressing of modules within energy control systems, ensuring accurate data collection and system control.
Manufacturing Systems: Used in factory automation for addressing multiple modules controlling sensors, actuators, and other devices on the production floor.
Water and Wastewater Treatment: Ensures that the correct data from sensors and controllers is addressed and transmitted accurately in water treatment systems.
Oil & Gas: Ideal for process control in harsh environments, providing flexibility and reliable addressing for CHARM I/O modules in the oil and gas industry.
Efficient Addressing: The KL4501X1-BD1 plug simplifies the addressing of CHARM modules, ensuring that each module within a distributed system can be easily identified and communicated with.
Compact Design: Its small size (107 x 41 x 105 mm) allows it to be easily integrated into space-constrained environments, maximizing available space without sacrificing performance.
Easy Integration: Directly connects to CHARM modules, ensuring simple installation and setup with minimal configuration required.
Durability: With an industrial-grade build and an operating temperature range of -20°C to 60°C, this address plug is designed to perform reliably in tough environments.
Low Power Consumption: Consumes just 1 W of power, making it an energy-efficient component within the CHARM system.
Cost-Effective: Offers an affordable solution to address modules in distributed control systems, reducing the overall complexity and cost of system setup.
1. What is the power supply requirement for the KL4501X1-BD1 address plug?
The power supply requirement for the KL4501X1-BD1 address plug is 24V DC ±10%.
2. How many modules can the KL4501X1-BD1 address plug support?
The address plug supports an addressing range from 1 to 32, depending on the system configuration.
3. Can the KL4501X1-BD1 be used in high-humidity environments?
Yes, the address plug can be used in environments with humidity levels ranging from 5% to 95% RH, non-condensing.
4. What is the power consumption of the KL4501X1-BD1?
The KL4501X1-BD1 consumes just 1 W of power, making it energy-efficient.
5. Does the KL4501X1-BD1 have built-in diagnostic features?
No, the KL4501X1-BD1 does not include diagnostic features, but it plays a crucial role in enabling smooth communication by addressing modules.
6. What is the operating temperature range for the KL4501X1-BD1?
The operating temperature range for the KL4501X1-BD1 is -20°C to 60°C.
7. What type of protection does the KL4501X1-BD1 provide?
The KL4501X1-BD1 has an IP20 rating, which means it is protected from solid objects larger than 12 mm but not from water.
8. Is the KL4501X1-BD1 compatible with other Emerson control systems?
Yes, the address plug is compatible with other Emerson systems that use the CHARM modular I/O architecture.
9. How does the KL4501X1-BD1 plug simplify the system setup?
The plug simplifies the setup by making the process of addressing and connecting CHARM I/O modules straightforward, ensuring efficient integration into the system.
10. What is the storage temperature range for the KL4501X1-BD1 address plug?
The storage temperature range for the address plug is -40°C to 85°C.
