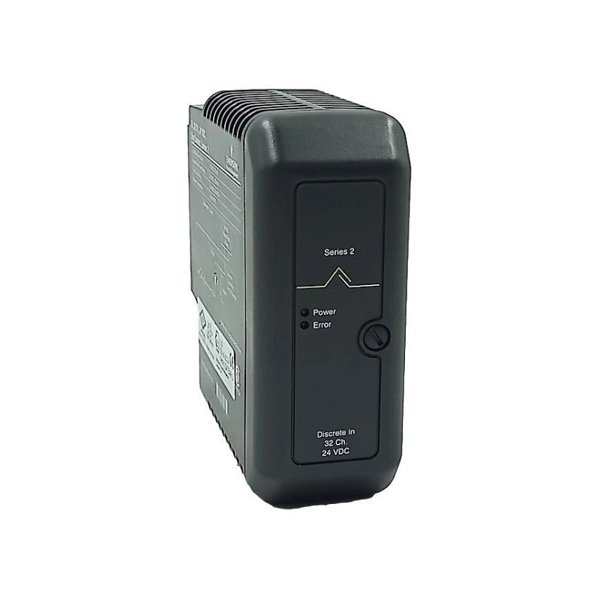

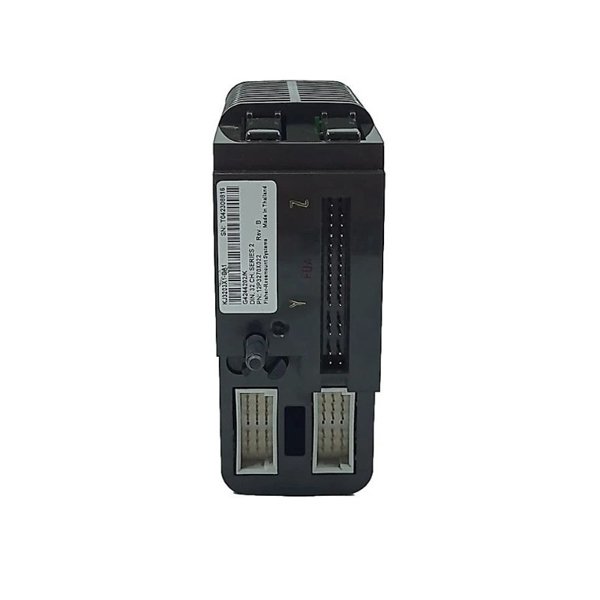

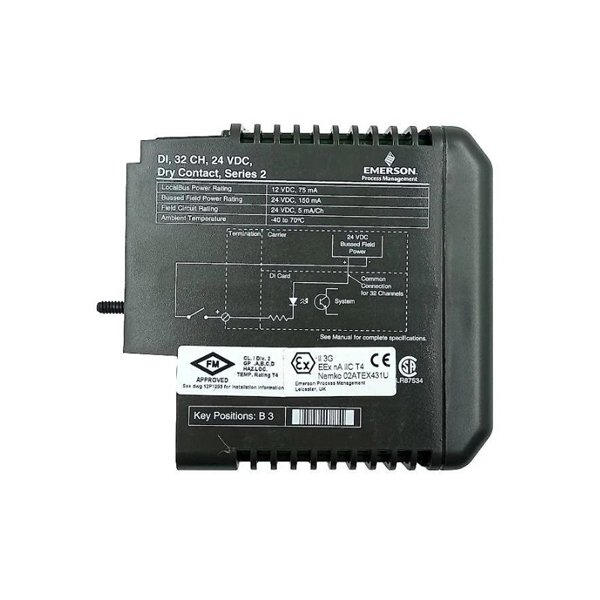

The Emerson VE3006 KJ3203X1-BA1 Digital Input Module is a high-performance component used within Emerson’s DeltaV control system platform. It is designed to provide reliable digital signal acquisition from a wide range of field devices, ensuring accurate monitoring and control of industrial processes. This module supports multiple input types, offers advanced diagnostics, and is built to withstand harsh industrial environments. It is widely applied in process automation across oil & gas, chemical, power generation, and manufacturing industries.

Technical Specifications

Product Applications

• Process Automation: Used for digital signal acquisition from switches, sensors, and field instruments.

• Safety Systems: Integration with emergency shutdown systems and interlock controls.

• Power Plants: Monitoring auxiliary equipment status such as pumps, fans, and relays.

• Chemical Industry: Real-time monitoring of valves, alarms, and protective devices.

• Oil & Gas: Signal acquisition from critical field devices in refineries and offshore platforms.

• Manufacturing: Ensuring process consistency by monitoring on/off states of machinery and equipment.

Product Advantages

• High Reliability: Engineered to perform under extreme temperature and humidity conditions.

• Advanced Diagnostics: Provides real-time feedback on channel and wiring health.

• Flexible Input Handling: Supports multiple digital input types including dry and wetted contacts.

• Ease of Integration: Seamlessly integrates with Emerson DeltaV systems for smooth configuration.

• Compact Design: Saves space in control cabinets while offering 16 channels per module.

• Reduced Downtime: Early fault detection minimizes system interruptions and maintenance costs.

FAQ

Q1: What types of digital input signals does the VE3006 KJ3203X1-BA1 support?

A1: It supports dry contact, wetted contact, and standard logic-level signals at 24 VDC.

Q2: Does the module provide isolation between channels?

A2: Yes, each channel is optically isolated to protect the system and ensure signal integrity.

Q3: How many channels are available on this module?

A3: The module provides 16 isolated digital input channels.

Q4: Can this module detect wiring or connection faults?

A4: Yes, it includes built-in diagnostics to identify open circuits, short circuits, and wiring issues.

Q5: Is the VE3006 KJ3203X1-BA1 hot-swappable?

A5: Yes, it can be replaced online without shutting down the system, ensuring minimal process disruption.

Q6: What communication protocol is used by this module?

A6: It communicates via the DeltaV system bus for seamless integration.

Q7: Does the module support redundant configurations?

A7: Yes, it is designed to be used in redundant DeltaV I/O setups for high availability.

Q8: What is the typical power consumption of this module?

A8: It consumes 3.0 W under normal operating conditions.

Q9: Can it operate in hazardous environments?

A9: Yes, it is certified for use in harsh industrial applications, including hazardous locations.

Q10: How is channel status indicated?

A10: Each channel has status feedback through diagnostics, and indications can be viewed via the DeltaV system.
