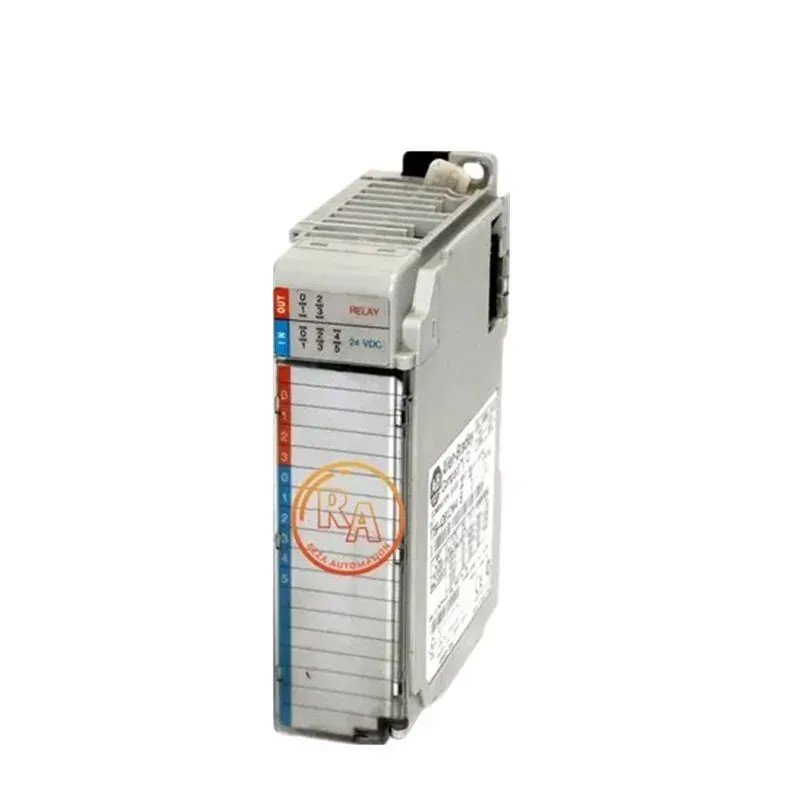

Allen-Bradley 1769-IQ6XOW4 Digital I/O Module

The 1769-IQ6XOW4 is a versatile digital I/O module for CompactLogix systems. It integrates both input and output functions in a single module, offering cost-effective solutions for various applications.

Key Features

• 6-point 24 VDC Sink or Source Input: This module supports both sink and source inputs. It provides flexibility for connecting various sensors and devices.
• 4-point VAC-VDC Relay Output: Equipped with 4 relay outputs, this module can switch both AC and DC loads, ideal for controlling diverse devices.
• Compact Design: Its compact size facilitates integration into tight spaces, saving valuable panel space.
• Status LEDs: Status LEDs offer visual indicators for module health and I/O status, ensuring easy monitoring.
• Easy Configuration: Configure the module effortlessly using Rockwell Automation programming software.

Technical Specifications

• Number of Inputs: 6
• Input Voltage: 24 VDC
• Input Type: Sink or Source
• Number of Outputs: 4
• Output Type: Relay
• Output Voltage: VAC/VDC
• Mounting: DIN rail
• Operating Temperature: 0 to 60 °C
• Dimensions: 87mm x 118mm x 67mm

Applications

The 1769-IQ6XOW4 module is suitable for:

• Machine automation
• Process control
• Packaging
• Material handling

Additional Information

• Manufacturer: Rockwell Automation
• Product Line: CompactLogix
• Catalog Number: 1769-IQ6XOW4
