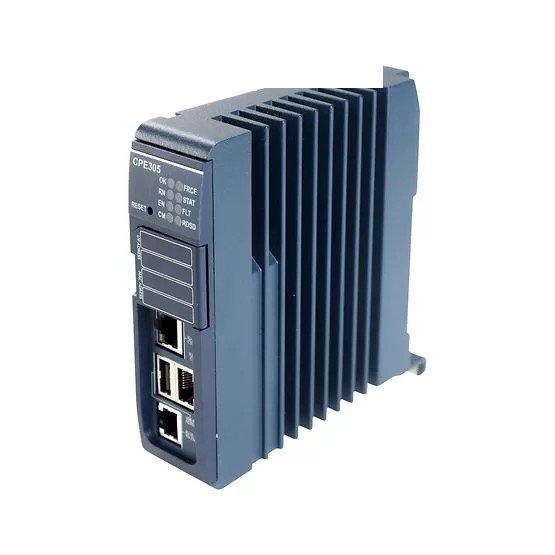

Emerson IC695CPE305 PACSystems RX3i CPE305 Controller

The IC695CPE305 is a Programmable Automation Controller (PAC) CPU from the GE Fanuc PACSystems RX3i series. It is a single-slot CPU with a 1.1 GHz processor, 5 MB of user memory, and one RS-232 and one Ethernet port. The IC695CPE305 supports a wide range of communication protocols, including Modbus TCP Master, Modbus TCP Slave, Modbus RTU Master, and SRTP.

Specifications

• Part Number: IC695CPE305
• Form Factor: Backplane
• User Memory: 6MB
• I/O: 32k Bits Discrete I/O, 32k Words for Analog I/O
• Energy Pack: Included
• Redundancy Support: Media Redundancy (MRP) with PNC001
• Ethernet Port: 2 – 2 port switch 10/100/1000
• Ethernet Protocols: SRTP Client/Server, Modbus TCP/IP, OPC UA, EGD, PROFINET, DNP3 Outstation, IEC-61850 Client, IEC-104 Server, HART passthrough
• Serial Protocols: ASCII Serial, Modbus/RTU
• Remote I/O Devices: 255 Simplex with PNC001
• USB Interface: 1x USB-A 2.0
• Environmental: 0 to 60°C
• Agency Approvals: UKCA, UL, cUL, RoHS, CCC, FCC, Reach, UL HazLoc C1D2, ATEX Zone 2
• Marine Certifications: ABS, BV, LR, DNV GL

Features

• Programming tools including tag-based programming, a library of reusable code, and a test edit mode for improved online troubleshooting
• User-friendly environment enhancing design flexibility and engineering efficiency and productivity
• Plug-and-play compatibility with PROFINET-enabled devices for secure connection of machines, data, and people
• High-speed multicore processor ensuring faster throughput without bottlenecks in information flow
• Support for various I/O types including high-density discrete I/O, universal analog (TC, RTD, Strain Gauge, Voltage, and Current configurable per channel), isolated analog, high-density analog, high-speed counter, and motion modules
• Isolated serial port for robust integration of sensors and instruments
