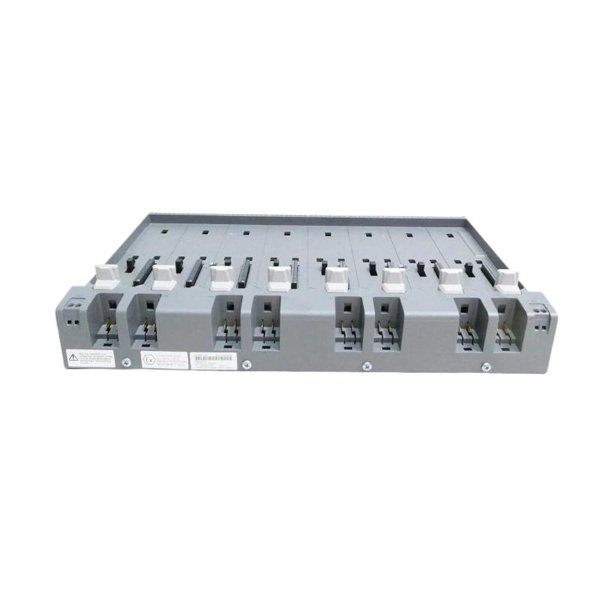

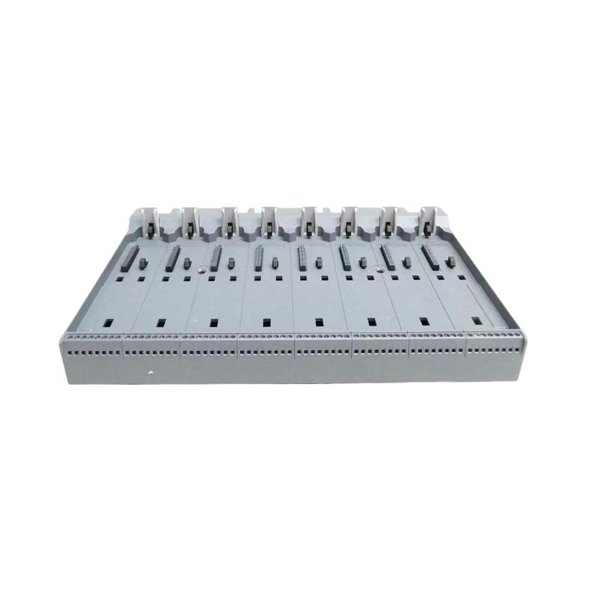

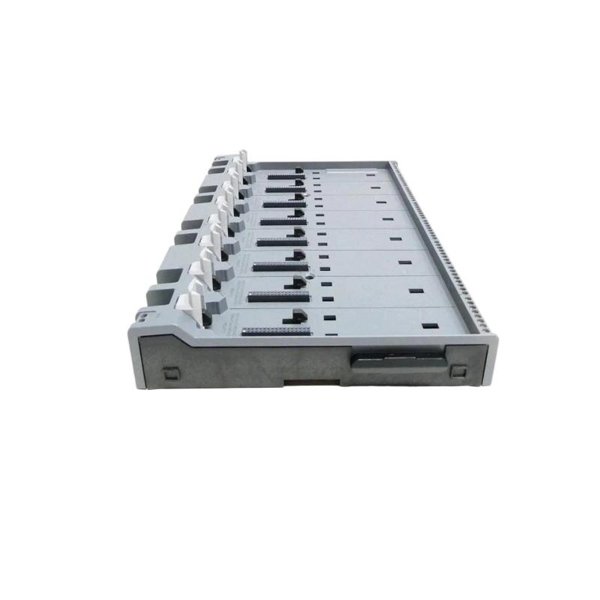

The Emerson SE4050E0C0 8-Wide I/O Interface Chassis is a robust and high-performance component designed to house and connect multiple I/O modules in industrial automation systems. This chassis provides the necessary framework to integrate various I/O cards, enabling efficient data transmission between the field devices and the control system.  the SE4050E0C0 is ideal for systems requiring high-density I/O configurations while maintaining compact dimensions. Its reliable construction and easy-to-use design make it suitable for a variety of automation applications.

Product Specifications

Product Applications

The Emerson SE4050E0C0 8-Wide I/O Interface Chassis is essential in various industrial automation environments, particularly in scenarios where high-density I/O integration is required:

• Automation Systems: Used as a central hub for connecting I/O modules, enabling the monitoring and control of field devices like sensors, actuators, and other components.

• Process Control: Ideal for industries like oil & gas, chemicals, and pharmaceuticals, where process control relies on multiple I/O modules that need to be housed in a single chassis for streamlined connectivity.

• Manufacturing Lines: In automated production lines, the chassis supports the integration of various I/O devices that help control machinery and processes in real-time.

• Energy and Power Systems: Used in power distribution and energy management systems, where reliable I/O interfaces are required to monitor and control equipment across large infrastructures.

• SCADA Systems: In SCADA applications, the SE4050E0C0 is used to consolidate and manage multiple I/O modules that provide data from remote sensors and devices, supporting remote monitoring and control.

• Building Automation: The chassis is also widely used in building automation systems to manage HVAC controls, lighting systems, security systems, and other automation tasks.

Product Advantages

• High-Density I/O Integration: With 8 wide I/O slots, this chassis supports a high density of I/O modules in a compact form, optimizing space and enabling more efficient system configurations.

• Versatile Mounting Options: The SE4050E0C0 can be easily mounted on a rack or panel, offering flexible installation options that can be adapted to different system architectures.

• Efficient Power Distribution: The chassis is designed to operate with a 24V DC power supply, ensuring reliable power distribution to the connected I/O modules.

• Enhanced Environmental Protection: With an IP20 environmental rating, it offers protection against dust and direct contact, making it suitable for industrial environments.

• Easy Maintenance and Scalability: The modular design allows for easy replacement and upgrades of I/O modules, making the system scalable for future expansion.

• Reliable Cooling Design: The passive cooling system ensures stable operation even in high-density configurations, although it is recommended to provide adequate ventilation in the surrounding environment.

• Wide Temperature Range: With an operational range of -20°C to +60°C, the chassis is reliable in both cold and hot environments.

FAQ

Q1: How do I install the SE4050E0C0 I/O Interface Chassis?

The SE4050E0C0 chassis can be mounted on a rack or panel depending on your system configuration. After installation, you can insert I/O modules into the 8 available slots and connect them according to your system’s wiring requirements.

Q2: What type of I/O modules can be installed in this chassis?

The chassis supports 8 wide I/O slots, which can accommodate a variety of I/O modules from Emerson, such as analog and digital input/output cards, communication modules, and more.

Q3: What is the power supply requirement for the SE4050E0C0?

The chassis operates on a 24V DC power supply, which is standard for most Emerson automation systems.

Q4: Can this chassis be used in outdoor environments?

The SE4050E0C0 has an IP20 rating, providing protection against dust and direct contact. It is recommended for use in indoor environments, but adequate ventilation and environmental controls should be provided to protect it in harsher conditions.

Q5: How many I/O modules can be supported by the SE4050E0C0?

The chassis can support up to 8 wide I/O modules, offering flexibility in terms of module types and configurations.

Q6: What is the recommended temperature range for operating the chassis?

The SE4050E0C0 can operate in environments with temperatures ranging from -20°C to +60°C, making it suitable for many industrial and commercial applications.

Q7: How does the cooling system work in the SE4050E0C0?

The chassis utilizes passive cooling, meaning it relies on natural airflow to cool the system. It is important to ensure proper ventilation in the surrounding environment to maintain optimal performance.

Q8: Can the SE4050E0C0 be used in hazardous environments?

The SE4050E0C0 is not rated for use in hazardous environments. If your application requires use in such an environment, consider using a more suitable, explosion-proof version of the chassis.

Q9: How do I ensure the reliability of the system with multiple I/O modules installed?

Ensure that the system is properly ventilated and maintain an ambient temperature within the specified range. Regular maintenance and checks for dust buildup will help in ensuring long-term system stability.

Q10: Can I replace I/O modules without affecting the system’s operation?

Yes, the modular design of the SE4050E0C0 allows for the easy replacement of I/O modules without disrupting the overall operation of the system.
