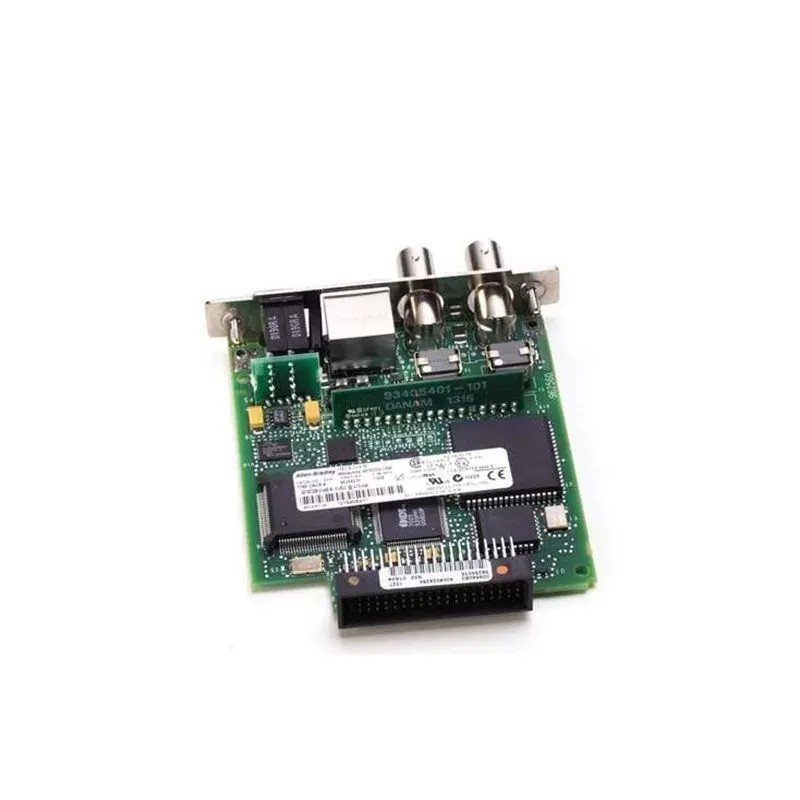

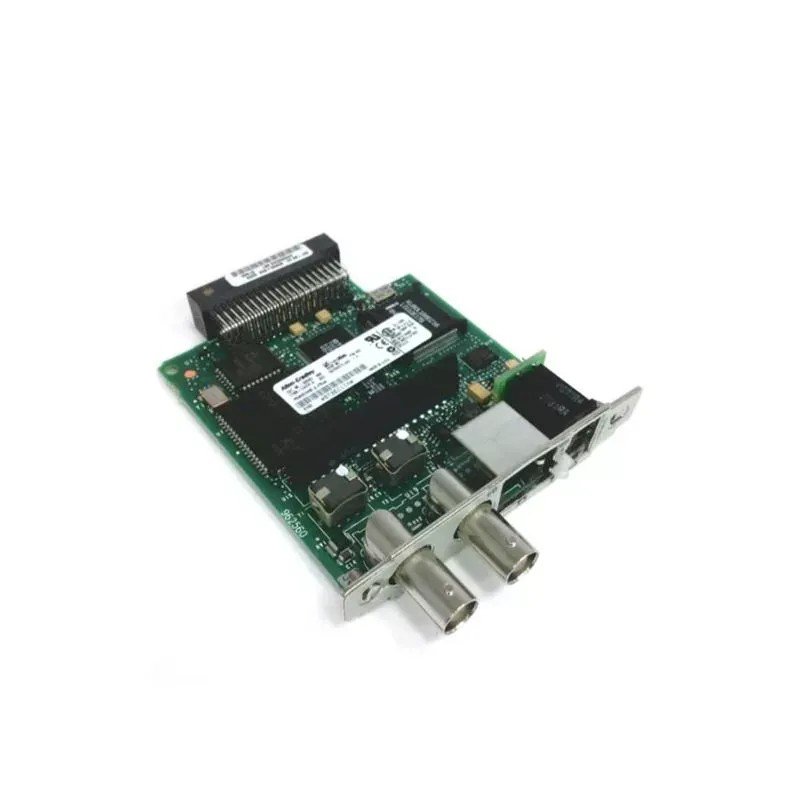

Allen-Bradley 1788-CNCR ControlNet Daughtercard

The Allen-Bradley 1788-CNCR is a versatile ControlNet daughtercard designed for FlexLogix and DriveLogix controllers. It integrates seamlessly into linear or redundant ControlNet network architectures, enhancing communication and flexibility in industrial automation applications.

Key Features

• ControlNet Compatibility: The 1788-CNCR communicates efficiently with ControlNet networks, connecting PLCs, I/O modules, and drives.
• Dual Coaxial Ports: It offers redundancy and fault tolerance with two coaxial ports, ensuring uninterrupted operations.
• Network Access Port (NAP): The module’s RJ45 port enables quick and easy access to the ControlNet network.
• High Performance: Operating at 5 Mbps, the 1788-CNCR ensures rapid and reliable communication.
• Scalability: The module supports up to 32 connections, providing room for network growth.

Technical Specifications

• Product Type: ControlNet daughtercard
• Compatible Controllers: FlexLogix, DriveLogix
• Network Topology: Linear or redundant ControlNet
• Media: Coaxial cable
• Data Rate: 5 Mbps
• Connections: 32
• Ports: 2 coaxial, 1 RJ45 (NAP)

Applications

The 1788-CNCR is ideal for various industrial applications, such as:

• Factory Automation: It connects PLCs, I/O modules, and drives to create a unified network.
• Process Control: This module monitors and controls industrial processes effectively.
• Motion Control: It coordinates motion control devices for precise movements.
