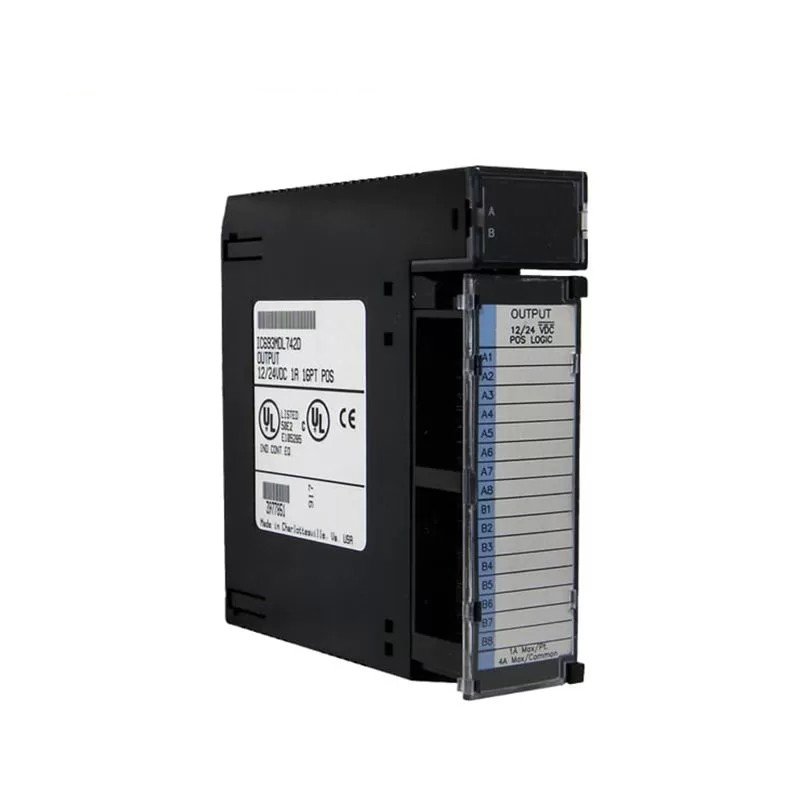

GE IC693MDL742 12/24 Volt DC Positive Logic ESCP Output Module

Name: GE IC693MDL742 12/24 Volt DC Positive Logic ESCP Output Module
Brand: General Electric
Availability: InStock

Manufacturer:General Electric

Part Number:IC693MDL742

Product Type:12/24 Volt DC Positive Logic ESCP Output Module

Series:GE Speedtronic Mark V

Stock:IN STOCK

Repair:3-7 Day

Rush Repair:24-48 Hrs.

Warranty:3 Years

Dimensions:6.81″ x 8.07″ x 2.17″ (173 x 205 x 55 mm)

Weight:3.3 lbs (1.5 kg)

Request Quote Contact Sales

Product Description

The GE Fanuc IC693MDL742 is a 12/24 volt DC Positive Logic output module for the GE Fanuc Series 90-30 PLC. It is part of the 90-30 I/O module family and is suitable for various industrial applications.

Technical Specifications

Input Voltage: 12 or 24 VDC
Output Voltage: 12 or 24 VDC (same as input voltage)
Output Current: 1 amp per point
Number of Output Points: 16
Output Arrangement: 2 banks of 8
Electronic Short Circuit Protection (ESCP): Yes
Common Ground: Yes
Power: Powered by Series 90-30 PLC backplane
Hot Swappable: Yes

Features

The module provides 16 output points arranged in two banks of eight. Each point can sink up to 1 amp of current. It includes electronic short circuit protection (ESCP) to prevent damage during a short circuit. Additionally, it features a common ground connection for all output points.

Applications

The IC693MDL742 is versatile and fits various industrial applications, such as:

Machine control
Process control
Conveying systems
Packaging machines
Robotics
