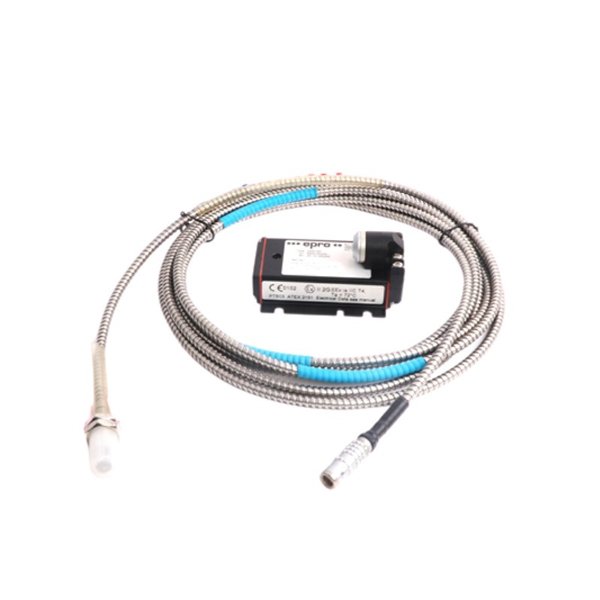

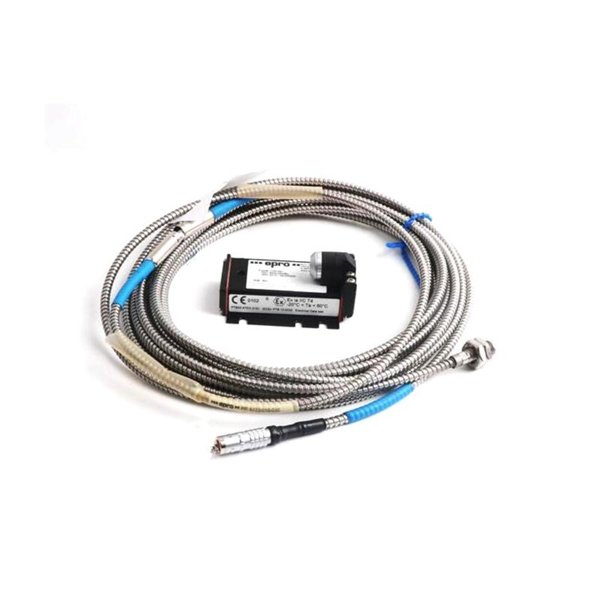

The Epro PR6424/114-021 is a 16mm eddy current sensor designed for highly accurate, non-contact measurement of displacement, vibration, and position in industrial applications. It operates based on the eddy current principle, which allows the sensor to measure the distance to a conductive target without physical contact. This makes it ideal for applications where traditional mechanical sensors would wear out or fail due to the need for direct contact with the target.

The PR6424/114-021 is particularly effective in high-speed and high-precision applications, ensuring excellent performance in both dynamic and static measurements. With a 16mm diameter probe, it is compact and can be integrated into confined spaces or tight setups where larger sensors may not fit.

Technical Specifications

Product Applications

The Epro PR6424/114-021 16mm eddy current sensor is versatile and can be used in various applications, such as:

• Vibration Monitoring: Used to monitor the vibration levels of rotating machinery, ensuring early detection of faults in motors, turbines, and pumps.

• Position Sensing: Accurately measures the position of components in automated systems, providing feedback for control systems.

• Proximity Measurement: Measures the distance between the sensor and a conductive target, useful in proximity sensing in industrial automation.

• Dimensional Measurement: Helps in precise dimensional measurement of small parts and products in quality control processes.

• Automated Testing: Used in automated testing systems, where it provides feedback about position or displacement of test objects in a variety of machinery.

• Dynamic Measurements: Ideal for measuring dynamic events such as vibrations, providing real-time feedback to control systems.

Product Advantages

• Non-Contact Measurement: The eddy current technology allows for non-contact measurement, minimizing wear and tear on the sensor and the target, making it ideal for moving machinery.

• Compact Design: The 16mm diameter probe is small and can be integrated into tight spaces, which is advantageous when working with limited space in machines or test setups.

• High Accuracy: The ±0.5% full scale accuracy ensures high precision in applications where measurement quality is critical.

• Wide Temperature Range: The sensor operates in a temperature range from -20°C to +80°C, making it suitable for diverse industrial environments.

• Real-Time Measurements: With a response time of <1ms, the sensor is capable of providing immediate data, making it ideal for high-speed applications.

• Versatile Output Options: The sensor offers 0-10V and 4-20mA analog outputs, making it compatible with various measurement and control systems.

• Rugged Design: It is built to withstand the demands of industrial environments, ensuring long-lasting and reliable performance.

FAQ

1. What is the measurement range of the Epro PR6424/114-021 sensor?

The sensor has a measurement range of up to 10 mm, which is suitable for most displacement and position measurement tasks.

2. What type of output does the Epro PR6424/114-021 provide?

The sensor provides analog output that can be either 0-10V or 4-20mA, depending on the model.

3. Can the sensor be used for high-speed applications?

Yes, the sensor is designed for high-speed applications and has a response time of less than 1 ms, which makes it suitable for dynamic measurements.

4. What types of materials can the sensor detect?

The sensor is designed to detect conductive materials such as metals, including steel, aluminum, and copper.

5. Is the Epro PR6424/114-021 sensor suitable for extreme temperature environments?

Yes, the sensor operates in a wide temperature range of -20°C to +80°C, making it suitable for various industrial conditions.

6. How accurate is the Epro PR6424/114-021 sensor?

The sensor offers an accuracy of ±0.5% of full scale, ensuring precise and reliable measurements.

7. Can the sensor be used for vibration monitoring?

Yes, the sensor is ideal for vibration monitoring in rotating machinery such as motors, turbines, and compressors.

8. What is the power requirement for the sensor?

The sensor requires a 15V to 24V DC power supply for operation.

9. Can the Epro PR6424/114-021 sensor be used in automated testing systems?

Yes, it can be used in automated testing systems where accurate displacement or position feedback is needed for control systems.

10. Is the sensor easy to integrate into existing systems?

Yes, the sensor’s 0-10V and 4-20mA output options make it easy to integrate into various systems and measurement setups.
