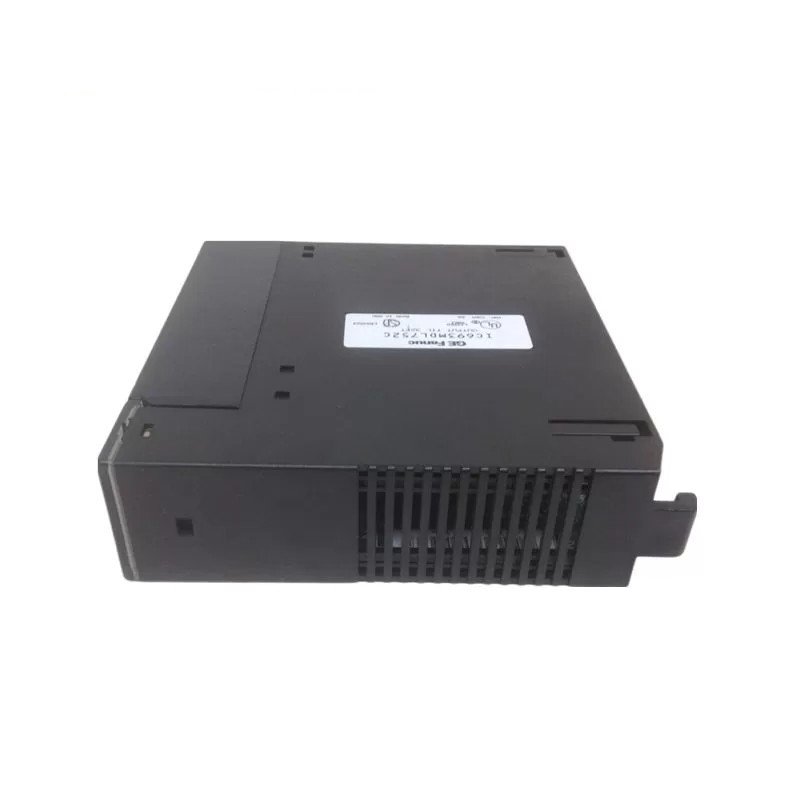

GE Fanuc IC693MDL752 Digital Output Module
Manufacturer: GE Fanuc (now Emerson)
Product Number: IC693MDL752
Category: Discrete Output Module (Series 90-30)
Output Points: 32 discrete outputs
Output Groups: 4 isolated groups of 8 outputs each
Output Modes: Dual-mode: TTL (5V) or 12/24V DC operation
Output Current (12/24V mode): 0.5A per point, 4A per group
Output Current (TTL mode): 25mA per point
Output Type: Negative logic (sinking), active low
Isolation: 1500V between field and logic side; 250V between groups
Response Time: 0.5ms max On/Off
Power Consumption: 260mA max from 5V backplane bus
LED Indicators: Per-channel status (A1-A8, B1-B8, C1-C8, D1-D8)
Connectors: Two 24-pin male connectors (Fujitsu type)
Features: Internal pull-up resistors, optocoupler isolation
System Compatibility: GE Series 90-30 PLC systems
Mounting: Any I/O slot in 5/10-slot baseplate
Product Description
The GE Fanuc IC693MDL752 is a high-performance, modular output module for the RX3i control system. It controls various electrical devices, including motors, valves, and contactors.
Technical Specifications
- Number of Channels: 32 discrete outputs
- Output Voltage: 24 VDC
- Output Current: 100 mA per channel
- Switching Frequency: Up to 100 kHz
- Protection: Includes short circuit protection
- Operating Temperature: -25°C to +70°C
Key Features
- High Performance: Delivers rapid switching with a maximum frequency of 100 kHz.
- Modularity: Easily integrates into the RX3i system, adapting to changing I/O needs.
- Robustness: Features short circuit protection to safeguard the module and connected equipment.
- User-Friendly: Simple installation and configuration process.
