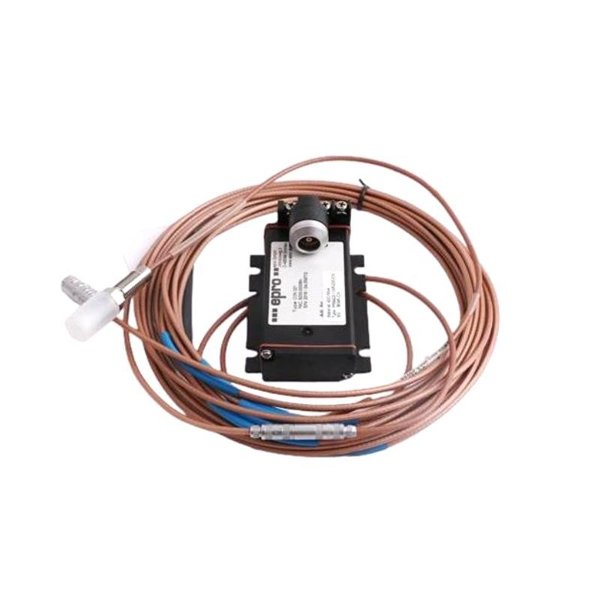

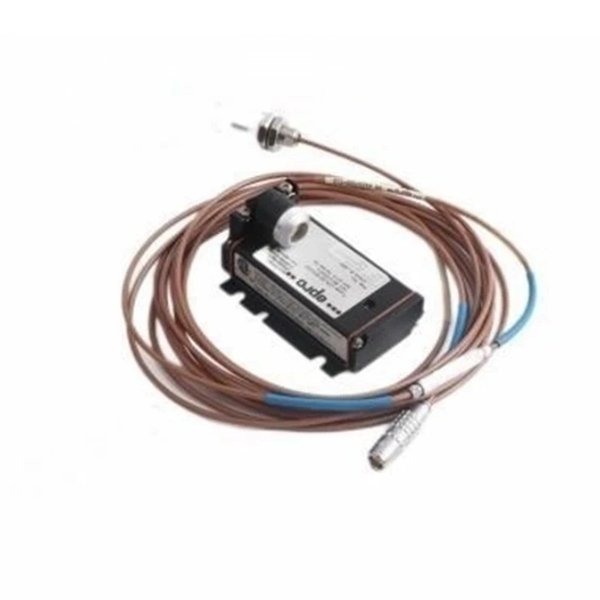

The Epro PR6424/108-100 is a 16mm Eddy Current Sensor designed to provide precise, non-contact displacement, position, and vibration measurements for critical industrial applications. Utilizing advanced Eddy Current Technology, this sensor is ideal for detecting minute displacements and vibrations in high-speed and high-precision systems. Its 16mm sensor head diameter makes it highly compact, while its non-contact design eliminates mechanical wear and tear, increasing system reliability and longevity.

The PR6424/108-100 sensor is used extensively in industries such as automotive, aerospace, power generation, and manufacturing, offering robust performance in challenging environments. Whether measuring the displacement of rotating machinery, monitoring vibration, or assessing the position of critical components, this sensor provides fast, reliable, and accurate results. Additionally, its rugged design makes it suitable for operation in harsh industrial environments.

Product Specifications

Product Applications

The Epro PR6424/108-100 16mm Eddy Current Sensor is widely used for various industrial applications that require precise, non-contact measurement and high-speed data acquisition. Some of the primary applications include:

• Machine Condition Monitoring: Ideal for monitoring the displacement and vibration of rotating machinery such as turbines, motors, and pumps. By detecting abnormalities early, it helps prevent unexpected failures and prolong equipment lifespan.

• Precision Measurement: The sensor is perfect for measuring the position or displacement of precision machinery parts, ensuring that they remain within operational tolerances.

• Rotating Equipment: It is commonly used in applications requiring real-time measurement of the displacement of rotating parts, such as shafts and rotors, to detect any signs of imbalance or misalignment.

• Automotive: In the automotive industry, it can be used to measure the displacement and vibration of engine parts, transmission systems, and suspension systems.

• Aerospace: The PR6424/108-100 is used to monitor critical aerospace components, such as engines and turbines, providing real-time feedback on system conditions and reducing the risk of failure.

• Test Rigs: Used in test benches and research environments for measuring displacement and vibration, ensuring that equipment operates within specified parameters during testing.

Product Advantages

• Non-contact Measurement: The PR6424/108-100 sensor’s non-contact design eliminates the risk of wear on both the sensor and the monitored components, ensuring reliable performance over extended periods.

• High Precision: With its Eddy Current Technology, the sensor delivers highly accurate and repeatable measurements, essential for precision-critical applications.

• Fast Response Time: The sensor has an ultra-fast response time of less than 1 millisecond, making it ideal for dynamic systems requiring real-time feedback.

• Durability: Rated with IP65 protection, the sensor is dust-tight and resistant to water jets, ensuring reliability even in harsh industrial environments.

• Compact Design: With a 16mm sensor head diameter, the sensor is compact and can be easily integrated into tight spaces in machinery.

• Wide Temperature Range: The sensor operates efficiently in temperatures ranging from -40°C to +85°C, making it suitable for both cold and hot environments.

• Minimal Maintenance: As a non-contact sensor, the PR6424/108-100 requires less maintenance compared to traditional mechanical sensors, thus reducing maintenance costs and downtime.

FAQ

1. What types of signals does the Epro PR6424/108-100 sensor provide?

   • The PR6424/108-100 offers an analog output signal in either 4-20 mA or 0-10 V, depending on the configuration.

2. What is the measurement range of the Epro PR6424/108-100 sensor?

   • The sensor’s typical measurement range is 10 mm to 50 mm, depending on the configuration and specific setup.

3. What is the operating temperature range of the sensor?

   • The PR6424/108-100 operates in a temperature range of -40°C to +85°C, making it suitable for both cold and hot environments.

4. How is the Epro PR6424/108-100 sensor mounted?

   • The sensor uses a threaded mounting system, ensuring secure and stable installation in various machinery and control systems.

5. What is the power supply requirement for the Epro PR6424/108-100?

   • The sensor operates with a 15 to 30 V DC power supply, which ensures stable performance.

6. Can the Epro PR6424/108-100 sensor be used outdoors?

   • Yes, with its IP65 protection class, the sensor is dust-tight and can resist water jets, making it ideal for both indoor and outdoor industrial use.

7. What is the response time of the Epro PR6424/108-100 sensor?

   • The sensor has a rapid response time of less than 1 millisecond, making it ideal for real-time monitoring in dynamic environments.

8. What industries commonly use the Epro PR6424/108-100 sensor?

   • The sensor is widely used in automotive, aerospace, power generation, manufacturing, and test equipment industries.

9. Why is non-contact measurement important?

   • Non-contact measurement reduces mechanical wear, increases accuracy, and extends the lifespan of both the sensor and the monitored equipment.

10. How accurate is the Epro PR6424/108-100 sensor?

    • The PR6424/108-100 provides highly accurate and reliable measurements, making it suitable for applications requiring high precision.
