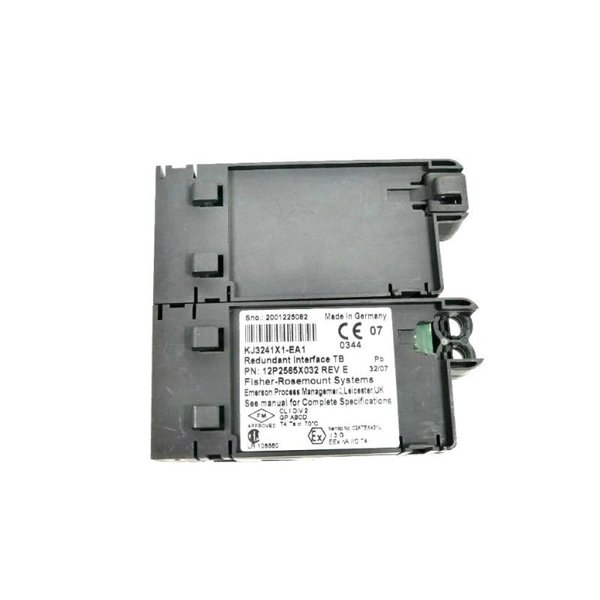

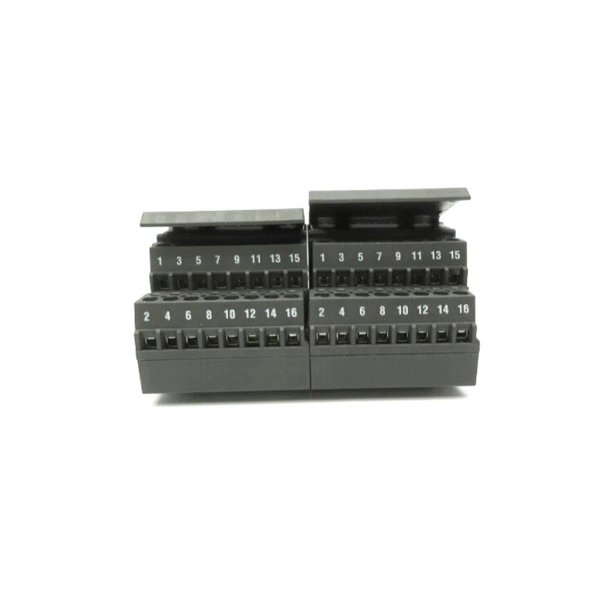

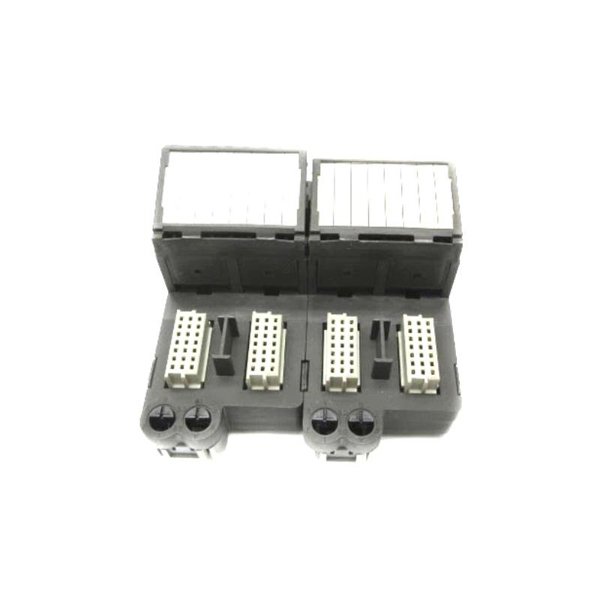

Emerson VE4036P2 KJ3241X1-EA1 Red Interface Terminal Block

Name: Emerson VE4036P2 KJ3241X1-EA1 Red Interface Terminal Block
Brand: Emerson
Availability: InStock

Manufacturer:Emerson

Product Number:VE4036P2 KJ3241X1-EA1

Product Type:Red Interface Terminal Block

Origin:USA

Dimensions:107 x 41 x 105 mm

Weight:0.45kg

Views:118

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Contact Sales

Product Description

The Emerson VE4036P2 KJ3241X1-EA1 Red Interface Terminal Block is a safety-certified component designed for use in the DeltaV™ Electronic Marshalling system, specifically within CHARM I/O Subsystems. Built for use in hazardous areas, this terminal block ensures secure electrical connections and complies with global standards for safety and environmental performance.

Technical Specifications

Parameter	Details
Model Number	KJ3241X1-EA1
Product Name	Red Interface Terminal Block
Input Power Rating	35 VDC @ 1 A
Ambient Temperature	-40°C to +70°C
Relative Humidity	5% to 95% non-condensing
Vibration Tolerance	1 mm peak-to-peak (2–13.2 Hz), 0.7 g (13.2–150 Hz)
Shock Tolerance	10 g, half-sine wave, 11 ms duration
Contaminant Rating	ISA-S71.04 Class G3 (Harsh Industrial)
Certifications	ATEX, IECEx, FM, UKEX
Insertion/Removal	Must be de-energized before handling
Calibration	Not required
Dimensions (L×W×H)	107 x 41 x 105 mm
Weight	0.45 kg

Applications

DeltaV™ Electronic Marshalling systems (CHARM I/O Subsystems)
Industrial process automation environments
Oil & Gas, Power Generation, and Chemical Processing
Hazardous area installations (Zone 2, Class I Div. 2)
Systems requiring secure and certified interface terminal connections

Advantages

Certified for hazardous locations (ATEX, IECEx, FM, UKEX)
Operates in wide temperature and humidity ranges
No calibration or maintenance required
Compact and robust design with shock and vibration resistance
Supports safe insertion/removal procedures
Fully compliant with DeltaV™ S-Series and CHARMs installation standards

FAQ

Q1: What is the primary function of the KJ3241X1-EA1?

A1: It acts as an interface terminal block for connecting CHARM I/O modules in DeltaV™ systems.

Q2: Can this terminal block be inserted or removed while the system is powered?

A2: No, it must only be inserted or removed when the system power is turned off.

Q3: Is this unit suitable for hazardous environments?

A3: Yes, it is certified for use in Zone 2 and Class I Division 2 hazardous areas.

Q4: Does the KJ3241X1-EA1 require calibration?

A4: No, this unit does not require any form of calibration.

Q5: What type of contaminants can it tolerate?

A5: It is rated for Class G3 airborne contaminants per ISA-S71.04.

Q6: What are the shock and vibration ratings of the unit?

A6: It can withstand 10 g shock and vibration levels as specified in the specs.

Q7: What installation documents are required?

A7: Refer to document 12P2046 and DeltaV™ S-Series & CHARMs Installation manuals.

Q8: Is the unit user-serviceable?

A8: No, it contains no serviceable parts and should not be disassembled.

Q9: What is the operating temperature range?

A9: The unit operates from -40°C to +70°C.

Q10: Is it compatible with all DeltaV™ systems?

A10: It is specifically designed for DeltaV™ Electronic Marshalling with CHARM I/O.
