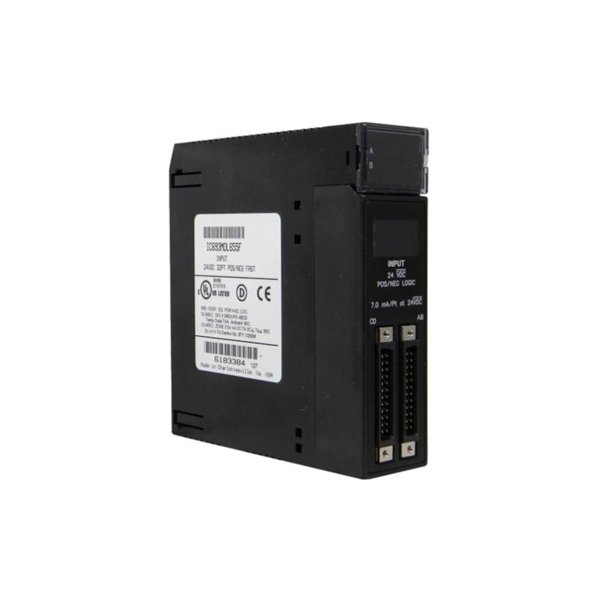

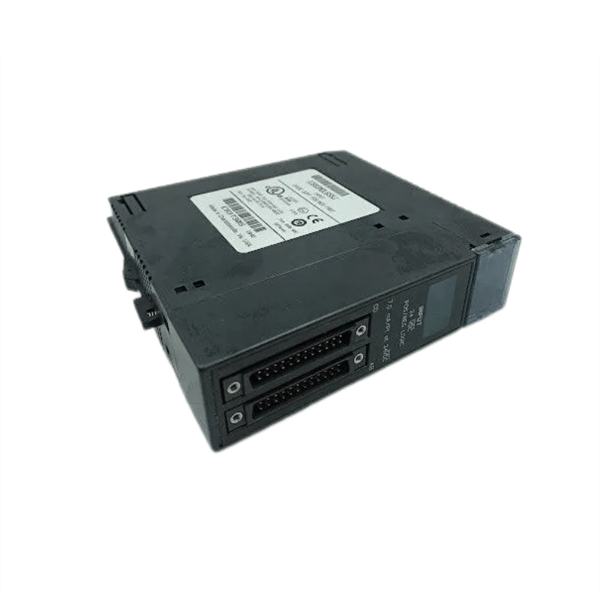

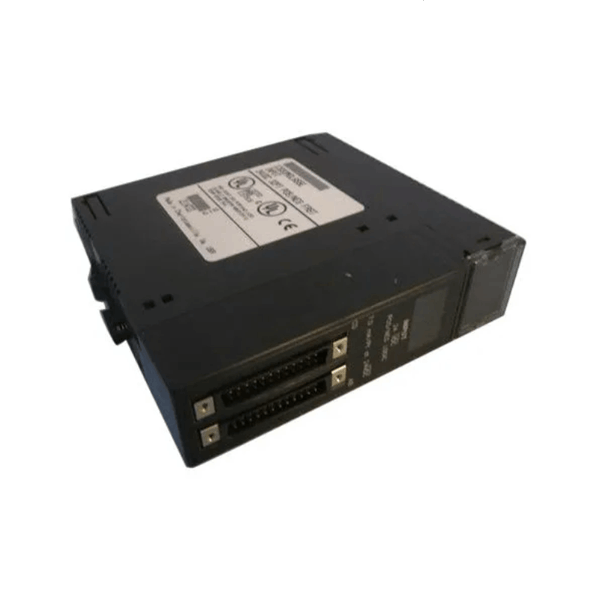

General Electric IC693MDL655J Positive/Negative Logic Input Module

The GE IC693MDL655J is a high-quality modular digital output module used in GE’s Series 90-30 programmable logic controller (PLC) system. It is designed to provide reliable and efficient digital output solutions for industrial automation and control systems. This module plays a crucial role in controlling various industrial processes and machinery by sending output signals to connected devices.

The IC693MDL655J module is suitable for various industries, including manufacturing, oil & gas, and energy, where precision and reliability are paramount.

Product Advantages

• High Reliability: Designed with industrial-grade components to ensure long-lasting performance even in demanding environments.

• Flexible Integration: Seamlessly integrates into the GE Series 90-30 PLC system for enhanced functionality.

• High Output Capability: Offers multiple output channels, making it ideal for controlling high-demand systems.

• Robust Design: Built to withstand extreme industrial environments, ensuring stable operations.

• Easy Installation: Can be installed quickly with minimal downtime, optimizing productivity.

• Efficient Power Consumption: The module is designed to operate with low power consumption, improving energy efficiency.

Technical Specifications

Applications

• Industrial Automation: Ideal for controlling actuators, solenoids, and other output devices in industrial automation systems.

• PLC Systems: Commonly used in control systems built on the GE Series 90-30 platform.

• Machine Control: Used in manufacturing machinery for controlling various automated processes such as assembly lines, packaging systems, etc.

• Energy Sector: Suitable for control in power generation plants where stable and reliable outputs are necessary.

• Oil & Gas: Helps in controlling process equipment, valves, and motors in harsh environments like refineries and drilling sites.

Installation Instructions

1. Ensure Safety: Before installing the IC693MDL655J module, power off the system to avoid any electrical hazards.

2. Positioning: The module should be installed in the correct slot of the GE Series 90-30 PLC rack to ensure proper connectivity.

3. Wiring: Connect the digital output wires to the appropriate channels on the module, ensuring correct polarity and voltage ratings.

4. Power Up: After installation, restore power to the system and verify the module is functioning correctly using the PLC’s diagnostic tools.

5. Testing: Perform operational tests to ensure the outputs are being triggered correctly.

FAQ

Q1: What is the primary function of the GE IC693MDL655J module?

A1: The primary function of the IC693MDL655J module is to provide digital outputs for controlling various devices in industrial automation systems.

Q2: Can this module be used with other GE PLC models?

A2: This module is specifically designed for the GE Series 90-30 PLC system and may not be compatible with other models.

Q3: What is the maximum current that can be supplied by each output channel?

A3: Each output channel can supply up to 0.5A of current.

Q4: What is the operating temperature range for this module?

A4: The operating temperature range is 0°C to 60°C (32°F to 140°F).

Q5: How do I install this module?

A5: Installation involves inserting the module into the correct slot of the GE Series 90-30 PLC rack, wiring the output devices, and powering up the system.

Q6: Is this module suitable for controlling high-power devices?

A6: While the IC693MDL655J is suitable for controlling low-power devices (0.5A per channel), high-power devices may require additional interfacing components like relays.

Q7: Can this module be used in hazardous environments?

A7: The module is designed for industrial environments but may not be suitable for highly hazardous locations without additional protection.

Q8: What is the power consumption of the module?

A8: The module consumes 50mA at 5V DC.

Q9: What is the maximum number of channels I can use on a single module?

A9: This module provides 16 output channels.

Q10: Does the module support both sinking and sourcing outputs?

A10: Yes, the IC693MDL655J supports both sinking and sourcing output configurations.
