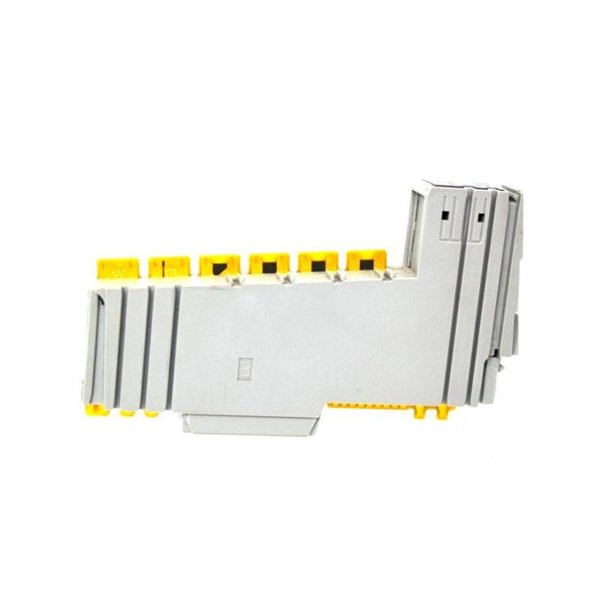

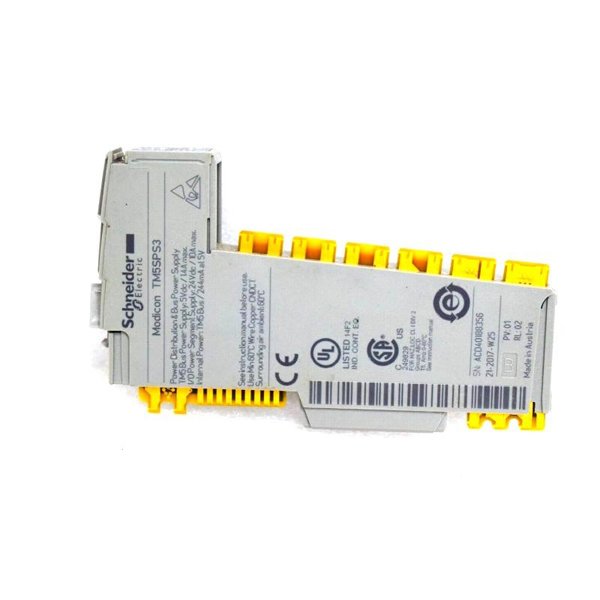

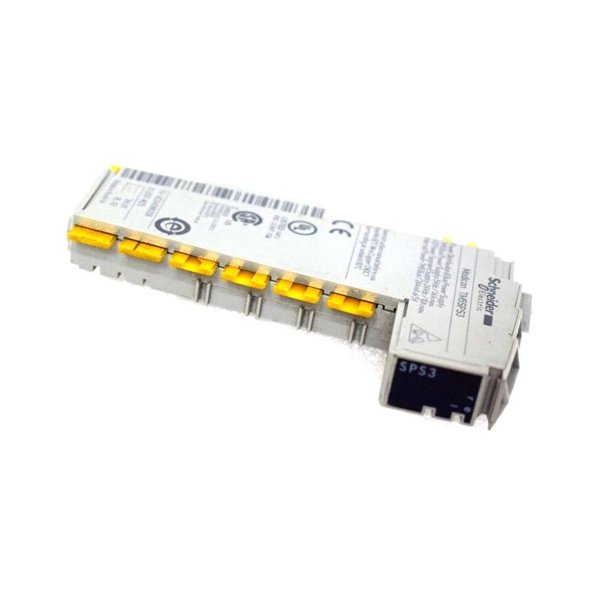

The Schneider TM5SPS3 is a compact and efficient power distribution module designed for the Modicon TM5 system. It supplies internal power to TM5 modules, ensuring stable operation across distributed automation architectures. Its small size makes it ideal for installations with limited space.

Technical Specifications

Applications

• Industrial automation systems

• Machine control panels

• Modular I/O architectures

• Distributed control systems

• Compact and scalable PLC systems

Product Advantages

• Compact size for space-constrained installations

• Easy DIN rail mounting for quick integration

• Reliable 24 VDC power distribution to I/O modules

• Part of a modular and flexible system

• Enhances system reliability and safety

• Compatible with TM5 interface and extension modules

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the TM5SPS3?

A1: It distributes 24 VDC power to TM5 system modules.

Q2: Is this module required for every TM5 setup?

A2: Yes, it’s essential for supplying power within the system.

Q3: Can I use TM5SPS3 with third-party systems?

A3: No, it is specifically designed for the Modicon TM5 system.

Q4: How is the TM5SPS3 mounted?

A4: It is mounted on a DIN rail, allowing quick and secure installation.

Q5: Does it support hot-swapping?

A5: No, modules must be powered down before removal or insertion.

Q6: What protection features are included?

A6: The module is IP20-rated and integrates electronic short-circuit protection.

Q7: What is the operating voltage range?

A7: It operates with a nominal voltage of 24 VDC.

Q8: What are the dimensions and weight of the module?

A8: 49.4 x 25 x 99 mm, and 0.025 kg.

Q9: Can this module be used in outdoor environments?

A9: No, it is intended for indoor use in control cabinets.

Q10: How many modules can one TM5SPS3 power?

A10: It can power several TM5 modules, depending on system load.
