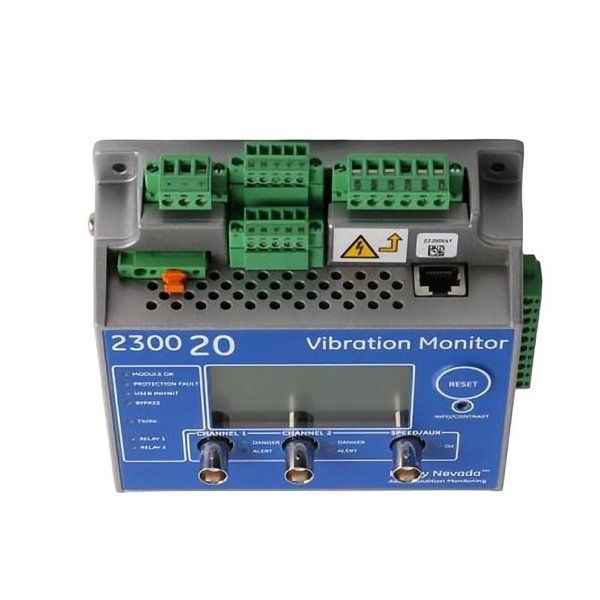

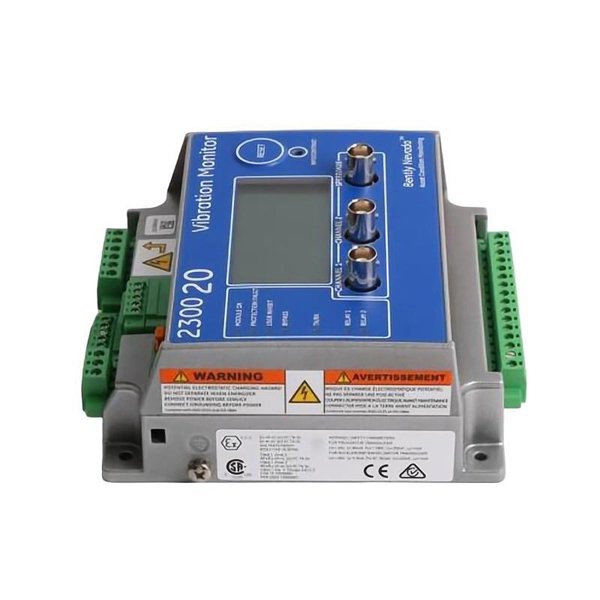

The Bently Nevada 2300/20-02 Vibration Monitor is a reliable, advanced monitoring device engineered for continuous machinery protection and condition monitoring. As part of the Bently Nevada 2300 series, this monitor provides high-accuracy vibration measurement and diagnostic capabilities for critical rotating equipment such as motors, pumps, compressors, and fans. Designed with dual-channel functionality, the 2300/20-02 offers superior monitoring flexibility, ensuring early detection of mechanical faults like imbalance, misalignment, bearing wear, and resonance.

The unit integrates seamlessly with modern control systems through Modbus protocols and features configurable relay outputs for alarms and machine protection. With its rugged design, the monitor is well-suited for harsh industrial environments such as power generation, petrochemical plants, and manufacturing sectors.

Product Specifications

Applications

The Bently Nevada 2300/20-02 is widely adopted across multiple industries where machinery uptime and reliability are critical:

• Power Generation: Continuous monitoring of turbines and auxiliary machinery to prevent costly downtime.

• Oil & Gas: Protects pumps, compressors, and fans operating in hazardous and high-load environments.

• Petrochemical Plants: Ensures operational integrity of critical rotating equipment under severe conditions.

• Industrial Manufacturing: Facilitates predictive maintenance strategies for motors, blowers, and gearboxes.

• Pulp & Paper Industry: Protects heavy-duty rotating assets, minimizing production disruptions.

• Water Treatment Plants: Monitors pumps and agitators for vibration anomalies.

Product Advantages

• Dual-Channel Monitoring: Simultaneously tracks two independent vibration signals for comprehensive machine health assessment.

• Flexible Sensor Compatibility: Works with proximity probes, velocity sensors, and accelerometers for versatile monitoring.

• Advanced Communication: Equipped with Modbus TCP/IP and Modbus RTU for seamless integration into control systems.

• Customizable Alarm Configuration: Four programmable relay outputs for alarm and trip conditions.

• Robust Design: Operates reliably in harsh industrial environments with wide temperature tolerance.

• Supports Predictive Maintenance: Enables trend analysis and early fault detection to prevent unscheduled outages.

• Compact Footprint: Ideal for panel-mounted installations in control cabinets.

FAQ

1. What types of input signals can the 2300/20-02 monitor accept?

   It supports proximity probes, velocity sensors, and accelerometers.

2. Does the monitor provide real-time vibration analysis?

   Yes, it provides continuous real-time monitoring of vibration parameters.

3. Can the monitor store historical vibration data?

   Yes, it can log vibration trend data for analysis and predictive maintenance.

4. Is it possible to integrate the monitor into a DCS or SCADA system?

   Yes, using Modbus TCP/IP or Modbus RTU protocols.

5. What is the frequency range supported by this monitor?

   Typically 0.5 Hz to 10 kHz, depending on the connected sensor type.

6. How many alarm relays does the monitor have?

   It provides four configurable relay outputs for alarms and trips.

7. Can the 2300/20-02 detect imbalance and misalignment?

   Yes, it detects mechanical faults such as imbalance, misalignment, and bearing issues.

8. What is the power supply requirement for this model?

   It requires 24 VDC with a ±10% tolerance.

9. Is the device suitable for hazardous area applications?

   Yes, with the correct installation and certified components, it can be used in hazardous zones.

10. Does the monitor support temperature monitoring?

    Yes, it supports temperature measurement when paired with compatible sensors.
