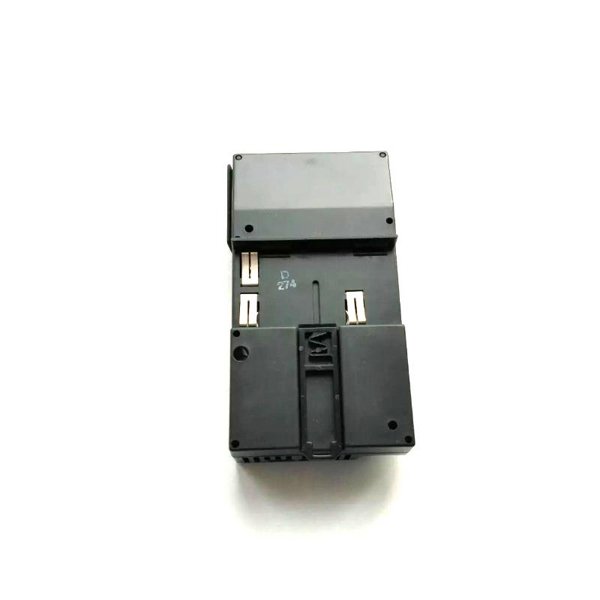

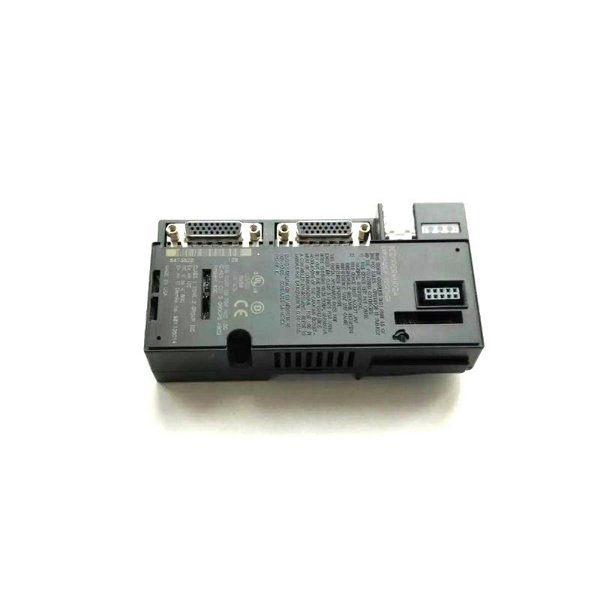

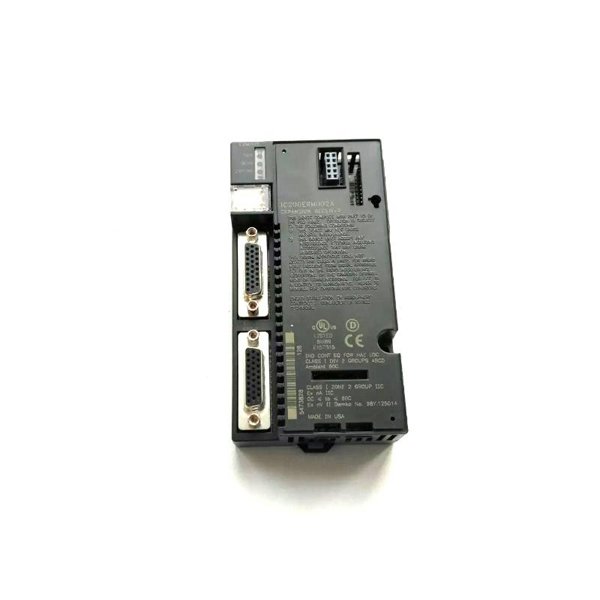

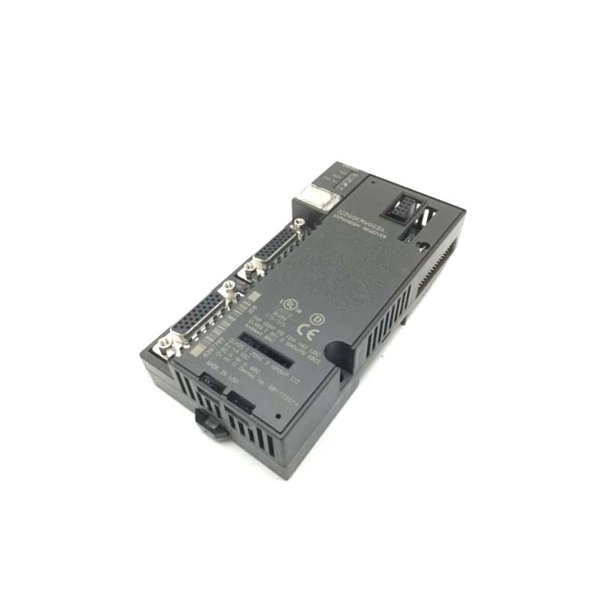

​The GE Fanuc IC200ERM002C is a non-isolated Expansion Receiver Module designed for the VersaMax series of programmable logic controllers (PLCs). This module facilitates the expansion of I/O capabilities by interfacing additional modules to the main PLC system, thereby enhancing its functionality and flexibility in various industrial applications.​

Product Specifications

Product Applications

The IC200ERM002C module is employed in various industrial sectors to enhance the scalability and adaptability of control systems. Its primary applications include:​

• Manufacturing Automation: Integrating additional input and output modules to accommodate complex manufacturing processes.​

• Process Control Systems: Expanding the control capabilities in industries such as chemical processing, oil and gas, and power generation.​

• Material Handling: Enhancing the control of conveyor systems, robotic arms, and other automated material handling equipment.​

• Building Management Systems: Extending control functionalities for lighting, HVAC, and security systems within large facilities.​

Product Advantages

• Scalability: Enables the addition of multiple I/O modules, allowing the control system to grow with the operational needs.​

• Flexibility: Compatible with both single-ended and multi-rack expansion configurations, providing versatile deployment options.​

• Compact Design: Its slim profile facilitates easy integration into existing control panels without requiring significant space.​

• User-Friendly Indicators: Equipped with LED indicators for power and expansion bus status, simplifying diagnostics and maintenance.​

• Reliable Communication: Supports data transfer rates of up to 5 Mbps, ensuring efficient and timely data exchange between modules.​

Frequently Asked Questions (FAQ)

1. What is the primary function of the IC200ERM002C module?

   • The IC200ERM002C serves as a non-isolated expansion receiver module, allowing for the addition of up to 56 I/O modules to a VersaMax PLC system.​

2. How many modules can be connected using this expansion receiver?

   • It supports up to 7 groups, with a maximum of 8 modules per group, totaling 56 modules.​

3. What are the power consumption specifications of the IC200ERM002C?

   • The module consumes 70 mA with a 5V backplane and 20 mA with a 3.3V backplane.​

4. What mounting options are available for this module?

   • The IC200ERM002C can be mounted on a DIN rail or directly onto a panel, providing flexibility in installation.​

5. What are the operating temperature limits for this module?

   • It operates within a temperature range of -20°C to +60°C, suitable for various industrial environments.​

6. Does the module provide any status indicators?

   • Yes, it features three on-board LED indicators that display device status, aiding in diagnostics and troubleshooting.​

7. Is the IC200ERM002C compatible with both single-ended and multi-rack systems?

   • Yes, it can be used in both configurations, with cable length limitations of 1 meter for single-ended and 15 meters for multi-rack systems.​

8. What are the dimensions and weight of the module?

   • The module measures 66.8 x 128 x 50 mm, weighing 0.222 kg.​

9. What type of communication ports does the module have?

   • It is equipped with two 26-pin female D-shell expansion ports for inbound and outbound connections.​

10. Can the module be used with additional power supplies or boosters?

    • Yes, additional power supplies or boosters can be connected to the main power supply on the expansion module to provide adequate power to all connected devices.
