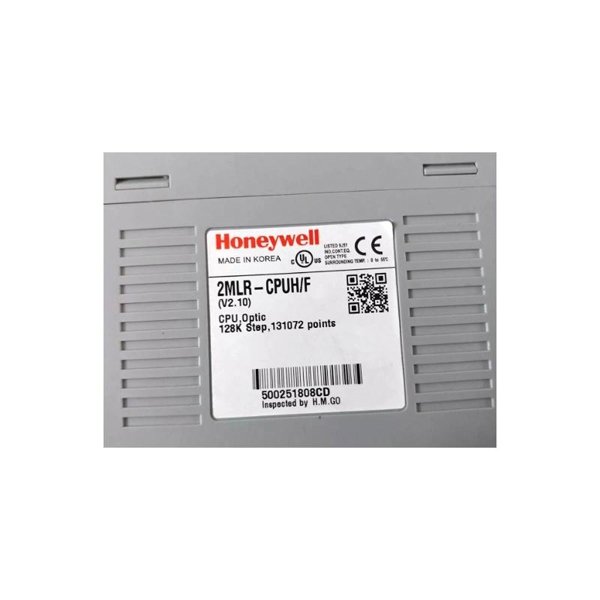

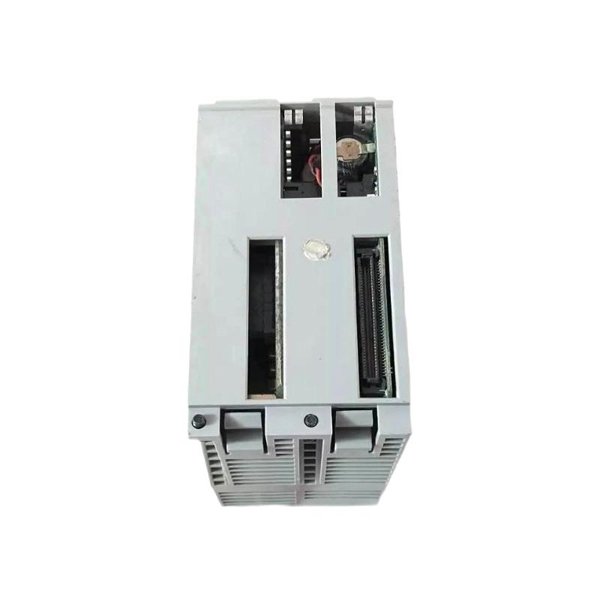

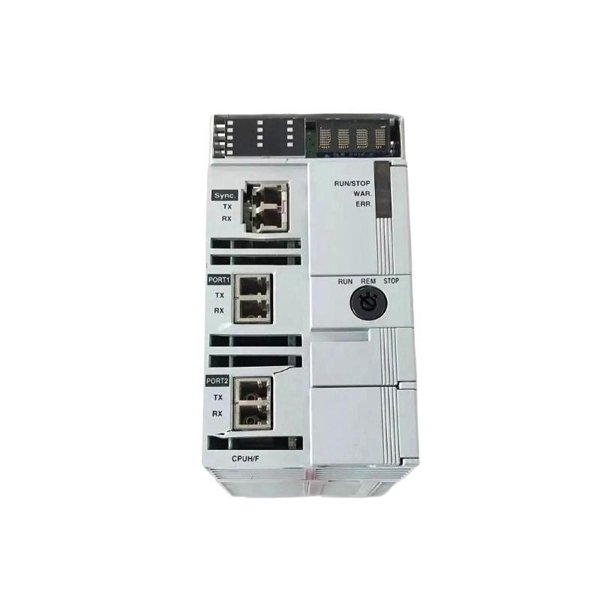

The Honeywell 2MLR-CPUH/F-CC CPU Module is a pivotal component of the MasterLogic-200 series, engineered to deliver high-speed and reliable control for industrial automation systems. This module enhances the Experion network by providing robust logic, interlock, sequence, and batch control capabilities.

Product Specifications

Applications

The 2MLR-CPUH/F-CC module is integral to various industrial environments requiring precise and reliable control, including:

• Process Control Systems: Managing complex processes in industries such as chemical, oil and gas, and pharmaceuticals.
• Manufacturing Automation: Controlling assembly lines, robotic systems, and machinery in manufacturing plants.
• Power Generation: Overseeing operations in power plants to ensure efficient energy production.
• Water Treatment Facilities: Regulating processes in water and wastewater treatment plants.

Advantages

• High Performance: Equipped with a powerful CPU core, it efficiently handles complex logic operations and control tasks.
• Flexible Programming: Supports multiple IEC-61131-3 standard programming languages, providing versatility in application development.
• Robust Communication: Offers extensive networking capabilities with support for various protocols, ensuring seamless integration with other devices.
• Enhanced Reliability: Supports redundant configurations, minimizing system downtime and enhancing operational reliability.
• Compact Design: Its compact form factor allows for efficient use of space within control cabinets.

FAQs

1. What is the primary function of the 2MLR-CPUH/F-CC module?

   • It serves as the central processing unit in Honeywell’s MasterLogic-200 series PLC systems, managing control and data processing tasks.

2. Which programming languages are supported by this module?

   • It supports IEC-61131-3 standard languages, including Ladder Diagram (LD), Sequential Function Chart (SFC), and Structured Text (ST).

3. Does the 2MLR-CPUH/F-CC support network communication?

   • Yes, it supports various communication interfaces such as Fast Ethernet, serial RS232C/422/485, and protocols like Profibus-DP, DeviceNet, and MODBUS ASCII/RTU/TCP.

4. What redundancy features does this module offer?

   • It supports redundant configurations, including CPU, power supply, and I/O bus redundancy, enhancing system reliability.

5. What are the dimensions and weight of the module?

   • Dimensions is 150 x 100 x 50 mm and weighs 0.12 kg.

6. In what temperature range can the module operate?

   • It operates effectively in temperatures ranging from -10°C to +60°C (14°F to 140°F).

7. Is the module certified for industrial use?

   • Yes, it holds certifications such as CE, UL, and cUL, ensuring compliance with industry standards.

8. Can this module be integrated into existing Honeywell automation systems?

   • Yes, it is designed for seamless integration with Honeywell’s MasterLogic-200 series and other compatible systems.

9. What is the significance of supporting multiple programming languages?

   • It provides flexibility for developers to choose the most suitable language for their application, enhancing programming efficiency.

10. How does the redundancy support enhance system reliability?

    • Redundancy ensures that if one component fails, another can take over, minimizing system downtime and maintaining continuous operation.
