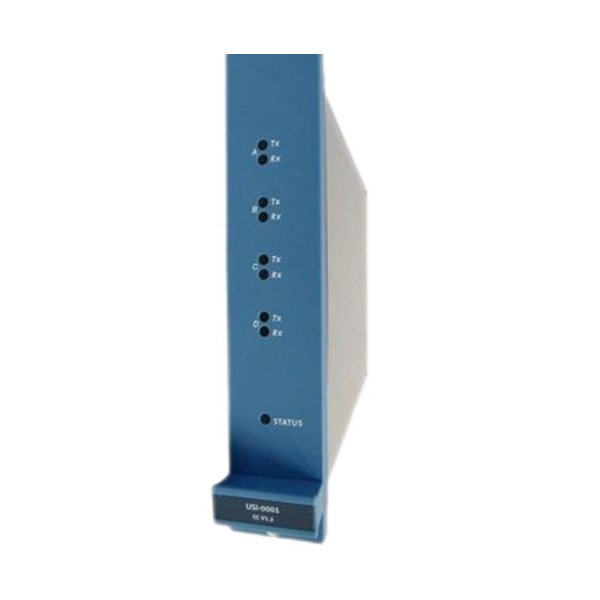

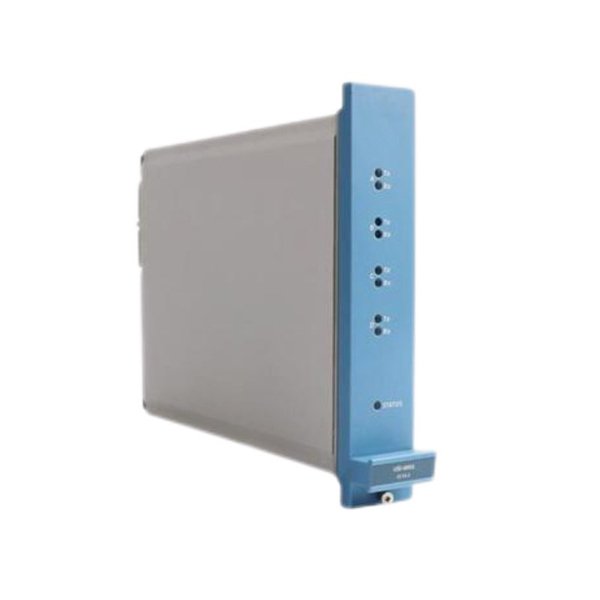

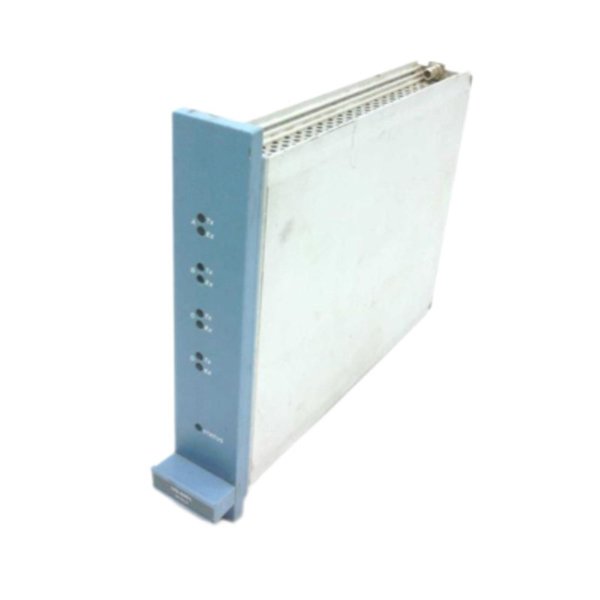

The Honeywell FS-USI-0001 is a Universal Safety Interface (USI) Module that serves as a critical communication and interfacing component in Honeywell’s Safety Manager and Fail Safe Controller (FSC) platforms. This highly versatile module supports a wide range of interface functions, enabling integration of various safety-related signals and systems into the overall safety architecture. The FS-USI-0001 ensures deterministic communication, fault tolerance, and safety integrity across complex automation networks.

Designed for SIL 3 safety instrumented systems, the FS-USI-0001 can handle both analog and digital I/O signals, act as a communication buffer, or perform as a gateway between subsystems, depending on configuration. It is used in systems requiring redundant architectures, precise synchronization, and seamless integration between third-party devices and Honeywell’s safety infrastructure.

Key Features

• SIL 3 Certified: Complies with IEC 61508 standards for safety-critical systems

• Universal Interface Capability: Supports various signal types including digital I/O, analog I/O, and communication buses

• Flexible Configuration: Adaptable to multiple interface functions such as signal conversion, bridging, and buffering

• Redundancy Support: Fully compatible with redundant architectures in safety systems

• System Synchronization: Maintains timing accuracy and coordination across safety logic solvers

• Rugged Industrial Design: Suitable for harsh industrial environments

• Secure Communication: Ensures high integrity data transfer between subsystems

• DIN Rail Mountable: Compact form factor with easy mounting and installation

• Diagnostic LEDs: Visual indication of module health, status, and activity

Technical Specifications

Industry Applications

• Oil & Gas: Integrates safety loops, fire/gas systems, and turbine control networks

• Power Generation: Facilitates safe and reliable communication in turbine protection systems

• Chemical & Petrochemical: Used for interfacing between SIS and control subsystems

• Pharmaceutical: Ensures compliant and validated data handling in safety-critical processes

• Water Treatment: Interfaces alarms and interlocks in safety monitoring systems

• Industrial Manufacturing: Acts as a link between production safety devices and control logic solvers

Product Advantages

• Versatile Integration: Interfaces analog, digital, and serial signals into safety systems

• Certified Safety: Provides peace of mind with SIL 3 certification and robust system diagnostics

• Compact and Efficient: Saves panel space while maintaining high performance

• System Flexibility: Reduces the need for multiple interface modules through its universal design

• Redundancy-Compatible: Built for use in high-availability systems with dual or triple redundancy

• Cost Efficiency: Reduces hardware costs by combining multiple interface functions into one module

• Simple Maintenance: Diagnostic LEDs simplify troubleshooting and reduce downtime

Frequently Asked Questions (FAQ)

1. Q: What is the main function of the FS-USI-0001 module?

   A: It acts as a universal interface for analog, digital, and serial communication signals in safety systems.

2. Q: Is the FS-USI-0001 SIL certified?

   A: Yes, it is certified to SIL 3 under IEC 61508 for safety-critical applications.

3. Q: What types of signals can this module interface with?

   A: It can handle analog inputs/outputs, digital inputs/outputs, and serial communication.

4. Q: Does it support redundant system configurations?

   A: Yes, it is designed to operate in redundant architectures.

5. Q: What is the power supply requirement?

   A: It requires a 24 VDC supply, with an operating range of 18–30 VDC.

6. Q: How is the FS-USI-0001 mounted?

   A: It is DIN rail mountable, standard 35 mm rail per EN 60715.

7. Q: What protection features are included?

   A: It includes surge protection, reverse polarity protection, and overvoltage protection.

8. Q: What kind of diagnostic tools are available?

   A: LED indicators provide visual status for power, communication, fault, and I/O activity.

9. Q: What types of communication protocols are supported?

   A: RS-485, configurable serial ports, and Honeywell proprietary safety protocols.

10. Q: In what industries is this module commonly used?

    A: It is widely used in oil & gas, power, chemical, pharmaceutical, and industrial automation sectors.
