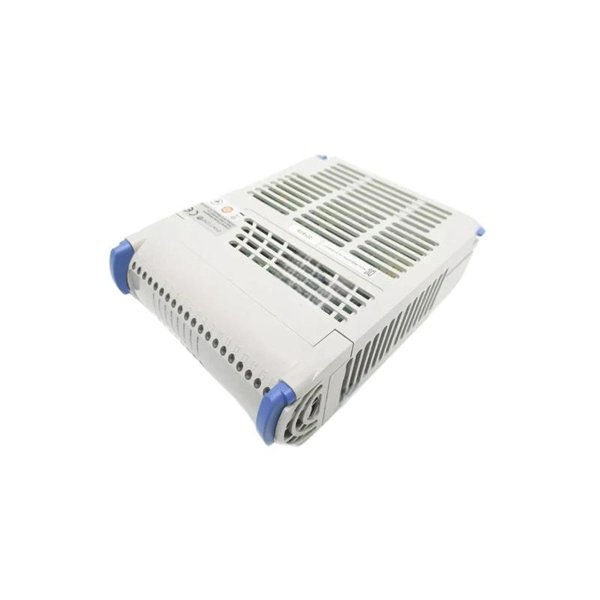

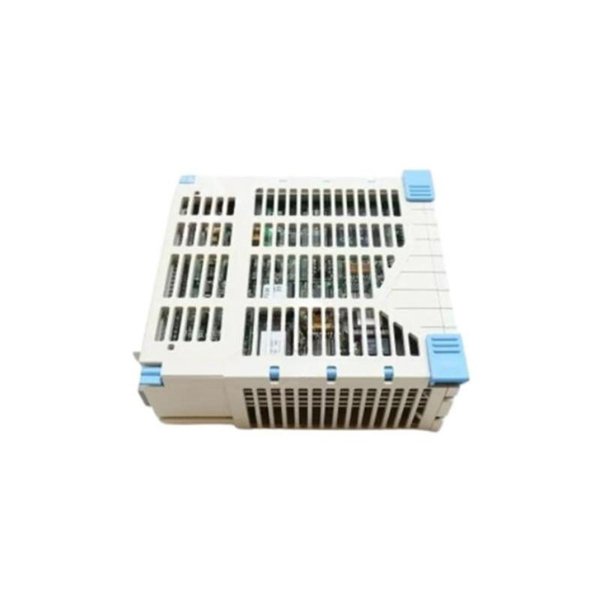

The Ovation 1C31174G33 Loop Interface Module is a critical component of Emerson’s Ovation Distributed Control System (DCS), designed specifically to manage and condition analog signals used in closed-loop process control. This module provides reliable signal interfacing for analog current or voltage loops, ensuring precise data acquisition and accurate process response within industrial automation systems.

Engineered to operate in real-time environments, the 1C31174G33 allows seamless communication between field devices and control processors. Its architecture ensures robust performance under harsh environmental conditions, supporting long-term system integrity in complex industrial operations such as power generation, water treatment, chemical processing, and more.

Product Specifications

Applications

The 1C31174G33 Loop Interface Module is designed for precise analog signal interfacing and is deployed in a wide range of industrial and infrastructure control systems. Common use cases include:

1. Power Generation Plants

   Ensures accurate measurement and control of turbine, boiler, and auxiliary systems using analog feedback signals.

2. Water & Wastewater Treatment

   Provides reliable signal conditioning for flow meters, pressure sensors, pH analyzers, and other field devices.

3. Chemical and Petrochemical Plants

   Maintains control precision by interfacing with process transmitters used in temperature, level, and pressure control.

4. Oil & Gas Facilities

   Connects instrumentation loops in remote terminal units (RTUs) and distributed control setups for upstream and downstream operations.

5. Pharmaceutical Manufacturing

   Supports GMP-compliant data acquisition and closed-loop control in cleanroom and process environments.

6. Metals & Mining Operations

   Handles rugged analog signal inputs from machinery and field sensors in highly variable industrial conditions.

Advantages

1. High Accuracy and Resolution

   Offers precise signal processing with 12–16-bit resolution, supporting critical control loops with minimal error margin.

2. Channel Isolation

   Each analog channel is electrically isolated to prevent ground loops and interference—ideal for noisy environments.

3. Compact and Modular Design

   Space-efficient form factor that fits standard Ovation chassis, allowing dense I/O installations.

4. Real-Time Diagnostics

   Onboard diagnostics monitor loop health and report issues like open circuits or signal faults, reducing downtime.

5. Wide Signal Compatibility

   Accepts both current and voltage inputs on each channel, offering flexibility for a range of instrumentation.

6. Reliable in Harsh Conditions

   Designed to withstand industrial temperatures, humidity, and vibration—ensuring long-term field reliability.

7. Fast Data Update Rate

   Supports rapid signal sampling, enabling the control system to react promptly to real-time process variations.

8. Easy Integration

   Plug-and-play with Ovation DCS platform, requiring no external signal conditioners or converters.

FAQ (Frequently Asked Questions)

1. What signal types are supported by the 1C31174G33 module?

It supports both 4–20 mA current loops and 1–5 VDC voltage inputs, selectable per channel.

2. How many analog input channels does the module offer?

There are 8 individually isolated analog input channels.

3. Is the module hot-swappable?

Yes, it can be replaced while the system is running, provided the Ovation chassis supports hot-swapping.

4. Does this module offer signal isolation?

Yes, each channel is isolated from others and from ground to prevent interference.

5. What is the typical update rate of signal processing?

The module updates readings every 10 milliseconds.

6. Can the module operate in outdoor or remote environments?

Yes, it is suitable for remote panels and harsh environments, within the specified temperature range.

7. What kind of diagnostics does the module support?

It offers loop integrity checks and real-time fault detection such as wire breaks or signal loss.

8. Is this module compatible with legacy Ovation systems?

Yes, it integrates smoothly with both legacy and current-generation Ovation DCS systems.

9. Does it support both current and voltage inputs simultaneously?

Yes, but each channel must be configured individually for either current or voltage—not both at the same time.

10. What is the installation method for the module?

It is designed to be rack-mounted in a standard Ovation I/O chassis for easy system integration.
