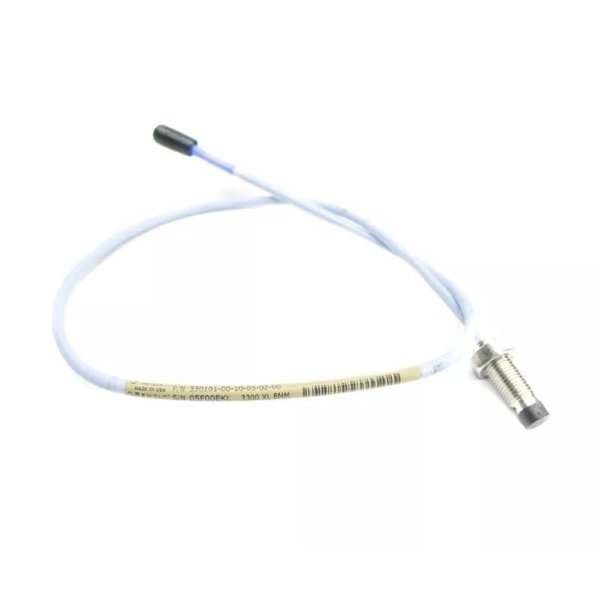

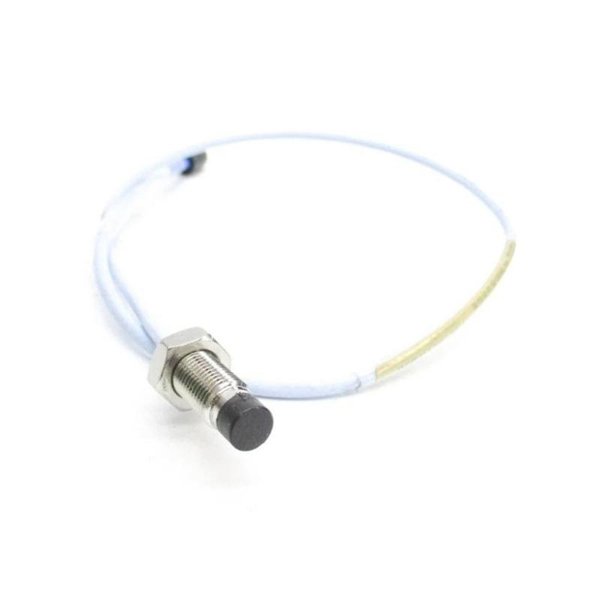

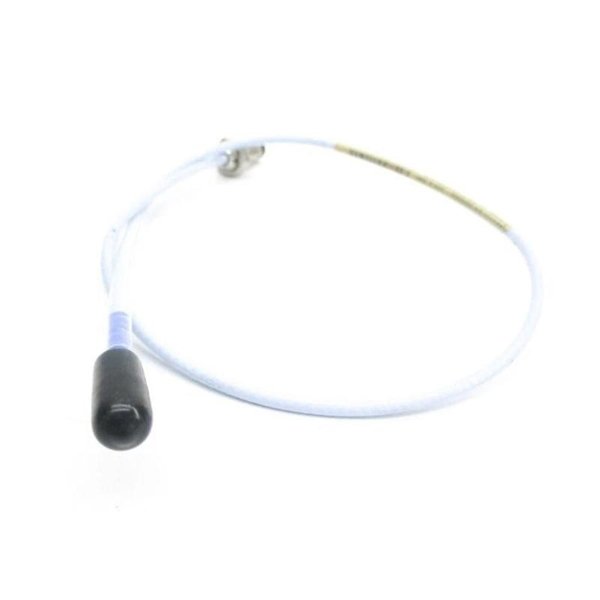

The Bently Nevada 330101-00-20-10-11-R0 is part of the 3300 XL 8mm Proximity Probe series, designed for non-contact measurement of shaft displacement and vibration in rotating machinery. It operates as a critical component of the 3300 XL system, which includes probes, extension cables, and Proximitor sensors. This model delivers high precision, mechanical stability, and compliance with API 670 standards, making it widely used in turbines, compressors, and pumps.

Technical Specifications

Applications

• Shaft vibration and displacement monitoring in turbines, compressors, and pumps

• Non-contact position measurement in rotating machinery

• Critical machine protection and condition monitoring systems

• High-temperature industrial environments requiring robust measurement reliability

Advantages

• High Accuracy: API 670 compliant for precision shaft monitoring

• Durability: TipLoc™ and CableLoc™ designs ensure probe stability and cable retention

• Environmental Resistance: Wide temperature operating range and rugged construction

• Secure Connections: ClickLoc™ connectors prevent accidental loosening

• System Interchangeability: Fully compatible across the 3300 XL series for simplified maintenance

• Leak Protection: Optional FluidLoc® design for applications in oil and fluid environments

FAQ

Q1: What is the measurement range of the 3300 XL 8mm probe?

A1: The standard linear measurement range is 2 mm (80 mils), providing accurate shaft displacement readings.

Q2: Can this probe operate continuously in high-temperature environments?

A2: Yes, it is rated for –51 °C to +177 °C, suitable for turbine and compressor applications.

Q3: Is the probe interchangeable with other 3300 XL series components?

A3: Yes, it is fully interchangeable with 3300 XL extension cables and Proximitor sensors.

Q4: Does this model comply with industrial standards?

A4: It meets API 670 (4th Edition) requirements for mechanical configuration and performance.

Q5: What type of connector does it use?

A5: It uses a gold-plated ClickLoc™ connector, which ensures secure, vibration-resistant connections.

Q6: How is cable retention ensured?

A6: The CableLoc™ system provides strong mechanical retention to prevent cable pullout.

Q7: What materials are used for durability?

A7: PPS tip material, stainless steel case, and FEP insulated cable ensure resistance to harsh environments.

Q8: Is it suitable for fluid-exposed environments?

A8: Yes, with the optional FluidLoc® feature, the probe prevents fluid leakage along the cable.

Q9: Can it be used with older 3300 systems?

A9: Yes, the 3300 XL series is backward compatible with previous 3300 series components.

Q10: What industries commonly use this probe?

A10: Power generation, oil & gas, petrochemical, and heavy machinery industries.
