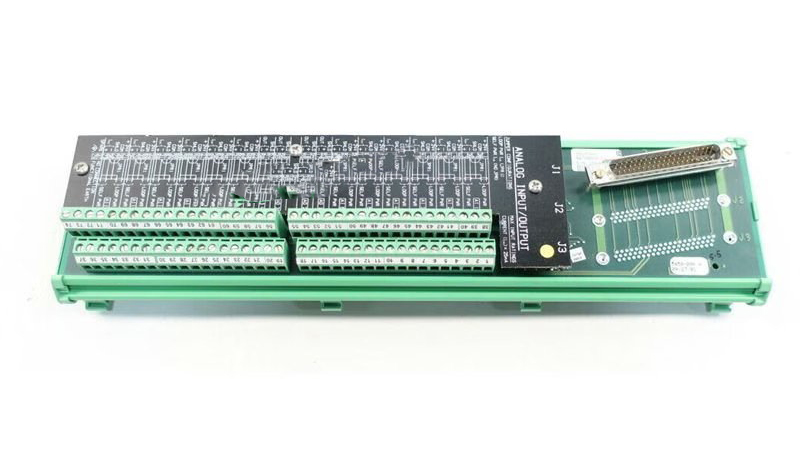

Woodward 5501-376 Analog Input/Output Module
Manufacturer: Woodward
Product Number: 5501-376
Category: Analog High Density Simplex I/O Module
Number of Channels: 6 channels per module
System Compatibility: LINKnet control system for GTC200–2 Shaft GT, Dual Fuel applications
Network Architecture: Each network consists of one LINKnet controller module channel and multiple I/O modules
Supported I/O Types in Family: Thermocouple, RTD, 4-20 mA analog input, 4-20 mA analog output, discrete input, relay output
Mounting: DIN rail mount in plastic field termination module package
Installation Locations: Control cabinet or near prime mover (within temperature/vibration specs)
Hot Replacement: Supports hot-replacement of faulty nodes
Dimensions: 20.3 cm × 2.5 cm × 22.9 cm
Weight: 0.5 kg
Application: Turbine control, prime mover monitoring, industrial automation
Product Description
The Woodward 5501-376 is an Analog Input/Output Module designed for industrial control systems. It processes analog signals with high precision. The module supports Modbus RTU for easy communication. Additionally, it withstands harsh environments with an IP67 enclosure rating. It operates on 12 to 36 VDC power and mounts conveniently on a DIN rail. This module updates signals every 5 milliseconds, ensuring fast response times. It accepts speed sensor inputs up to 25,000 Hz with excellent accuracy.
Technical Specifications
- Model: 5501-376
- Manufacturer: Woodward
- Type: Analog Input/Output Module
- Operating Voltage: 12 to 36 VDC
- Current Range: -20 mA to +20 mA
- Input Impedance: High
- Output Type: 4-20 mA, 0-10 V
- Communication Protocol: Modbus RTU
- Temperature Range: -40°C to +85°C
- Enclosure Rating: IP67
- Power Consumption: Less than 1.5 W
- Mounting: DIN Rail
- Update Time: 5 ms
- Speed Sensor Input Frequency: 100 to 25,000 Hz
- Speed Sensor Input Amplitude: 1 to 25 Vrms
- Speed Sensor Input Impedance: 2000 Ohms
- Isolation Voltage: 500 Vrms (for speed sensor inputs)
- Resolution: Minimum 12 bits
- Accuracy: 0.03% full scale (software calibrated)
- Dimensions: 20.3 cm x 2.5 cm x 22.9 cm
- Weight: 1.10 lbs
