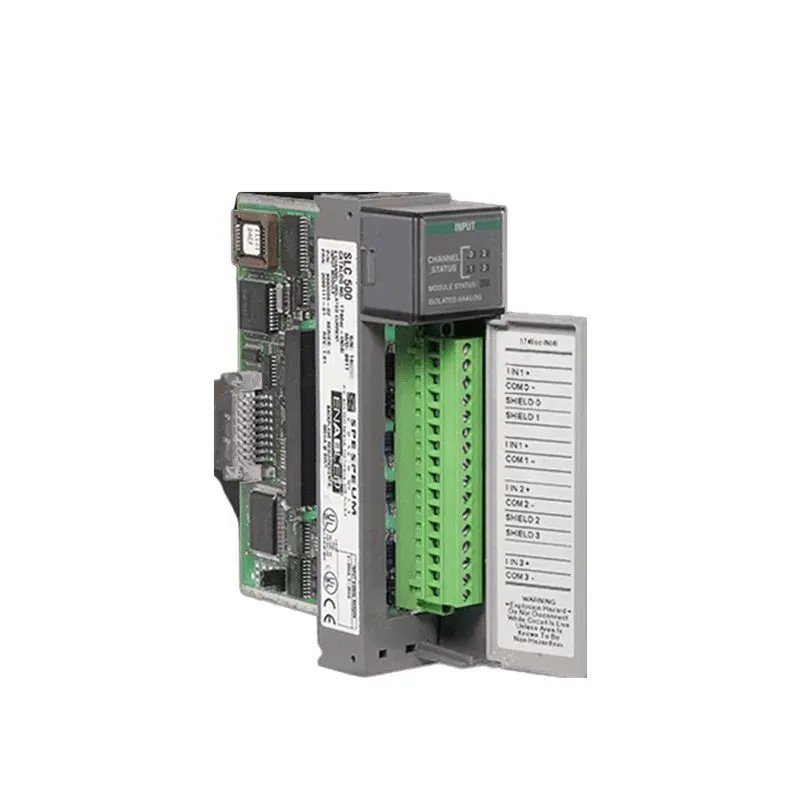

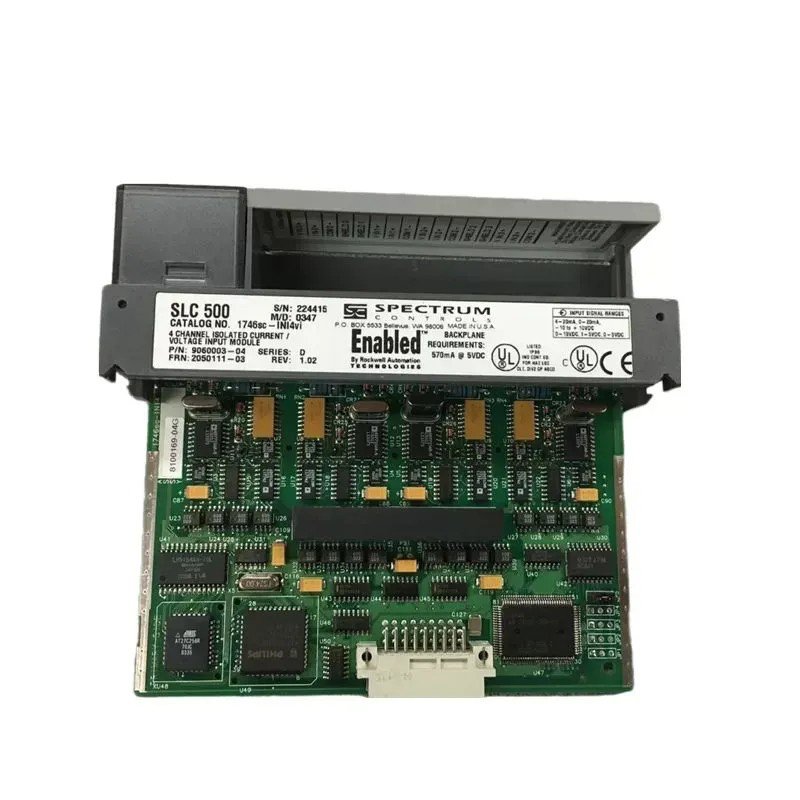

The Allen-Bradley 1746SC-INI4VI is an analog input module designed for the SLC 500 platform. It ensures reliable and precise measurement for industrial processes. This module is ideal for monitoring and controlling analog signals such as temperature, pressure, flow rate, and more.

Key Features

• 4-channel isolated analog input: Measures four analog signals simultaneously, enhancing flexibility and efficiency.
• Configurable input ranges: Adapts to various sensors and transducers for different applications.
• High resolution: Delivers accurate measurements for precise control.
• Isolation: Protects against electrical noise and ground loops for reliable measurements.
• Compact size: Fits easily into tight spaces for versatile installation.

Technical Specifications

• Input type: Analog current/voltage
• Number of channels: 4
• Input ranges: Configurable
• Resolution: High
• Isolation: Yes
• Power supply: 24 VDC
• Mounting: DIN rail

Applications

The 1746SC-INI4VI module is used in various industries, including:

• Manufacturing: Monitors process variables like temperature, pressure, and flow rate.
• Packaging: Controls filling levels and ensures product quality.
• Environmental monitoring: Measures parameters such as humidity and air quality.
• Building automation: Manages HVAC systems and energy consumption.

Additional Information

• Compatibility: Designed specifically for the Allen-Bradley SLC 500 platform.
• Documentation: Comprehensive technical documents are available for installation, configuration, and troubleshooting.
• Replacement parts: Accessories and replacement parts are readily available for ongoing maintenance.

Benefits

• Improved process control: Accurate measurements enable precise industrial process management.
• Enhanced reliability: The isolated design and high-quality components ensure dependable performance.
• Flexibility: Configurable input ranges accommodate a wide range of applications.
• Ease of use: Simple installation and configuration streamline setup and operation.
