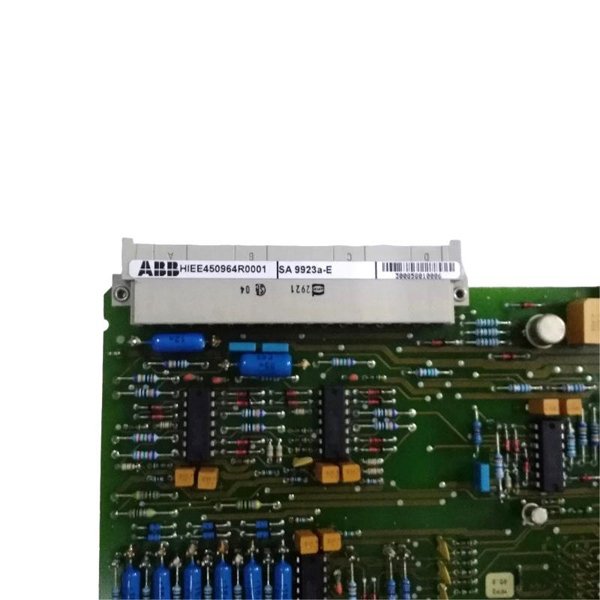

The ABB SA 9923A-E HIEE450964R0001 High Voltage Control Board is an advanced power electronics module designed to provide precise control, protection, and monitoring for high-voltage systems in industrial automation and power distribution networks. Built with ABB’s engineering expertise, it delivers reliable voltage regulation, fault detection, and seamless integration with control systems for demanding applications.

This control board is a critical part of high-voltage drive systems, substations, and industrial motor control solutions. It offers robust insulation, fast response times, and built-in diagnostics to ensure safe and efficient operation in harsh industrial environments.

Product Specifications

Product Applications

• High Voltage Drive Systems: Provides precise control and protection for large motors and variable speed drives.

• Power Distribution Automation: Integrates into switchgear and substation control panels.

• Industrial Process Plants: Ensures stable voltage regulation in refineries, chemical plants, and heavy industries.

• Renewable Energy Systems: Supports high-voltage solar and wind power inverters.

• Safety Instrumentation: Monitors and protects high-voltage circuits to avoid catastrophic failures.

• Testing & Diagnostics: Used in high-voltage test benches for monitoring and fault detection.

Product Advantages

• High Insulation Strength: Designed to handle high-voltage environments with superior dielectric performance.

• Fast Response Time: Provides real-time monitoring and protection against voltage fluctuations.

• Comprehensive Diagnostics: Integrated fault detection and self-test routines enhance reliability.

• Robust Protection: Built-in surge suppression and thermal management prevent damage under abnormal conditions.

• Seamless Integration: Fully compatible with ABB automation platforms and fieldbus systems.

• Compact & Modular Design: Space-efficient for easy integration into control cabinets.

• Industrial-Grade Durability: Designed for 24/7 operation in demanding industrial environments.

• Low Power Consumption: Energy-efficient design minimizes operational costs.

FAQ

1. What is the maximum voltage rating of the SA 9923A-E control board?

   It is designed to manage control circuits for systems up to 6.6 kV.

2. Does the board provide galvanic isolation between control and power circuits?

   Yes, it includes full galvanic isolation to ensure safe operation.

3. What type of diagnostics are available on this board?

   It includes overvoltage detection, short circuit monitoring, and built-in self-tests.

4. Can this control board interface with ABB high-voltage drive systems?

   Yes, it is fully compatible with ABB high-voltage drives and motor controllers.

5. What is the typical response time for voltage fluctuation detection?

   Less than 10 ms under normal operating conditions.

6. Is this board designed for harsh industrial environments?

   Yes, it meets industrial-grade standards for temperature, vibration, and humidity.

7. What communication protocols are supported?

   It supports ABB proprietary communication and standard industrial fieldbus interfaces.

8. Does the board include surge and thermal protection?

   Yes, integrated surge suppression and thermal management are standard features.

9. Is the module hot-swappable?

   No, it requires power-down before replacement for safety.

10. What type of mounting options are available?

    It can be mounted in racks or control cabinets using standard ABB hardware.
