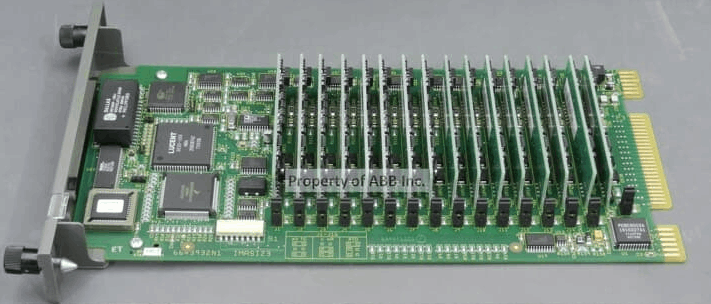

The ABB product with ID IMASI23 is a 16-channel universal analog input slave module. It falls under the category of I/O (Input/Output) modules and is designed to be part of the Symphony Harmony INFI 90 control system. This module allows for the integration of analog input signals into the control system for monitoring and processing.

General Information

• Product ID: IMASI23
• ABB Type Designation: IMASI23
• Catalog Description: 16 ch universal analog input slave mod
• Long Description: 16 ch universal analog input slave mod
• Analog input channels: 16
• Thermocouples: Type B, E, J, K, L, N (14 AWG), N (28 AWG), R, S, T, U
• 3-wire RTD: Chinese type E and Chinese type S
• Millivolt: 100 mV to 10 V
• High level: 4 to 20 mA
• Current: 0 to 20 mA
• Input impedance: 200 kΩ
• A-to-D resolution: 16 bits
• Conversion time: 100 ms

Additional Information

• Product Type: I-O_Module

Ordering

• HS Code: 853890 – Parts suitable for use solely or principally with the apparatus of heading 85.35, 85.36, or 85.37.- Other
• Customs Tariff Number: 85389081

Dimensions

• Product Net Depth / Length: 73.66 mm
• Product Net Height: 360.68 mm
• Product Net Width: 269.24 mm
• Product Net Weight: 0 kg

Environmental

• WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
• Number of Batteries: 0

Please note that this information provides an overview of the ABB IMASI23 analog input slave module, including its specifications and categorization within ABB’s product ecosystem.

FAQs

Q: What are the key features of the ABB IMASI23 module?

A: The IMASI23 module offers high precision, 16-channel inputs, a wide input range, fast data acquisition, modular design, advanced diagnostics, and compatibility with automation platforms.

Q: What applications is the IMASI23 module suitable for?

A: The module is suitable for process control, energy management, building automation, water and wastewater monitoring, and the food and beverage industry.

Q: What are the technical specifications of the IMASI23 module?

A: The module has 16 analog input channels, supports various input ranges, has a 16-bit resolution, offers a fast data update rate, and communicates using standard industrial protocols.

Q: What benefits does the IMASI23 module provide?

A: The module improves efficiency, enhances productivity, saves costs, offers flexibility, and ensures compatibility with existing automation systems.

Q: Why should I choose the ABB IMASI23 module for my industrial automation needs?

A: The IMASI23 module provides unparalleled performance, versatility, and precision, empowering your automation systems for optimal control and monitoring in various applications.
