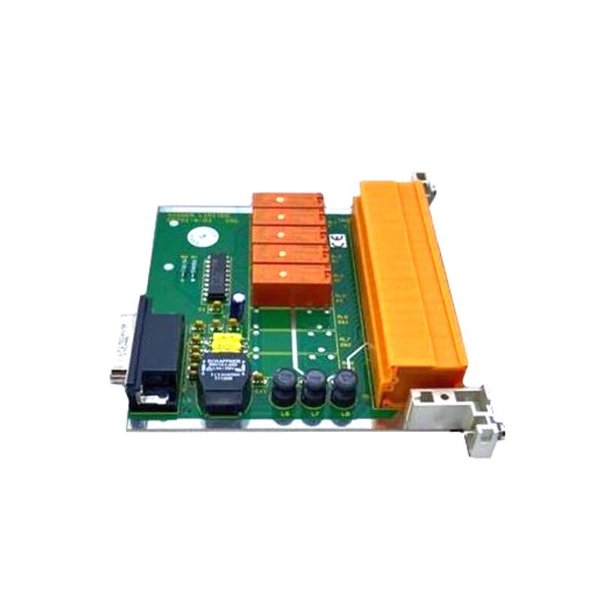

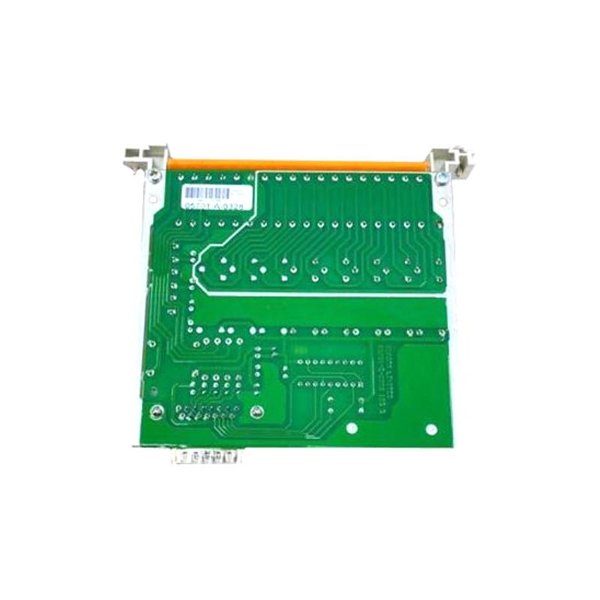

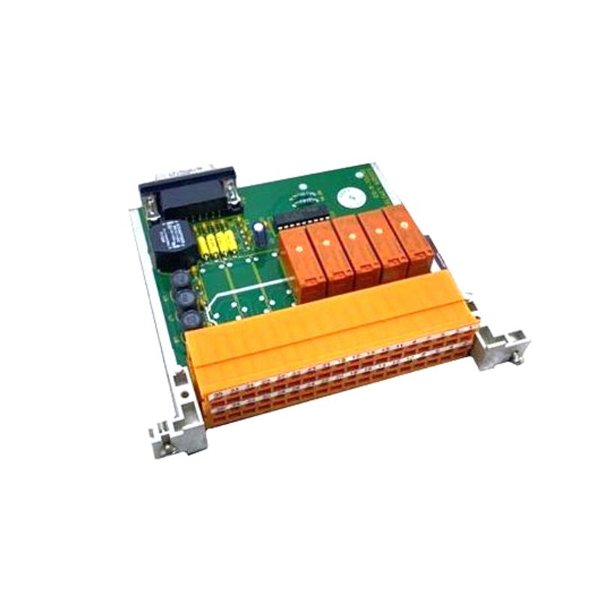

The Honeywell 05701-A-0328 Single Channel Control Card is a highly specialized and reliable component used in industrial automation systems. This control card is designed to provide efficient and accurate control over single-channel processes in various industrial applications. As part of Honeywell’s extensive portfolio of control systems, this unit offers a range of features designed to enhance operational performance, reduce downtime, and ensure safety in critical operations.

Honeywell is renowned for its advanced technology, and the 05701-A-0328 control card upholds that legacy with exceptional functionality and robustness. This card is typically used in environments that require precise monitoring and control of a single signal channel, making it ideal for systems where high precision and reliability are paramount.

Product Specifications

The following table provides detailed specifications for the Honeywell 05701-A-0328 Single Channel Control Card:

Applications

The Honeywell 05701-A-0328 control card is designed for a variety of industrial applications where precise control and monitoring are essential. Some common applications include:

1. Process Control Systems – Used in process automation for industries like chemicals, oil, and gas.

2. Temperature and Pressure Monitoring – Used in monitoring systems for HVAC or industrial heating/cooling systems.

3. Flow Measurement Systems – Ideal for applications that require accurate flow control and measurement, such as in water treatment plants.

4. Machine Safety – In safety-critical applications, this control card ensures fail-safe operations by monitoring machine states and triggering appropriate responses in case of abnormalities.

5. Energy Management Systems – Integral for controlling and optimizing energy consumption across industrial and manufacturing facilities.

6. Building Automation – Used in controlling the climate, lighting, and other systems in smart buildings.

Advantages

1. High Precision and Accuracy

   The Honeywell 05701-A-0328 ensures exceptional precision and repeatability, making it ideal for use in applications where accuracy is critical.

2. Wide Temperature Range

   It operates within a broad temperature range of -40°C to 85°C, making it suitable for use in harsh environments or extreme temperature conditions.

3. Compact and Space-Saving

   With its small footprint (170 x 25 x 112 mm), the control card is easy to integrate into existing control panels or systems with limited space.

4. Reliable and Robust Design

   Built with industrial-grade materials and robust design, this control card can withstand vibrations, shocks, and harsh operational conditions.

5. Energy Efficient

   The power consumption of just 3.5 watts ensures minimal energy use while providing stable and continuous control.

6. DIN Rail Mountable

   Its DIN rail mounting feature simplifies installation and maintenance, reducing setup time and ensuring easy integration into existing control systems.

7. Wide Compatibility

   The card supports both analog and digital signals, offering flexible integration with different types of input and output systems.

FAQ

1. What is the operating voltage for the Honeywell 05701-A-0328?

   The card operates at 24 VDC.

2. Can the 05701-A-0328 control card be used in extreme temperature conditions?

   Yes, it has an operating temperature range from -40°C to 85°C, making it suitable for extreme conditions.

3. What types of inputs are supported by the card?

   The card supports both analog and digital signal inputs, including voltage and current signals.

4. How does the Honeywell 05701-A-0328 mount?

   The control card is designed for DIN rail mounting, making installation straightforward.

5. What is the weight of the Honeywell 05701-A-0328?

   The card weighs 0.165 kg.

6. What is the signal range for this control card?

   The card can handle signals ranging from 0 to 10V or 4 to 20mA.

7. Is the Honeywell 05701-A-0328 compliant with industry standards?

   Yes, it complies with CE, UL, and RoHS standards.

8. What kind of applications is this control card best suited for?

   It is ideal for process control, temperature and pressure monitoring, machine safety, and energy management systems.

9. Can this control card be used in high-vibration environments?

   Yes, it is designed to withstand industrial-grade environments, including vibrations and shocks.

10. What is the power consumption of the 05701-A-0328 control card?

    The power consumption is 3.5 watts, ensuring energy efficiency.
