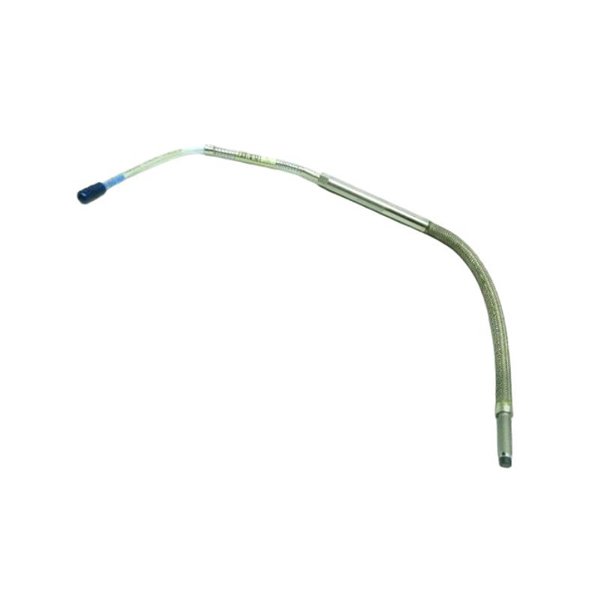

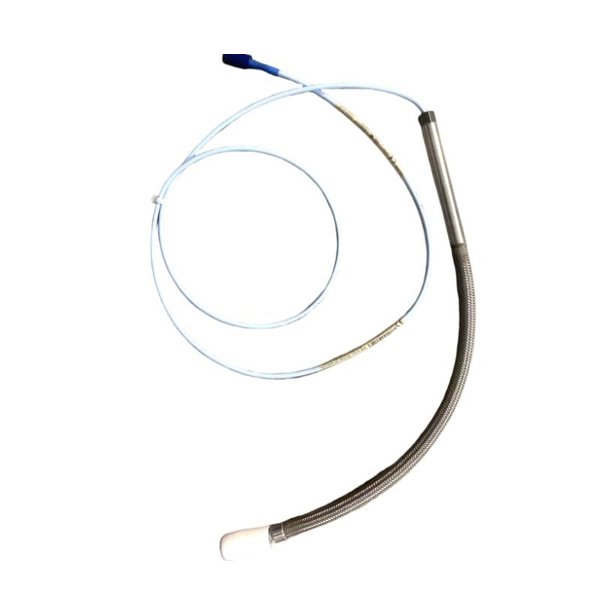

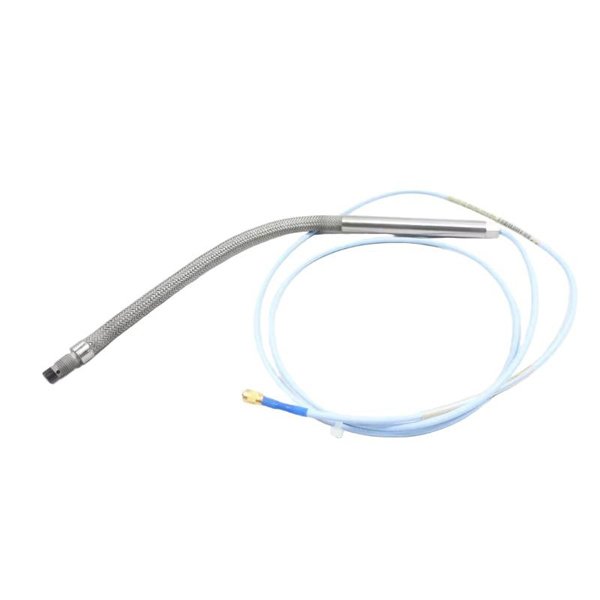

The Bently Nevada 129715-064-028-05-05 3300 XL Proximity Sensor is an advanced sensor designed to provide accurate and reliable measurements for industrial machinery monitoring. As part of the renowned 3300 XL series, this proximity sensor offers precision in capturing the displacement or position of rotating equipment such as motors, turbines, and compressors. The sensor provides critical data for machinery condition monitoring, helping industries prevent failures, extend equipment life, and enhance overall system performance.

The 3300 XL series sensors are built to withstand harsh industrial environments, making them suitable for applications across a wide range of sectors, including power generation, oil & gas, petrochemical, and manufacturing. With robust construction and advanced sensing technology, the Bently Nevada 3300 XL Proximity Sensor is essential for predictive maintenance and machine health diagnostics.

Product Parameters

Product Applications

The Bently Nevada 129715-064-028-05-05 3300 XL Proximity Sensor is widely used in industries where precision monitoring of rotating machinery is crucial. Some of the key applications include:

• Turbine Monitoring: It is essential for monitoring steam and gas turbines, detecting shaft displacement and movement.

• Compressor Monitoring: The sensor plays a significant role in monitoring compressor health, detecting vibrations and displacement that may indicate early signs of failure.

• Electric Motor Monitoring: Used in electric motor monitoring systems to measure displacement and position, ensuring optimal motor performance and identifying maintenance needs.

• Generator Monitoring: It helps in monitoring the displacement of generator shafts, ensuring efficient and safe operation.

• Pump Monitoring: Proximity sensors are used to detect any issues in pump systems, such as shaft misalignment or wear.

• Industrial Rotating Equipment: Used in a broad range of rotating equipment, including fans, conveyors, and blowers, providing critical data for predictive maintenance programs.

Advantages of the Product

1. High Precision: The 3300 XL series offers highly accurate displacement measurements with a wide sensing range, ensuring that even small changes in machine movement are detected.

2. Durability: Built to withstand harsh industrial environments, including extreme temperatures, vibration, and shock, the 3300 XL Proximity Sensor is ideal for critical applications.

3. Easy Integration: This sensor is designed to integrate easily with existing monitoring systems, offering a simple solution for machine health diagnostics without extensive reconfiguration.

4. Cost-Effective: The sensor helps in predictive maintenance, reducing downtime, maintenance costs, and preventing costly machine failures.

5. Long Service Life: Thanks to its rugged design and high-quality materials, the sensor has a long service life, providing long-term reliability and stability.

6. Wide Range of Applications: The 3300 XL Proximity Sensor can be used across various industries, making it a versatile solution for machinery condition monitoring.

7. Advanced Technology: The sensor is equipped with the latest technology in displacement measurement, ensuring high performance and data accuracy for real-time monitoring and diagnostics.

FAQs

1. What is the sensing range of the Bently Nevada 3300 XL Proximity Sensor?

   • The Bently Nevada 3300 XL Proximity Sensor has a sensing range of up to 4.5 inches (11.43 cm).

2. What is the output signal of the 3300 XL Proximity Sensor?

   • The sensor outputs a 4-20 mA analog signal, which can be easily integrated into existing monitoring systems.

3. Can the 3300 XL Proximity Sensor operate in extreme temperatures?

   • Yes, the sensor is designed to operate in temperatures ranging from -40°C to +85°C, making it suitable for harsh environments.

4. What is the power supply requirement for the sensor?

   • The sensor operates on a 18-30 V DC power supply.

5. How resistant is the 3300 XL Proximity Sensor to vibrations?

   • The sensor can withstand vibrations of up to 50 g (20 to 2000 Hz), ensuring reliable operation in high-vibration environments.

6. What is the shock resistance of the sensor?

   • The sensor is shock-resistant up to 100 g (1 ms), making it suitable for applications where equipment may experience sudden shocks.

7. What industries benefit from using the Bently Nevada 3300 XL Proximity Sensor?

   • The sensor is ideal for industries such as power generation, oil & gas, petrochemical, and manufacturing, especially for monitoring rotating machinery.

8. How does the 3300 XL Proximity Sensor help with predictive maintenance?

   • By accurately measuring displacement and vibrations, the sensor helps identify early signs of mechanical issues, allowing for proactive maintenance and preventing equipment failures.

9. What mounting options are available for the 3300 XL Proximity Sensor?

   • The sensor can be mounted using threaded or bolt-on methods, providing flexibility for different installation types.

10. How does the Bently Nevada 3300 XL Proximity Sensor integrate with existing monitoring systems?

    • The 3300 XL Proximity Sensor outputs a 4-20 mA signal, which can be easily integrated with existing machine health monitoring systems, providing real-time data for analysis.
