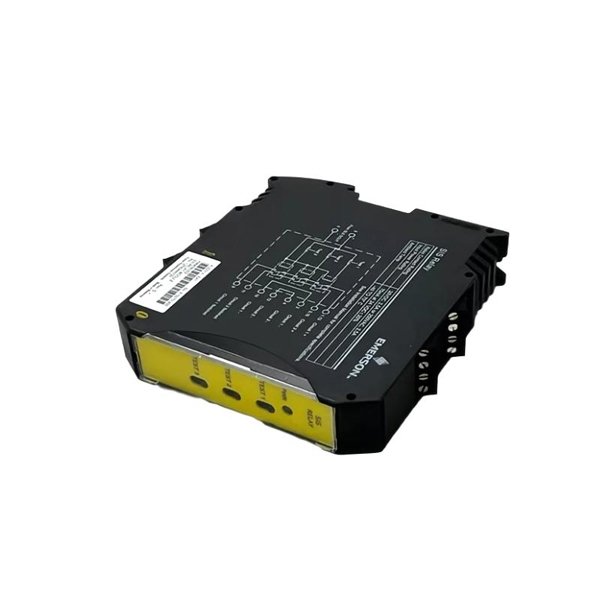

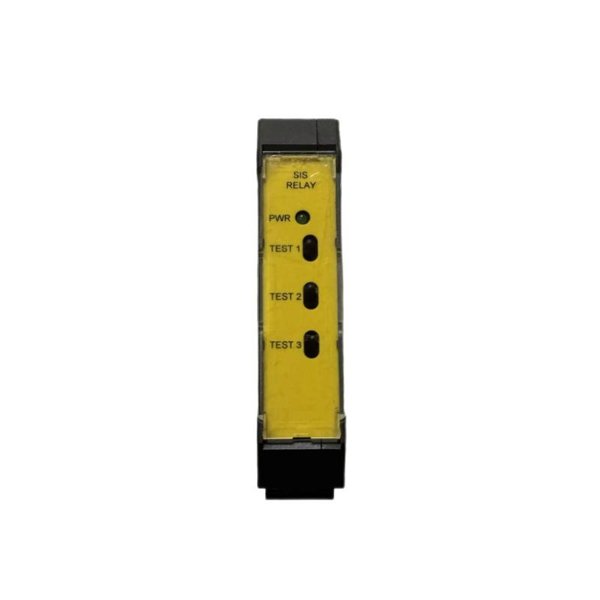

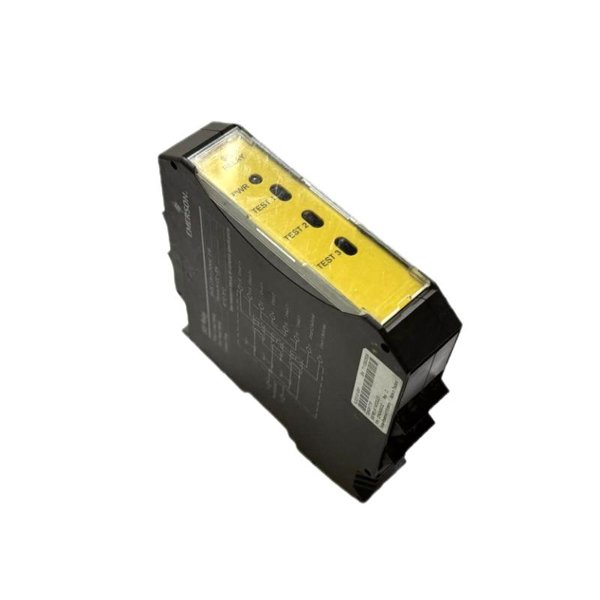

The Emerson KJ2231X1-EA1 SIS (Safety Instrumented System) Relay Module is a critical component designed to provide secure and reliable operation in industrial safety systems. This module is typically used in the process automation industry to monitor and control safety-critical processes, ensuring that safety functions such as emergency shutdowns, pressure relief, and hazardous material detection are properly executed. It is fully compliant with safety standards, such as IEC 61508 and IEC 61511, ensuring its performance in high-risk applications.

This relay module plays an essential role in helping operators and control systems maintain safety and operational efficiency, making it ideal for applications in chemical plants, oil refineries, and other high-hazard environments where system failures can result in severe consequences.

Product Parameters

Applications

• Chemical Plants: Used to monitor critical safety parameters like pressure, temperature, and flow to ensure the safety of plant operations.

• Oil Refineries: Protects equipment and personnel by controlling emergency shutdown sequences in case of an unsafe condition.

• Power Generation Facilities: Employed in systems that control emergency shutdowns, fire suppression systems, and critical machine protection.

• Pharmaceutical Manufacturing: Helps in safeguarding automated production processes to ensure product safety and compliance with regulatory standards.

Advantages

• Compliance with Safety Standards: Fully compliant with IEC 61508 and IEC 61511, ensuring its use in safety-critical applications.

• High Reliability: Built with robust components designed to work in demanding environments, providing consistent and dependable performance.

• Easy Integration: Compatible with various control systems, making it easy to integrate into existing safety infrastructure.

• Compact Design: The small, DIN rail-mountable form factor allows easy installation in control panels and electrical cabinets with limited space.

• Wide Temperature Range: With an operational range from -40°C to 70°C, it is capable of handling extreme industrial conditions.

• Versatile Relay Configurations: Can be configured to meet a wide range of safety control requirements with both normally open and normally closed contacts.

FAQ

1. What is the purpose of the KJ2231X1-EA1 SIS Relay Module?

   • The KJ2231X1-EA1 module is used in Safety Instrumented Systems (SIS) to ensure that safety functions, such as emergency shutdowns and hazard detection, are activated during critical situations.

2. What industries typically use this relay module?

   • This module is widely used in chemical plants, oil refineries, power generation facilities, and pharmaceutical manufacturing plants.

3. What are the main safety standards this module complies with?

   • The KJ2231X1-EA1 complies with IEC 61508 and IEC 61511, which are international standards for functional safety in industrial systems.

4. What are the relay contact ratings for this product?

   • The relay contact rating is 2A, 30V DC (Max.).

5. What is the operating temperature range for the module?

   • The operating temperature range is -40°C to 70°C, making it suitable for harsh industrial environments.

6. How is this module mounted?

   • It is mounted using a DIN rail, which allows for easy installation in electrical control panels.

7. What is the power consumption of the KJ2231X1-EA1 module?

   • The power consumption is 2.5 W.

8. Can this module be integrated into existing control systems?

   • Yes, the KJ2231X1-EA1 is designed for easy integration into a variety of safety and control systems.

9. Is the module capable of handling both normally open and normally closed contacts?

   • Yes, it offers both normally open and normally closed contact configurations for versatility in safety system design.

10. What is the weight of the KJ2231X1-EA1 SIS Relay Module?

    • The weight of the module is 0.5 kg.
