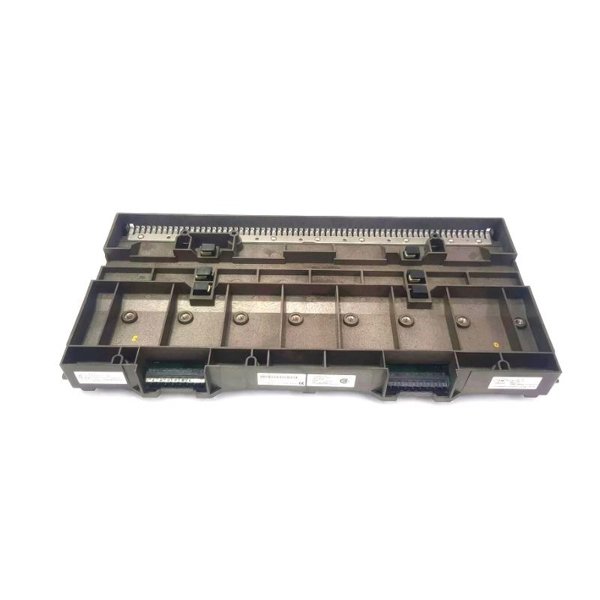

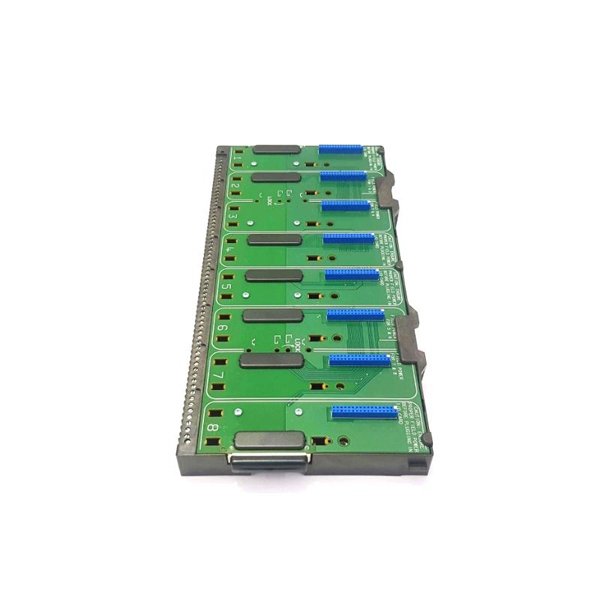

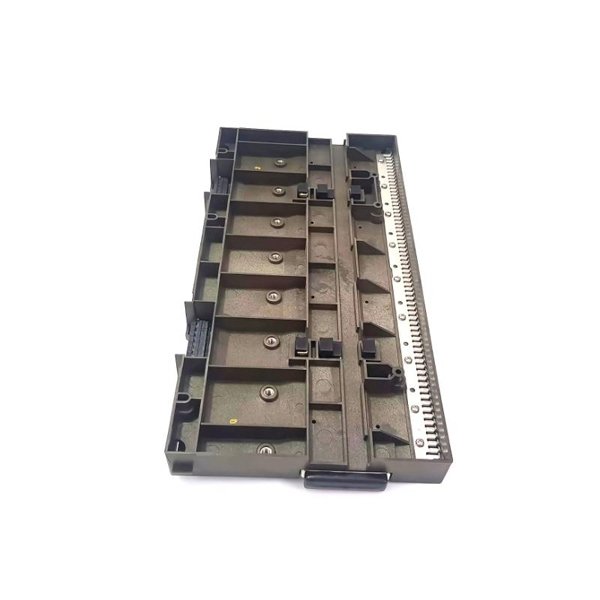

The Emerson KJ4001X1-BE1 8-Wide I/O Carrier with Shield is a precision-engineered backplane component, designed to house and connect multiple I/O modules in a DeltaV™ distributed control system (DCS). This carrier is an essential part of the Emerson DeltaV Series hardware platform and is commonly used in high-reliability process automation systems. With its 8-slot configuration and integrated shielding, the KJ4001X1-BE1 ensures secure module communication and protects against electromagnetic interference (EMI), making it suitable for use in environments where signal integrity is critical.

Built with robust materials and designed for efficient module installation, this I/O carrier facilitates quick assembly, simplified field wiring, and optimal system scalability. Whether it’s a greenfield project or a system upgrade, the KJ4001X1-BE1 helps industrial users achieve high availability and maintainability with reduced wiring complexity.

Product Parameters

The technical specifications for Emerson KJ4001X1-BE1 are outlined below:

Product Applications

The Emerson KJ4001X1-BE1 is utilized in a wide variety of industrial automation applications. It plays a vital role in connecting field I/O modules and ensuring reliable data exchange with the DeltaV controller. Major applications include:

• Petrochemical Plants: Interfaces with analog/digital I/O modules for monitoring and controlling process variables like pressure, temperature, and flow.

• Power Generation Facilities: Supports control and protection systems by managing I/O signals for generators, turbines, and auxiliary systems.

• Water & Wastewater Treatment Plants: Facilitates I/O integration for pump controls, level sensing, and chemical dosing systems.

• Pharmaceutical Manufacturing: Provides I/O infrastructure for precision batch control, environmental monitoring, and safety systems.

• Oil & Gas Processing: With its shielded design, it is particularly suitable for offshore and onshore platforms where EMI conditions are challenging.

• Pulp & Paper Industry: Supports process automation needs, from raw material handling to paper production and finishing.

Product Advantages

The Emerson KJ4001X1-BE1 offers a range of advantages that enhance system performance and operational efficiency:

1. Integrated Shielding: Built-in EMI protection ensures high signal integrity and minimizes disruptions in harsh industrial environments.

2. High Slot Density: Supports up to 8 I/O modules, reducing the number of carriers required and saving panel space.

3. System Compatibility: Seamlessly integrates with the Emerson DeltaV DCS platform, enabling plug-and-play connectivity.

4. Durability: Constructed using industrial-grade materials that can withstand wide temperature variations and corrosive atmospheres.

5. Ease of Installation: DIN rail or panel mounting options allow for flexible installation based on cabinet design.

6. Simplified Maintenance: Modules can be hot-swapped with minimal system downtime, improving availability.

7. Compact Form Factor: Despite high capacity, the compact size enables use in space-constrained environments.

8. Certified Reliability: Global certifications (ATEX, UL, IECEx) make it ideal for use in regulated industries and hazardous areas.

Frequently Asked Questions (FAQs)

1. What is the purpose of the KJ4001X1-BE1 I/O Carrier?

   • It serves as a backplane to connect up to 8 I/O modules to the Emerson DeltaV system.

2. Is the shield integrated or external?

   • The carrier includes an integrated shield, enhancing EMI protection for connected modules.

3. Can this carrier be mounted on a DIN rail?

   • Yes, it supports DIN rail and panel mounting.

4. Is it hot-swappable?

   • While the carrier itself is static, it allows for hot-swapping of I/O modules connected to it.

5. What systems is it compatible with?

   • It is fully compatible with the Emerson DeltaV DCS platform.

6. What type of modules can it support?

   • It supports analog, digital, HART, and specialty I/O modules designed for DeltaV.

7. Does it support redundancy?

   • Redundancy is achieved at the system level; redundant I/O modules can be used on this carrier.

8. Is it suitable for hazardous environments?

   • Yes, with ATEX and IECEx certifications, it’s suitable for use in hazardous zones.

9. What is the operating temperature range?

   • The unit operates in environments from -40°C to 70°C.

10. How is it powered?

    • Power is provided via the system’s dedicated I/O power supply, not directly to the carrier.
