Manufacturer:Honeywell
Product Number:MU-PLAM02 51304362-100
Product Type:Low Level Analog Input Multiplexer Processor
Origin:USA
Dimensions:28 × 378 × 278 mm
Weight:0.62 kg
Views:48
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

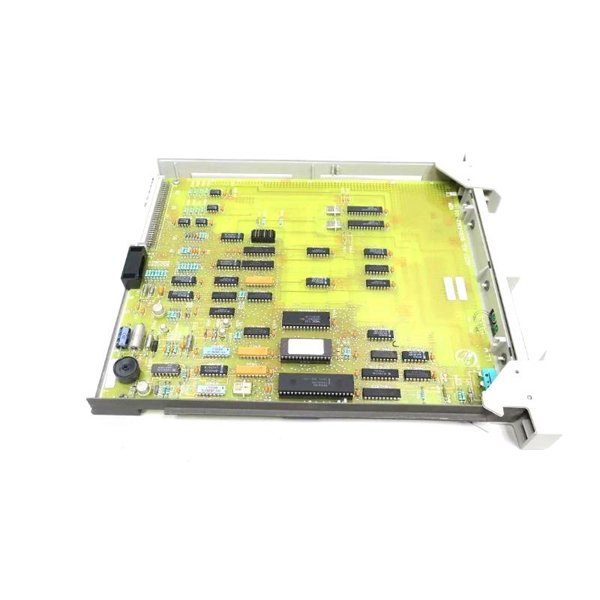

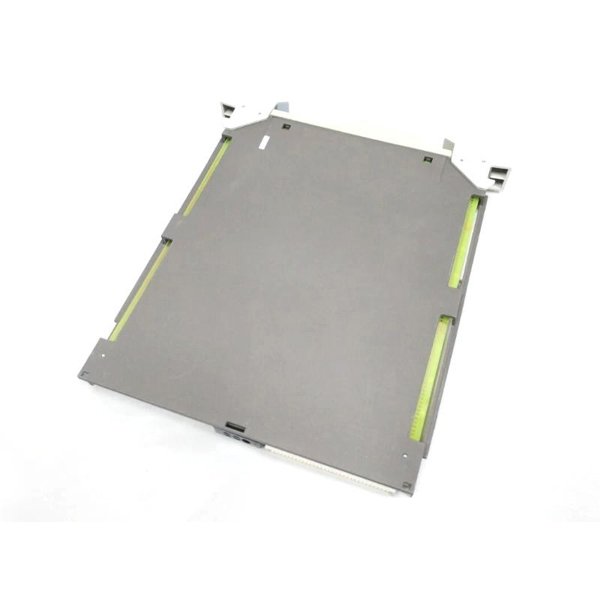

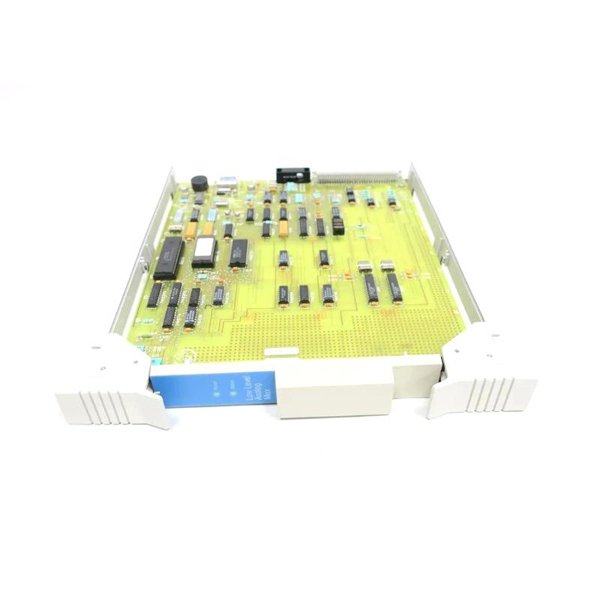

The Honeywell MU-PLAM02 51304362-100 is a 32-channel low-level analog input multiplexer processor designed for cost-effective thermocouple, RTD, and linear millivolt signal acquisition. It integrates with Honeywell’s TPS (TotalPlant Solution) system, providing scalable and reliable analog input functionality for industrial process control.
| Parameter | Specification |
|---|---|
| Model | MU-PLAM02 |
| Input Type | Thermocouple, RTD, Linear mV |
| Input Channels | 32 isolated |
| A/D Resolution | 14 bits |
| Input Scan Rate | 32 samples/sec (1 per channel/sec) |
| CMV (DC-60Hz) | ±250 VDC or 250 VAC Peak |
| Dielectric Strength | ±1500 VDC or 1500 VAC RMS |
| Crosstalk | 120 dB |
| Input Impedance | ≥2 MΩ @ 100 mV |
| Voltage Input Range | 0–100 mV |
| Thermocouple Types Supported | J, K, E, T, B, S, R, RP |
| RTD Types Supported | Pt100 (DIN/JIS), Ni120, Cu10 |
| RTD Range | -200 to 850°C (Pt100) |
| Reference Junction Accuracy | ±1.0°C at 23.5 ±2°C |
| Hardware Accuracy | ±40 µV or ±160 mΩ |
| Software Accuracy | ±0.1°C typical, ±0.5°C max |
| Temperature Stability | 20–40 ppm/°C |
| Synchronization | 50/60 Hz configurable |
| Dimensions | 28 × 378 × 278 mm |
| Weight | 0.62 kg |
Industrial process environments requiring multiple low-level analog inputs:
Temperature monitoring using thermocouples or RTDs
Low-voltage instrumentation signal acquisition
Multipoint data acquisition in distributed control systems
Power and utility plants
Chemical and refining operations
Pharmaceutical and food processing lines
Why choose MU-PLAM02:
High-density input: 32 channels in one module
Galvanic isolation on all inputs for safety and signal integrity
Versatile signal compatibility (TC, RTD, mV)
Accurate and stable with software temperature compensation
Compatible with Honeywell TPS PM/APM/HPM/EHPM systems
Economical alternative to multiple low-level AI cards
Q1: What is the maximum number of input channels supported?
A1: The MU-PLAM02 supports 32 isolated analog input channels.
Q2: Can it read both thermocouple and RTD signals?
A2: Yes, it supports J, K, E, T, B, S, R, RP thermocouples and Pt100, Ni120, Cu10 RTDs.
Q3: How often is each channel scanned?
A3: Each input channel is scanned once per second.
Q4: What is the A/D conversion resolution?
A4: It offers a 14-bit A/D resolution.
Q5: Does it offer galvanic isolation?
A5: Yes, each input is galvanically isolated for improved noise immunity and safety.
Q6: Is it suitable for harsh environments?
A6: It can be used in industrial environments but requires proper cabinet protection for harsh conditions.
Q7: What is the reference junction accuracy?
A7: ±1.0°C at 23.5 ±2°C.
Q8: Can it detect open thermocouples?
A8: Yes, open thermocouple detection is supported every 30 seconds.
Q9: What voltage range can it measure?
A9: It supports linear mV signals from 0 to 100 mV.
Q10: Is this module compatible with Honeywell’s EHPM system?
A10: Yes, it’s compatible with PM, APM, HPM, and EHPM systems.
